AtlasIED AS-10ST 10" AS-Series weather-resistant commercial surface-mount subwoofer (Black)

Name: AtlasIED AS-10ST
Brand: AtlasIED
SKU: 978AS10STB
Price: 900.99 USD
Availability: InStock

Item # 978AS10STB

Add some musical, satisfying bass thump to your outdoor space with this durable, weather-resistant subwoofer.

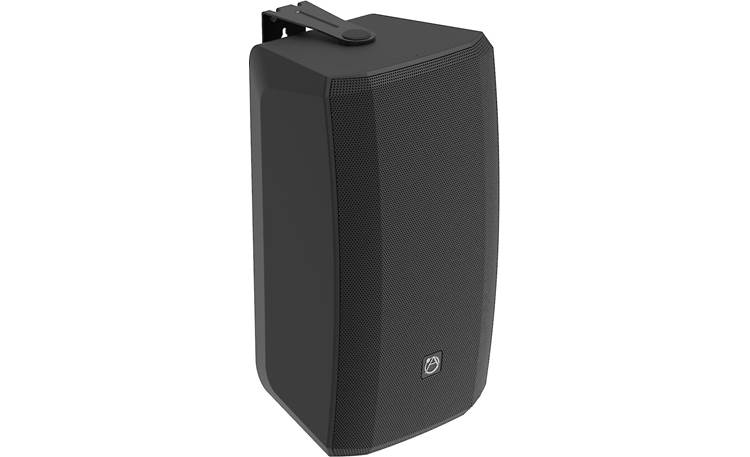

Front

1/6

2/6

Only at Crutchfield

3/6

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

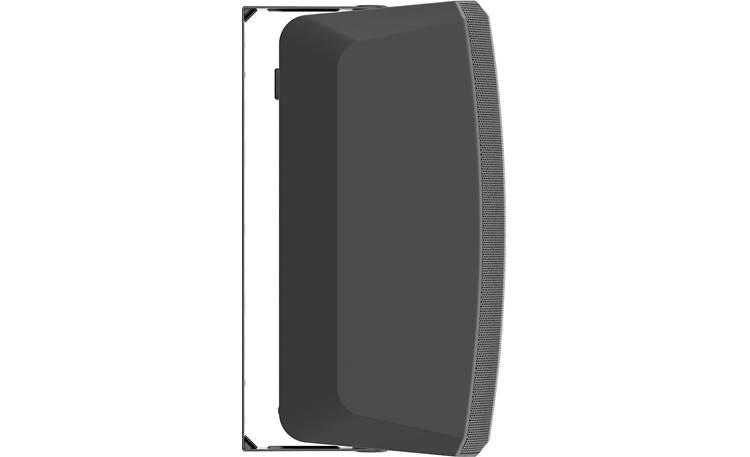

Left side view with mounting bracket

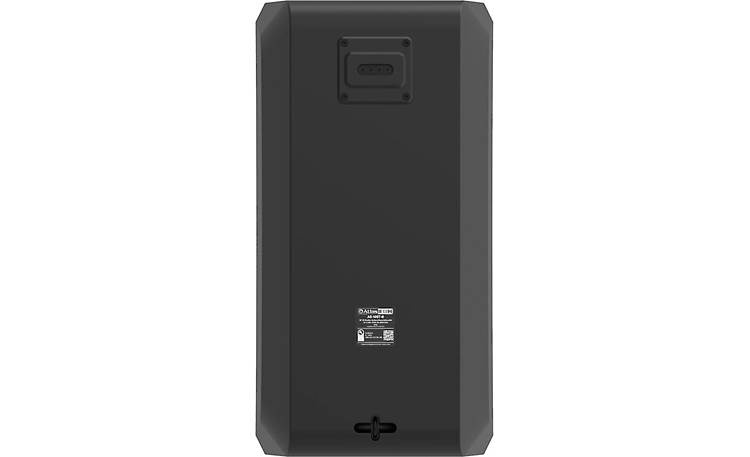

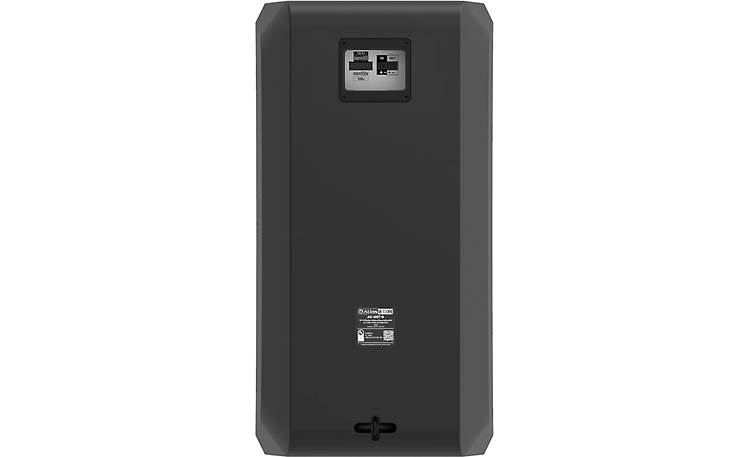

Back

AtlasIED AS-10ST Left side view with mounting bracket

Add some musical, satisfying bass thump to your outdoor space with this durable, weather-resistant subwoofer.

Item # 978AS10STB

Ships free from manufacturer to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

$900.99 each

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-315-2758

by Crutchfield's Woody Sherman

DIY and save — with our help

We help businesses across the country install their own commercial A/V systems without involving costly third-party installers. Ordering is easy, and you get FREE lifetime support.

Get a free system design

1-800-315-2758

Submit a request

Bass response that doesn't get lost in the great outdoors

A great subwoofer like the AtlasIED AS-10ST can make the difference between solid outdoor sound and immersive, dynamic music for your outdoor dining and recreational spaces.

This sub has clean lines that blend in to almost any decor, and the ability to resist almost anything the weather forecast can throw at it. A low-insertion-loss 200-watt transformer helps maximize bass performance with 70V/100V commercial distributed audio systems, and a low-impedance bypass switch lets it work seamlessly with more traditional home audio amplification.

Product highlights:

surface-mounted 10" subwoofer with damped butyl rubber surround
handles up to 600 watts program power
frequency response: 43-600 Hz (±3dB)
sensitivity: 93 dB
omnidirectional coverage
multi-tap transformer for 70V or 100V systems
- 70V taps: 25, 50, 100, and 200 watts
- 100V taps: 50, 100, and 200 watts
- ultra-low insertion loss allows dynamic performance with high-impedance commercial systems
- 4-ohm bypass setting for use with compatible audio receivers and amps
IP55 weather resistance rating
slip-free yoke mount included
12-1/4"W x 23-7/16"H x 11-3/4"D
weight: 35.27 lbs.
warranty: 5 years
MFR # AS-10ST-B
Item # 978AS10STB
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

One 70/100V surface-mount subwoofer (black)
Yoke-mount wall bracket
Mounting hardware
4-Pin Euroblock connector

Researched by Crutchfield's Russ B.

Features & specs

General
Drivers Per Speaker	1
Woofer Size (inches)	10
Tweeter Size (inches)	---
System Frequency Response	43-600Hz
Maximum SPL	124
Number of Speakers Included	1
Power Handling
Power Rating	300
Peak Power Rating	---
70V Transformer Taps (watts)	25W, 50W, 100W, 200W
100V Transformer Taps (watts)	50W, 100W, 200W
8-ohm Bypass	Yes
Specs
Width (inches)	12-1/4
Height (inches)	23-7/16
Depth (inches)	11-3/4
Weight	35.27 lbs

Product Research

Features

Overview: Atlas Sound AS-Series surface mount speakers are designed for commercial, professional, and residential applications. The AS-10ST is a weather-resistant subwoofer that can be used indoors or outdoors, and features a built-in 200 W transformer for 70 & 100 V applications. The high-performance direct radiating subwoofer is designed to extend low-frequency response and increase headroom when used in conjunction with AtlasIED AS-Series full-range speakers. The AS-Series subwoofer includes a Yoke Mount wall bracket that allows for vertical or horizontal speaker positioning.

Construction: The AS-Series surface-mount subwoofer features a weather-resistant construction for indoor or outdoor use year round. The high-impact ABS enclosure is durable and scuff-resistant, and is coated with a UV inhibitor to withstand fading and breakdown. The speaker is protected by a powder-coated aluminum grille, and carries an IP55 weatherproof rating.

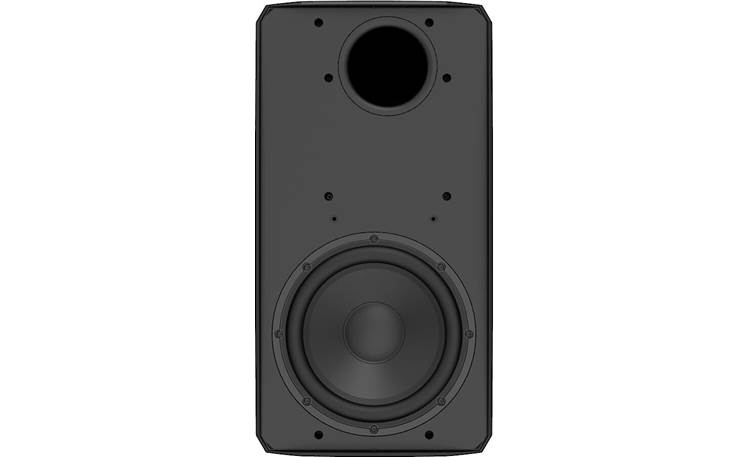

Drivers: The Atlas Sound AS-10ST is equipped with a highly-efficient 10" weather-treated paper woofer with a Butyl rubber surround. The subwoofer can provide omnidirectional coverage.

Connections: The AS-10ST features a 4-pin Euroblock connector for making speaker wire attachments. Two pins provide the input connection while two additional pins can be used to jumper the input signal out to additional speakers.

70/100 V Taps: The AtlasIED AS-10ST subwoofer features a built-in 200-watt transformer for 70 or 100-volt systems, along with an 8-ohm bypass. Tap settings include:

70 V: 25 W, 50 W, 100 W, 200 W
100 V: 50 W, 100 W, 200 W
Bypass: 8-Ohms

Mounting: The AS-10ST subwoofer includes a Slip-Free yoke mount bracket (U-bracket) that allows the speaker to be mounted vertically or horizontally with a wide range of aiming positions.

Specifications:

Frequency Response (±3 dB): 43-600 Hz
Frequency Range (-10 dB): 34-800 Hz
Power Handling:
- 70.7 V / 100 V Systems: Up to 200-watts
- 8-Ohm (bypass): 300-watts (average); 600-watts (program power/recommended); 1200-watts (peak)
Sensitivity (1W/1M): 93dB
Coverage Angles: Omnidirectional
Dimensions: 12.25" (w) x 23.4" (h) x 11.74" (d)
Weight: 35.27 lbs. (each)
