AtlasIED AS-8T 8" AS-Series 2-way, weather-resistant commercial surface-mount speaker (White)

Name: AtlasIED AS-8T
Brand: AtlasIED
SKU: 978AS8TW
Price: 665.99 USD
Availability: InStock

Item # 978AS8TW

This durable, weather-resistant, high-performance speaker is attractively minimalist and easy to mount.

Front (shown with included mounting bracket)

1/4

Back (without included mounting bracket)

2/4

Only at Crutchfield

3/4

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

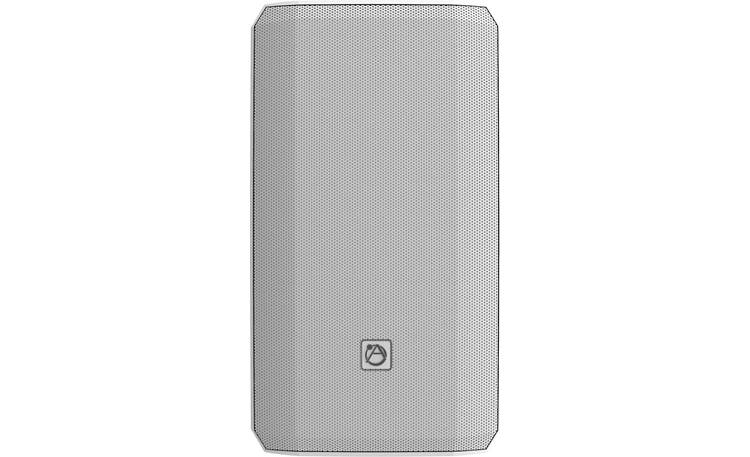

Front, straight-on

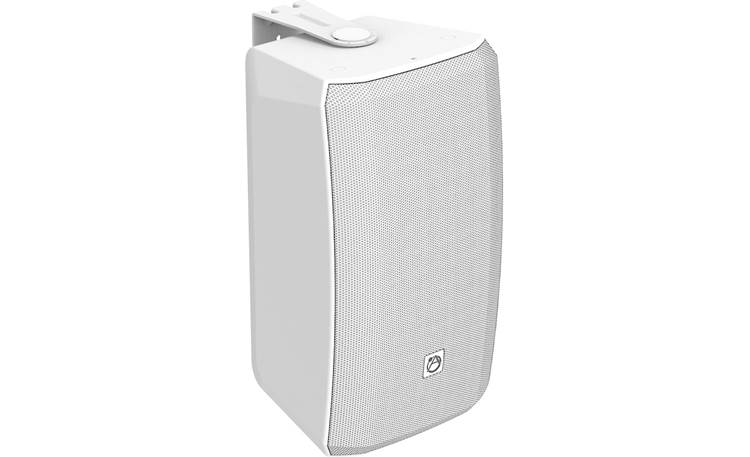

AtlasIED AS-8T Front (shown with included mounting bracket)

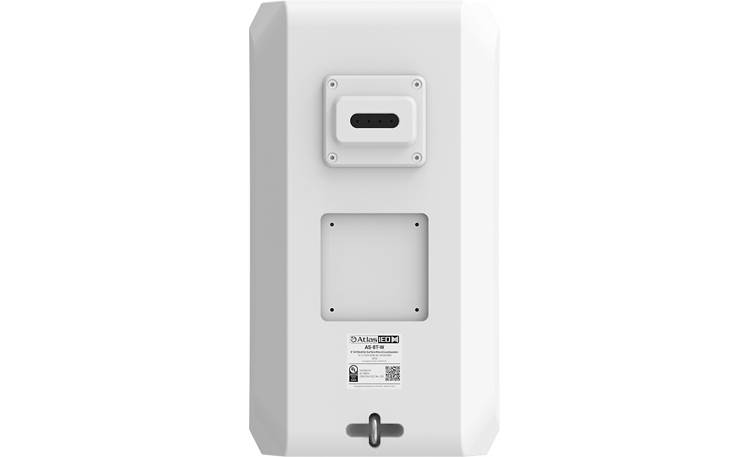

AtlasIED AS-8T Back (without included mounting bracket)

This durable, weather-resistant, high-performance speaker is attractively minimalist and easy to mount.

Item # 978AS8TW

Ships free from manufacturer to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

$665.99 each

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-315-2758

by Crutchfield's Woody Sherman

DIY and save — with our help

We help businesses across the country install their own commercial A/V systems without involving costly third-party installers. Ordering is easy, and you get FREE lifetime support.

Get a free system design

1-800-315-2758

Submit a request

Big sound, smaller footprint

The AtlasIED AS8-T can blanket your commercial outdoor venue with rich musical content and clear (yet unobtrusive) voice communication. This speaker has clean lines that blend in to almost any decor, and the ability to resist almost anything the weather forecast can throw at it. A built-in transformer with 70/100V taps allows it to integrate with most commercial distributed audio systems, and an 8-ohm bypass switch lets it work seamlessly with more traditional home audio amplification.

Product highlights:

surface-mounted speaker with 8" woofer and 1" exit-compression tweeter
handles up to 360 watts program power
frequency response: 70-18,000 Hz (±3dB)
sensitivity: 90 dB
90° vertical x 100° horizontal coverage angle
multi-tap transformer for 70V or 100V systems
- 70V taps: 3.8, 7.5, 15, 30, and 60 watts
- 100V taps: 7.5, 15, 30, and 60 watts
- 8-ohm bypass setting for use with regular home audio receivers and amps
IP55 weather resistance rating
slip-free yoke mount included
9-1/2"W x 17-3/16"H x 9-5/16"D
weight: 23.90 lbs.
warranty: 5 years
MFR # AS-8T-W
Item # 978AS8TW
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

Two 70/100V surface-mount speakers (white)
2 Yoke-mount wall brackets
Mounting hardware
4-Pin Euroblock connector

Researched by Crutchfield's Russ B.

Features & specs

General
Drivers Per Speaker	2
Woofer Size (inches)	8
Tweeter Size (inches)	1
System Frequency Response	70Hz-18k
Maximum SPL	119
Number of Speakers Included	2
Power Handling
Power Rating	180
Peak Power Rating	---
70V Transformer Taps (watts)	3.8W, 7.5W, 15W, 30W, 60W
100V Transformer Taps (watts)	7.5W, 15W, 30W, 60W
8-ohm Bypass	Yes
Specs
Width (inches)	9-1/2
Height (inches)	17-3/16
Depth (inches)	9-5/16
Weight	23.9 lbs

Product Research

Features

Overview: Atlas Sound AS-Series surface mount speakers are designed for commercial, professional, and residential applications. These weather-resistant, full-range speakers can be used indoors or outdoors, and feature a built-in 60 W transformer for 70 & 100 V applications. Each AS-series speaker includes an AtlasIED Yoke Mount wall bracket that allows for vertical or horizontal speaker positioning.

Construction: The AS-Series surface-mount loudspeakers feature weather-resistant construction for indoor or outdoor use year round. The high-impact ABS enclosure is durable and scuff-resistant, and is coated with a UV inhibitor to withstand fading and breakdown. The speakers are protected by a powder-coated aluminum grille, and carry an IP55 weatherproof rating.

Drivers: The Atlas Sound AS-8T is equipped with a 1" exit high-frequency compression driver, and a highly-efficient 8" weather-treated paper woofer with a Butyl rubber surround. The speaker provides a wide 100° (h) x 90° (v) of coverage area for evenly dispersed sound.

Connections: The AS-8T features a 4-pin Euroblock connector for making speaker wire attachments. Two pins provide the input connection while two additional pins can be used to jumper the input signal out to additional speakers.

70/100 V Taps: The AtlasIED AS-8T speakers feature a built-in 60-watt transformer for 70 or 100-volt systems, along with an 8-ohm bypass. Tap settings include:

70 V: 3.8 W, 7.5 W, 15 W, 30 W, 60 W
100 V: 7.5 W, 15 W, 30 W, 60 W
Bypass: 8-Ohms

Mounting: The AS-8T speakers include Slip-Free yoke mount brackets (U-brackets) that allow the speakers to be mounted vertically or horizontally with a wide range of aiming positions.

Specifications:

Frequency Response (±3 dB): 70 Hz - 18 kHz
Frequency Range (-10 dB): 49 Hz - 20 kHz
Power Handling:
- 70.7 V / 100 V Systems: Up to 60-watts
- 8-Ohm (bypass): 180-watts (average); 360-watts (program power/recommended); 720-watts (peak)
Sensitivity (1W/1M): 90dB
Coverage Angles: 100° H x 90° V
Dimensions: 9.5" (w) x 17.15" (h) x 9.3" (d)
Weight: 23 lbs. (each)
