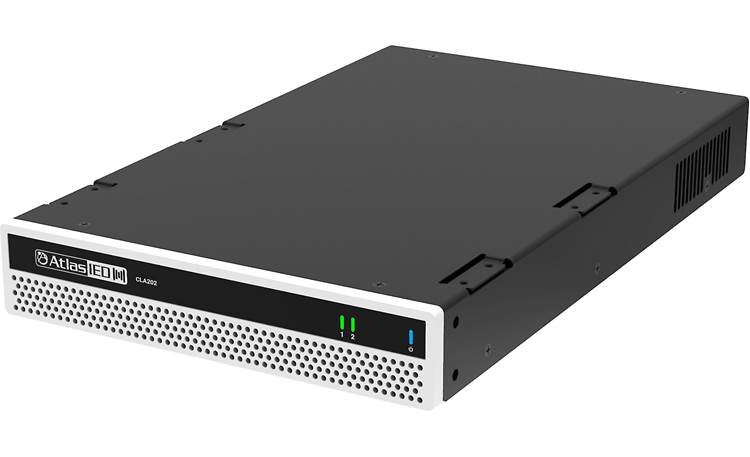

AtlasIED CLA202 200-watt, 2-channel commercial amplifier with power sharing and selectable impedance

Name: AtlasIED CLA202
Brand: AtlasIED
SKU: 978CLA202
Price: 753.99 USD
Availability: InStock

Item # 978CLA202

This highly configurable amp excels at driving speakers that present different power requirements and impedance loads.

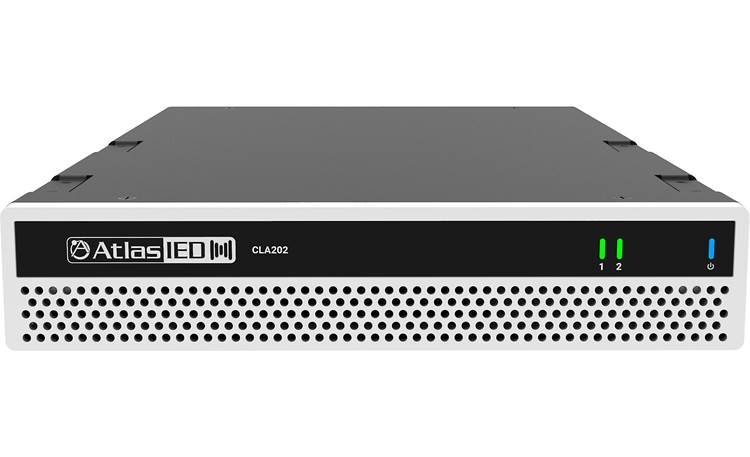

Front

1/3

2/3

Only at Crutchfield

3/3

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

This highly configurable amp excels at driving speakers that present different power requirements and impedance loads.

Item # 978CLA202

Ships free from manufacturer to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

$753.99

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-315-2758

by Crutchfield's James Ralston

DIY and save — with our help

We help businesses across the country install their own commercial A/V systems without involving costly third-party installers. Ordering is easy, and you get FREE lifetime support.

Get a free system design

1-800-315-2758

Submit a request

Flexible, configurable power for your commercial installation

This compact, half-rack-sized amplifier from AtlasIED offers robust power that's highly configurable, great for driving different speaker setups in multiple playback zones of a commercial audio system. You can think of the CLA202 essentially as having 100 watts x 2 channels, but its helpful power sharing feature lets you adjust the output of the channels in combinations like 150 watts + 50 watts or 175 watts + 25 watts for installs where your connected speakers have varying power requirements.

You can tailor each of the amp's two channels individually for different impedance loads. Choose 70V, 100V, or "Low-Z" 4-ohm or 8-ohm output for use with different kinds of speaker setups. The load configuration and power sharing distribution settings are easy to select via simple back-panel switching.

Mounting hardware is included for installing one or two AtlasIED CLA Series amps in a single 1U rack space.

Product highlights:

100 watts x 2 at 4 ohms, 8 ohms, or 25V/70V/100V
- 50 watts x 2 at 2 ohms
selectable power sharing settings let you configure the power output for your specific installation
- 100W/100W
- 125W/75W
- 150W/50W
- 175W/25W
each channel is independently configurable for 4-ohm, 8-ohm, 70V, or 100V operation
power sharing and impedance load settings are accessible via simple back-panel switches
efficient Class D amplifier circuitry
fixed 1V input sensitivity
frequency response: 20-20,000 Hz (-1.5dB for 2-, 4-, or 8-ohm operation)
- 50-20,000 Hz (-1.5dB for 70V/100V operation)
signal-to-noise ratio: 93 dBA (8 ohms)
low-noise fan-cooled design (42dBu at 1 meter)

Connections:

two balanced Euroblock line inputs with independent gain adjustments
two speaker-level Euroblock channel outputs
3-pin Euroblock general purpose input (GPI) for remote-activated standby and priority mute with optional external relays
removable IEC power cord

Dimensions and warranty:

8-1/2"W x 1-3/4"H x 13-13/16"D (half rack space)
weight: 5.3 lbs.
rack mountable with included hardware
warranty: 3 years
MFR # CLA202
Item # 978CLA202
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

AtlasIED CLA202 owner's manual

2-Channel commercial amplifier
6' Power cord (IEC 3-prong)
2 Short rack ears
1 Long rack ear
2 Joiner plates
One 4-pin Euroblock connector
Three 3-pin Euroblock connectors
Two 2-pin Euroblock connectors
Four 10mm screws
Sixteen 3/8" screws
Four 1" screws
4 Plastic washers
Install sheet with QR code for manual

Researched by Crutchfield's Russ B.

Product Research

Features

Overview: The AtlasIED CLA202 is a 2-channel, 200-watt multi-impedance amplifier that features AtlasIED's patent-pending Power Share technology, allowing different power levels to be applied to separate output channels. The CLA202 can be used in both 25-, 70-, and 100-volt distributed systems as well as 2-, 4-, and 8-ohm low-impedance applications. The amplifier's switch-mode power supply features an auto-sensing design that ensures stable output power even with fluctuating power conditions.

Inputs: Two balanced inputs (1&2) are provided on two 3-pin Euroblock (Phoenix) connectors, both accepting line-level signals. Each input includes a corresponding rotary Gain dial for adjusting the signal level.

Speaker Outputs: Two 2-pin Euroblock connectors (1&2) provide the 2 powered output channels, each accommodating speaker wire up to 14-gauge.

Power Sharing: The CLA202 features AtlasIED's amplifier power sharing technology that can divide the power in any proportion to each of the speaker output channels. The total power available for the two speaker outputs is 200-watts, which can be split between the two speaker channels. A rear-panel Power Share dial lets you quickly and easily set how the power will be divided between the A and B speaker outputs:

Power Share Dial Setting	100W/100W	175W/25W	150W/50W	125W/75W
4- or 8-ohm, 70- & 100-volt	100W/100W	175W/25W	150W/50W	125W/75W
25-volt	2 x 100W	150W/50W	150W/50W	125W/75W
2-ohm	2 x 50W	90W/12W	75W/25W	65W/38W

Hi-Z & Low-Z Operation: The AtlasIED CLA202's flexible configuration lets you assign the two speaker outputs as either a Low-Z 4- or 8-ohm, or as a Hi-Z 70V or 100V output via a rear-panel 4-pin DIP switch.

Fan Cooled: The CLA202 is a highly efficient Class-D amplifier that generates minimal heat and can be convection-cooled most of the time. When additional cooling is required, a variable-speed fan will automatically activate providing increased air flow through the amp chassis.

Front-Panel Indicators:

Power/Protect: A single LED will light Blue when the amp is powered on and operating nominally, and will change to Red if it detects a fault or problem.
Channel Status: Two LEDs provide the status of each channel:
- Green: Indicates a signal is present and the channel is operating nominally.
- Yellow: Output Limiter has been activated and/or the amp is starting getting too hot.
- Red: Over-current/fault has occurred and the amp is in Protect mode.

GPI (General Purpose Input): A 3-pin Euroblock connector contains the input and output connections for optional contact switches (sold separately). The GPI port can be configured for either of the following options:

Standby Mode: Puts the amp into Standby mode when activated.
Priority Mode: When activated, this will Mute all inputs.

Remote Level Control: A 4-pin Euroblock connector lets you connect an optional Remote Level Control for remotely adjusting the volume of each channel using a 10 kΩ variable potentiometer (sold separately) such as the AtlasIED WPD-VC10K wall-mount control. Each channel's signal level can be adjusted with individual level controls, or be configured with one level control affecting all channels simultaneously.

Mounting: The AtlasIED CLA202 is housed in a 1U (high), 1/2-rack (width) chassis that can be rack-mounted using the provided hardware. Rack-mount brackets are included for mounting either a single CLA202 or two CLA202s into a standard 1U 19" rack space.

Power: The CLA202 requires AC power for operation and includes a 6' AC power cord.

Loading accessories...

Loading articles...

Looking for more?

Check out the next model in this lineup.

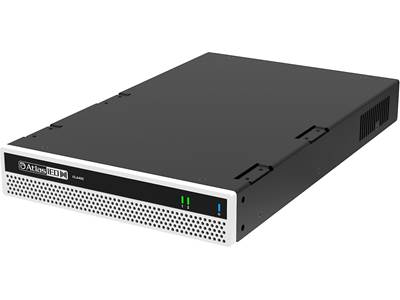

AtlasIED CLA402
