AtlasIED FS12T-94 12", 2-way indoor/outdoor commercial horn speaker

Name: AtlasIED FS12T-94
Brand: AtlasIED
SKU: 978FS12T94
Price: 1124.99 USD
Availability: InStock

Item # 978FS12T94

This high-power, high-output speaker serves up full-range sound for a wide range of outdoor commercial applications.

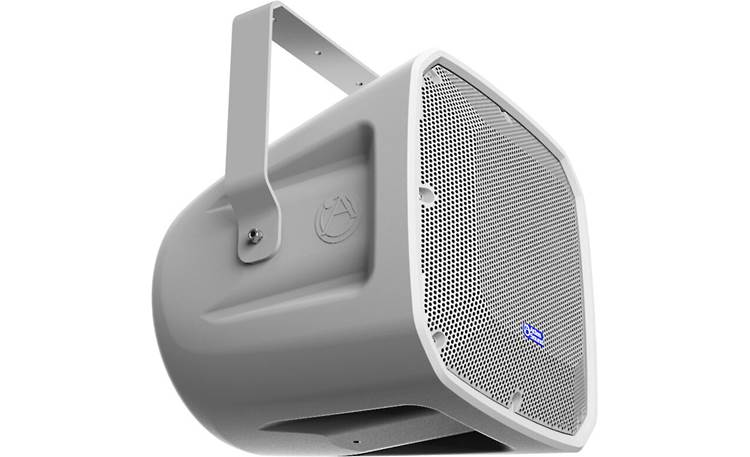

Front

1/6

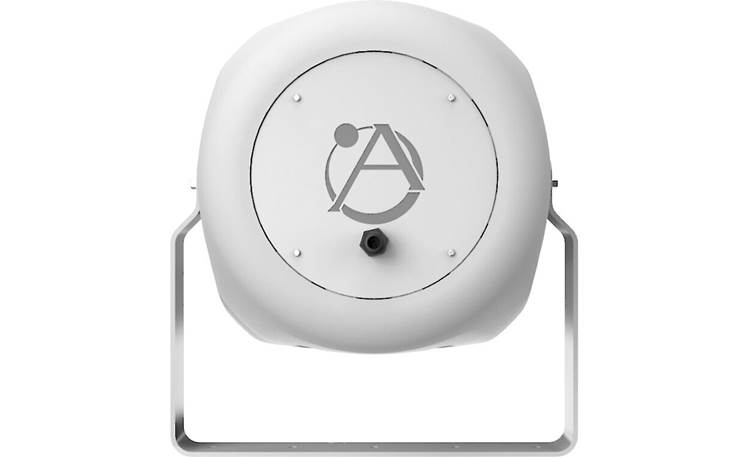

Rear cover

2/6

Only at Crutchfield

3/6

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

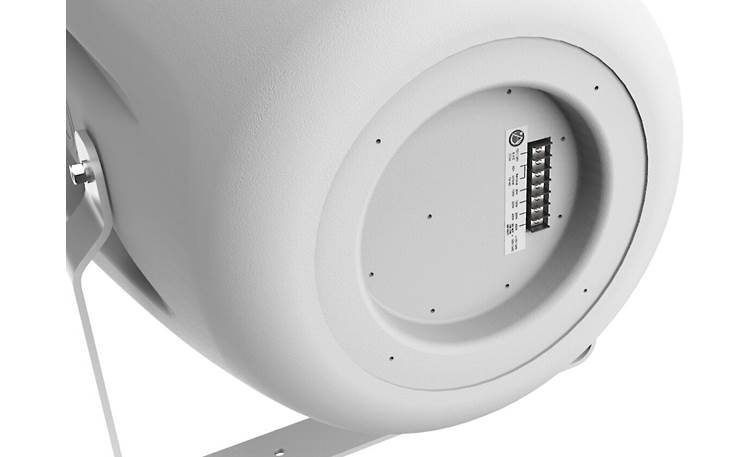

Rear wiring connections

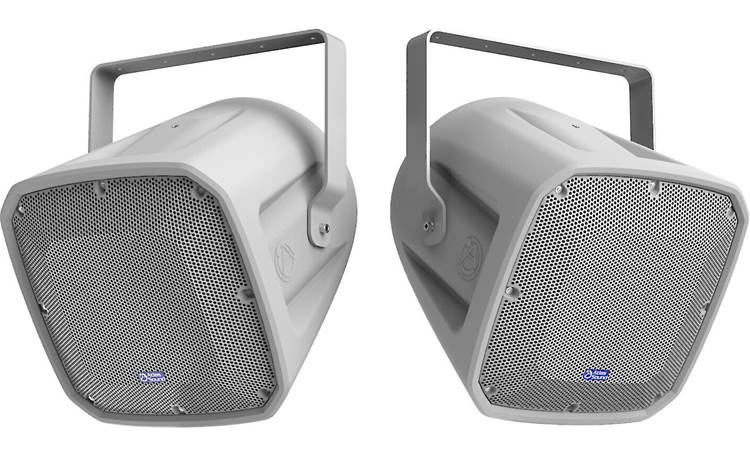

Pair shown (sold individually)

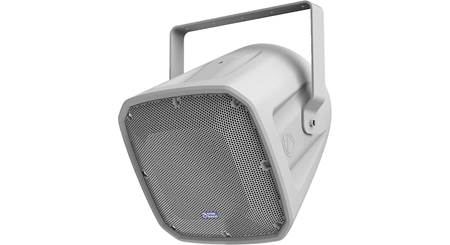

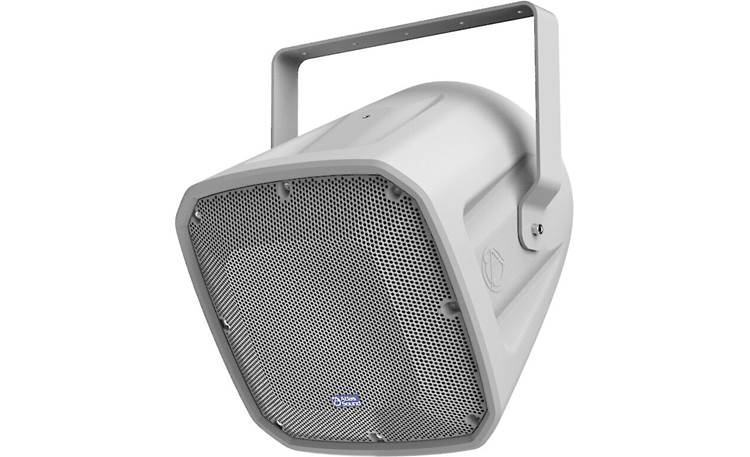

Profile

AtlasIED FS12T-94 Rear wiring connections

AtlasIED FS12T-94 Pair shown (sold individually)

This high-power, high-output speaker serves up full-range sound for a wide range of outdoor commercial applications.

Item # 978FS12T94

Ships from manufacturer

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

$1,124.99 each

Add to cart

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-315-2758

by Crutchfield's James Ralston

DIY and save — with our help

We help businesses across the country install their own commercial A/V systems without involving costly third-party installers. Ordering is easy, and you get FREE lifetime support.

Get a free system design

1-800-315-2758

Submit a request

Powerful sound for outdoor spaces

This weather-resistant two-way speaker from AtlasIED uses a big 12" woofer and a 1" horn-loaded compression driver to deliver full frequency response and high SPLs in outdoor environments like parks, fairgrounds, and other open spaces. It can handle up to 400 watts continuous or 800 watts of program power. A simple integrated U-bracket allows for easy mounting. A built-in transformer offers a range of tap positions for 70- and 100-volt systems, giving you flexible installation options.

Product highlights:

400-watt, full-range indoor/outdoor loudspeaker
12" woofer with cast frame
concentrically mounted 1" high-frequency compression driver with waveguide
built-in transformer for use with commercial systems
- 70V taps: 50, 100, 200, 400 watts
- 100V taps: 100, 200, 400 watts
- 4-ohm transformer bypass for flexible installation options
handles up to 400 watts (continuous)
frequency response: 80-17,600 Hz (±5dB)
sensitivity (2.83V@ 1m): 102.5 dB
max. SPL: 128.5 dB
coverage: 90° horizontal x 40° vertical
IP45-rated weather-resistant when tilted 5° downward
neutral gray enclosure color
adjustable stainless steel U-bracket for mounting
18-1/2"W x 19-9/16"H x 18-1/2"D
weight: 48 lbs.
warranty: 5 years
MFR # FS12T-94
Item # 978FS12T94
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

One 12" 2-way mulitpurpose horn speaker

Researched by Crutchfield's Russ B.

Features & specs

General
Drivers Per Speaker	2
Woofer Size (inches)	12
Tweeter Size (inches)	1
System Frequency Response	80Hz-18.6k
Maximum SPL	128.5
Number of Speakers Included	1
Power Handling
Power Rating	400
Peak Power Rating	---
70V Transformer Taps (watts)	50W, 100W, 200W, 400W
100V Transformer Taps (watts)	100W, 200W, 400W
8-ohm Bypass	Yes
Specs
Width (inches)	18-1/2
Height (inches)	19-9/16
Depth (inches)	18-1/2
Weight	48 lbs

Product Research

Features

Overview: The Atlas FS12T-94 is a 2-way full-range horn speaker designed to provide excellent voice and music reproduction in applications requiring weather resistance.

Drivers: The FS12T-94 features a 12" low-frequency driver and a 1" high-frequency compression driver that are concentrically mounted to a high-directivity waveguide. The horn speaker can provide 90˚ (h) x 40˚ (v) of coverage area and is tuned for optimal sound reproduction.

Enclosure: The Atlas horn speaker is constructed of molded linear low-density polyethylene (LLDPE), for an incredibly strong yet lightweight enclosure. The enclosure's "battle ship grey" finish is UV resistant for years of outdoor durability. The speaker enclosure includes a stainless steel U-bracket along with 4 eyebolt inserts for suspending the speaker (suspension hardware sold separately). The FS12T-94 carries an IP45 weatherproof rating.

70/100V: The FS12T-94 includes a built-in high-efficiency 70/100V transformer that can handle up to 400W. The transformer is mounted under a rear cover, providing protection for weather. Tap options include:

70V: 50W, 100W, 200W, 400W
100V: 100W, 200W, 400W
4Ω Bypass

Specifications:

Frequency Response (+/-5dB): 80Hz - 17.6kHz
Operating Range (-10dB): 57Hz - 18.6kHz
Sensitivity (2.83V @1M): 102.5dB
Drivers:
- LF: 12"
- HF: 1" Throat compression driver
Ingress Protection: IP45 (when tilted 5˚ downwards)
Vertical Coverage: 40˚
Horizontal Coverage: 90˚
Impedance (Transformer Bypassed): 4Ω

Loading accessories...

Loading articles...

Frequently compared with

Current item

Loading...

Adding...

AtlasIED FS12T-94

12", 2-way indoor/outdoor commercial horn speaker

$1,124.99 each
Loading...

Adding...

JBL Control SB2210

Dual 10" weather-resistant surface mountable subwoofer

Black

In stock

5.0 out of 5 stars
6 reviews

$879.00 each
Loading...

Adding...

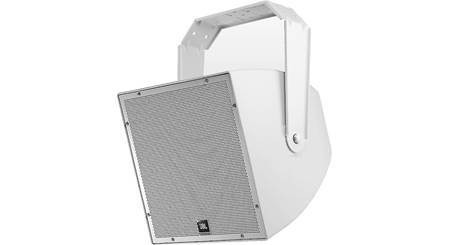

JBL AWC129
