About the AtlasIED M1000
Designed for sound masking systems
Get started with
a free system design
After we gather your information, we’ll send you a detailed system plan. It will include a link to a pre-filled shopping cart. Ordering is easy, and delivery is fast.
Designed for sound masking systems
The AtlasIED M1000 speaker is designed for use with the Z-2B and Z-4B sound masking systems. A built-in 70/100V tap and a convenient EZ hang mounting system offer maximum flexibility for multi-zone sound masking in a commercial space. It can be safely mounted in rooms with high ceilings with the addition of a 72-inch AtlasIED MCHAIN72 suspension chain (not included). The speaker is rated for installation in drop ceilings as well as true plenum (air handling) ceiling spaces.
Product highlights:
- 8" dual cone speaker
- masks noise and ensures speech privacy when used with compatible sound masking system
- rated for drop ceilings and true plenum spaces
- 70 volt taps: .25, .5, 1, 2 and 4 watts
- 100 volt taps: .5, 1, 2, and 4 watts
- EZ hang bracket allows quick and easy installation
- can be safely mounted in rooms with high ceilings with the addition of a 72-inch AtlasIED MCHAIN72 suspension chain (not included)
- configurable for upward, downward, or horizontal sound dispersion
Dimensions and warranty:
- 11-9/16"W x 5-1/2"H x 11-9/16"D
- weight: 9 lbs.
- warranty: 3 years
- MFR # M1000
What's in the box:
- 8" Sound masking speaker w/ installed hangers
Reviews (0)
Customer reviews for AtlasIED M1000
Loading reviews...
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the AtlasIED M1000
Features & specs
| General | ||
|---|---|---|
| Drivers per speaker | 1 | |
| Woofer Size (inches) | N/A | |
| Tweeter Size (inches) | N/A | |
| System Frequency response | 100-10k | |
| Maximum SPL | N/A | |
| Power Handling | ||
| Power rating | .25-4 | |
| Peak Power rating | --- | |
| Specs | ||
| Width (inches) | 11-9/16 | |
| Height (inches) | 5-1/2 | |
| Depth (inches) | 11-9/16 | |
| Weight | 9 lbs | |
Product Research
Features
Overview: The Atlas M1000 sound masking speaker features a specially designed 8" dual cone speaker designed to accurately reproduce the required spectrum of sound masking signal into open ceiling, drop ceiling, or plenum spaces. The M1000 includes a built-in 70V transformer with an external tap selector for easy tuning, and an innovative 734 cu. in. enclosure that ensures ample low-frequency response. The M1000 carries both UL1480 and UL2043 ratings for use in air handling spaces.
Note: The Atlas M1000 sound masking speaker requires a sound masking generator and a 70V amplifier to operate (both sold separately).
70V: The Atlas M1000 is designed to be powered from a 70V commercial amplifier, low impedance (8Ω) operation is not supported. The external tap dial includes an Off setting along with the following wattage taps: 0.25W, 0.5W, 1W, 2W, and 4W.

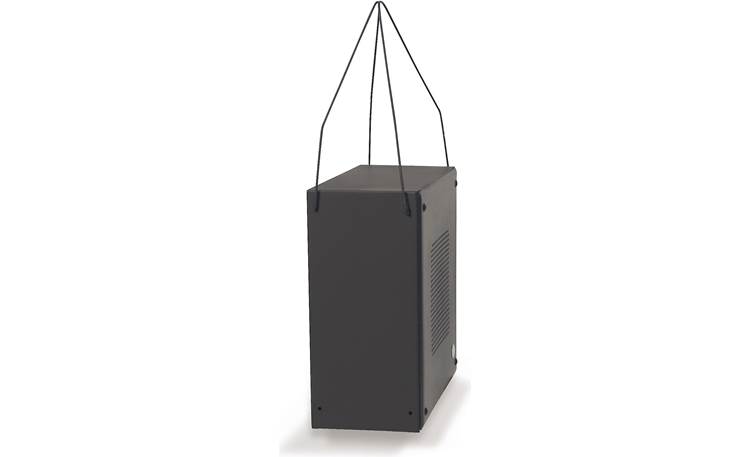

Mounting: The M1000 sound masking speaker includes 2 built-in, fold-out hangers that can be configured for upward, downward, or horizontal speaker orientation. The optional Atlas MCHAIN72 (sold separately) 72" suspension chain allows quick mounting and height adjustment of the sound masking speaker. An input panel on the speaker includes a wire strain-relief, for a secure speaker cable termination, along with a knock-out that can accommodate either rigid or flexible conduit, if required.
