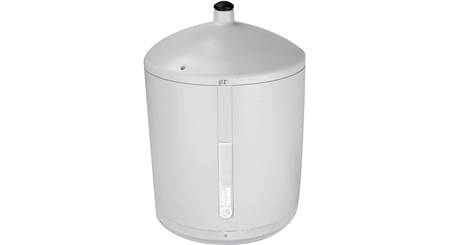

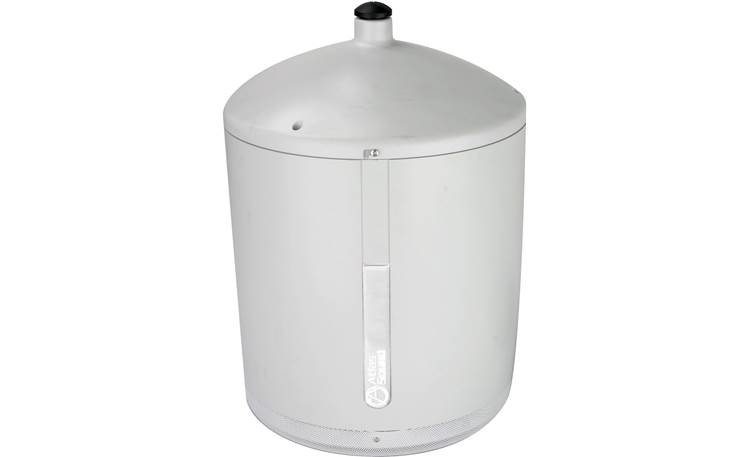

About the AtlasIED PM8SUB

Product highlights:
- 8" pendant subwoofer
- single-point mounting system allows speaker to be securely suspended from above
- handles up to 150 watts RMS
- sensitivity: 92 dB
- frequency response: 46-160 Hz
- 70-volt transformer taps at 7.5, 15, 30 and 60 watts
- 8-ohm bypass allows use with consumer audio receivers and amplifiers
- compatible with standard 3/4" ceiling fan hardware
- 9.8-foot 2mm cable and mounting hardware included
- 16-5/8" high x 12-1/4" diameter
- weight: 21 lbs.
- warranty: 5 years
- MFR # PM8SUB-WH
- Item # 978PM8SUBW
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
AtlasIED PM8SUB owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One Pendant speaker
- 3 Meters of 2 mm cable
- Mounting hardware
More details on the AtlasIED PM8SUB

Features & specs
General | ||
---|---|---|
Drivers Per Speaker | 1 | |
Woofer Size (inches) | 8 | |
Tweeter Size (inches) | N/A | |
System Frequency Response | 46-160 | |
Maximum SPL | N/A | |
Number of Speakers Included | 1 | |
Power Handling | ||
Power Rating | 150 | |
Peak Power Rating | --- | |
70V Transformer Taps (watts) | 7.5, 15, 30, 60 | |
100V Transformer Taps (watts) | None | |
8-ohm Bypass | Yes | |
Specs | ||
Width (inches) | 12-1/4 | |
Height (inches) | 16-5/8 | |
Depth (inches) | --- | |
Weight | 21 lbs |
Product Research
Features
Overview: The PM8SUB is a 70 volt pendant mount subwoofer featuring the same high-performance 8" driver found in the acclaimed FAP8SUB in-ceiling subwoofers. The PM8SUB provides a natural sound and excellent low frequency response over a wide coverage area and is ideal for low height installations.
Mounting: The pendant subwoofer can easily be attached to most overhead surfaces with the included 3 meter cable kit which includes a self-gripping ferrule system. The speaker includes a "cap" that provides a protective, cosmetic cover that hides the mounting attachments and wiring. The pendant speaker can also be mounted using a down pipe (not included) from a hard ceiling and is compatible with any standard 3/4" ceiling fan installation kit found at most home improvement stores.
Specifications:
- Frequency Response: 46 Hz - 160 Hz
- Sensitivity: 92 dB Average
- Tap Settings: 7.5 W, 15 W, 30 W, 60 W, and 8Ω
- 8Ω RMS Power: 150 W
- Dispersion: Omni
- Crossover: 18 dB/Oct @ 120 Hz
- Enclosure Volume: 1075 cu. in.
- Dimensions: Length - 16.625", Diameter - 12.250"
- Weight: 21.0 lbs.
