About the AtlasIED TSD-TXHL

Product highlights:
- tap into speaker-level wiring and step down to line-level output
- switchable input impedance: 4/8 ohms, 70/100 volts
- speaker-level input with removable Phoenix-style connector
- unbalanced line output with removable Phoenix-style connector
- rear-mounted output level control
- removable knob and security cover to prevent unauthorized volume changes
- 4"W x 1-1/2"H x 2-3/4"D
- weight: 6 oz.
- warranty: 3 years
- MFR # TSD-TXHL
- Item # 978TSDTXHL
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
AtlasIED TSD-TXHL owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Commercial high-to-low level signal converter
- Two 2-pin Phoenix (Euroblock) connectors
More details on the AtlasIED TSD-TXHL

Product Research
Features
Overview: The Atlas TSD-TXHL is a high-to-low level signal converter designed to lower amplified 4Ω, 8Ω, 25V, 70V, and 100V signals to unbalanced line level signals, for running to additional outboard amplifiers. This allows you to expand an existing system without the need for additional long wire runs to a new zone or listening area. The TSD-TXHL features an isolated transformer that won't add any measurable impedance to the line.

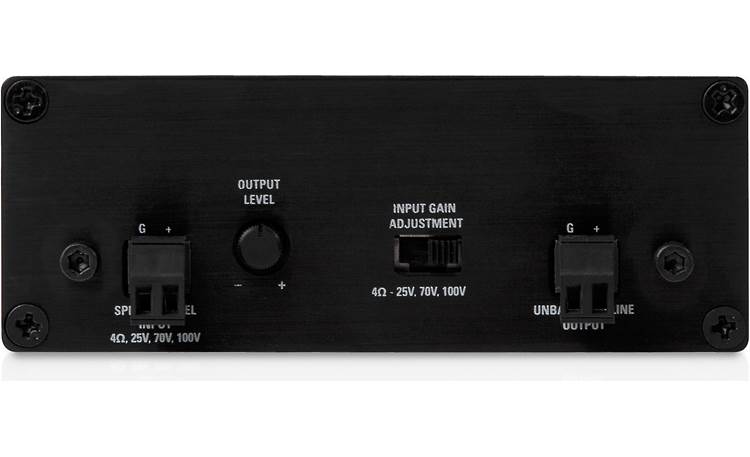

Input: A 2-pin Phoenix (Euroblock) connector can accept 4Ω, 8Ω, 25V, 70V, or 100V signals. A corresponding 4-way selector switch lets you select what type of input signal will be used.
Output: A 2-pin Phoenix connector provides an unbalanced line-level output, up to 500mV, for running to additional amplifiers or processors. A corresponding rotary control lets you adjust the output signal level.
Specifications:
- High-Level Input: Amplified 4Ω, 8Ω, 25V, 70V, 100V
- Line Output Level: Up to 500mV
- Output Impedance: 600Ω
- Frequency Response: 40Hz - 25kHz
