About the KEF Ci160TS
Product highlights:
- ultra-slim design fits even very narrow ceiling and wall spaces
- weather-resistant materials for use in bathrooms, pool areas, or marine installations
- 1" aluminum dome tweeter with KEF's "tangerine" waveguide for natural sound with wide, even dispersion
- 4-1/2" woofer with rigid flat diaphragm for clean upper bass and midrange response
- frequency response: 110-24,000 Hz (±6 dB)
- recommended amplifier power: 10-100 watts
- sensitivity: 87 dB
- impedance: 8 ohms
- ultra-thin bezel and paintable magnetic grille provide seamless integration into your décor
- gold-plated, spring-loaded binding posts
- speaker cutout: 7-11/16" x 7-11/16"
- mounting depth: 1-7/16"
- overall dimensions: 8-13/16"W x 8-13/16"H x 1-5/8"D
- weight: 2.31 lbs.
- warranty: 5 years (6 years with registration)
- MFR # CI160TS
- Item # 991160TS
What's in the box:
- In-ceiling loudspeaker
- Grille
- KEF logo
- Paint guard
- Cutout template
- Installation Manual
- Waranty Information
More details on the KEF Ci160TS
Features & specs
| Features | ||
|---|---|---|
| Quantity in Package | Single | |
| Tweeter | Hard-Dome | |
| Aimable Tweeter | No | |
| Woofer Composition | Polypropylene | |
| Woofer Surround | Rubber | |
| Connector Type | Spring post | |
| Bi-Amp Inputs | No | |
| Built-in Back-box | No | |
| Moisture Resistance | ||
| Indoor (Moisture-resistant) | Yes | |
| Outdoor (Partial Exposure) | No | |
| Outdoor (Full Exposure) | No | |
| Specs | ||
| Tweeter Size | 1 | |
| Midrange Size | N/A | |
| Speaker Shape | Square | |
| Woofer Size | 4.5 | |
| Cutout Width | 7.6875 | |
| Cutout Height | 7.6875 | |
| Mounting Depth | 1.438 | |
| Power Range (Watts) | 10-100 | |
| Sensitivity | 87 dB | |
| Impedance (Ohms) | 8 | |
| Frequency Response | 110-24kHz | |
| Parts Warranty | 6 Years w/ registration | |
| Labor Warranty | 6 Years w/ registration | |
Product Research
Features

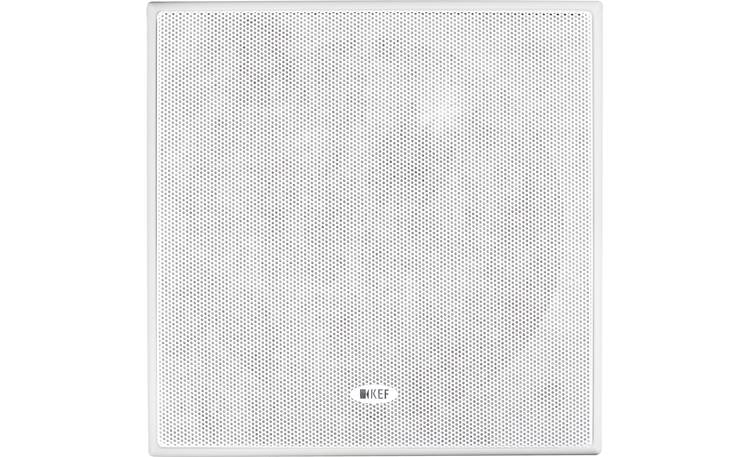

Ultra-Slim Design: The KEF Ci160TR is an ultra-slim in-wall/in-ceiling loudspeaker that requires only 1.4375" of mounting depth. It also features an ultra-thin bezel (UTB) and comes with an ultra-low profile magnetic grille that protrudes only 0.1875" from the surface of your ceiling. The speaker's grille and bezel are white, but can be painted to match the color of your wall or ceiling.

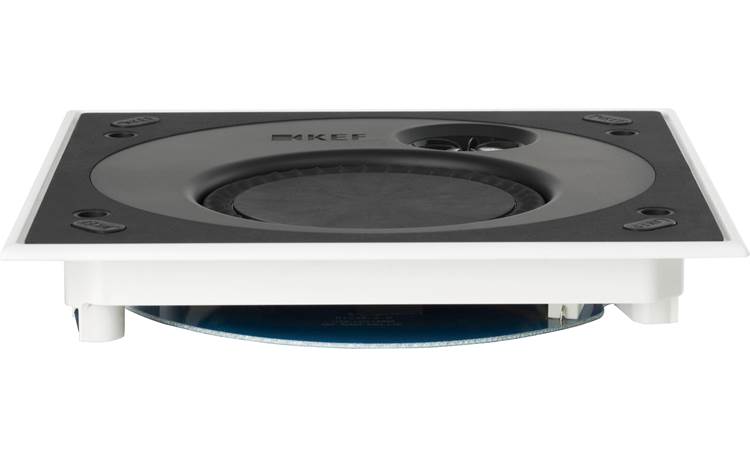

2-Way Driver Configuration: The KEF Ci160TR utilizes a 2-way driver configuration that features a 1" aluminum dome tweeter and 4.5" mid/bass driver for a frequency response of 110 to 24,000 Hz (+/-6dB) and power handling capabilities of 10 watts to 100 watts.
- 1" Aluminum Dome Tweeter: The 1" aluminum dome tweeter employs venting and KEF's unique Tangerine Waveguide to enhance its natural high frequency response and already exceptionally wide dispersion characteristics (160-degrees of coverage), as well as adding protection for the tweeter.
- 4.5" Polypropylene Woofer: The 4.5" polypropylene cone woofer features a rigid flat diaphragm to deliver clean upper bass and mid-range response.

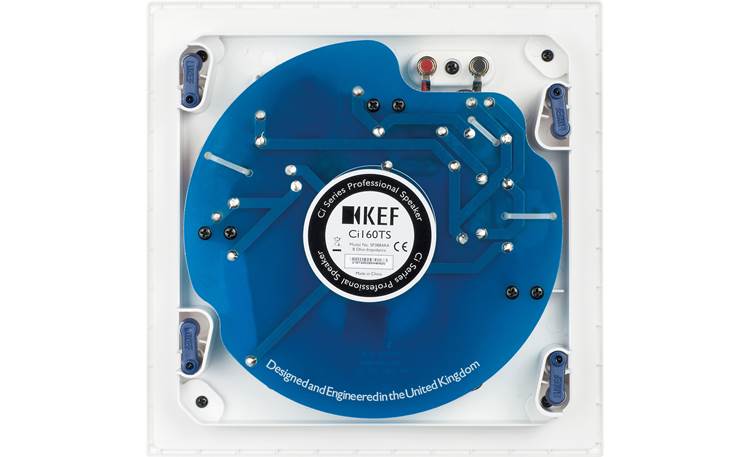

Spring-Post Terminals: The KEF Ci160TR is outfitted with a set of gold-plated spring-post terminals that will accept bare wire up to 14AWG (not compatible with banana plugs). The gold-plated terminals provide excellent audio signal transfer and resistance to corrosion. The Ci160TR is 8-ohm rated.

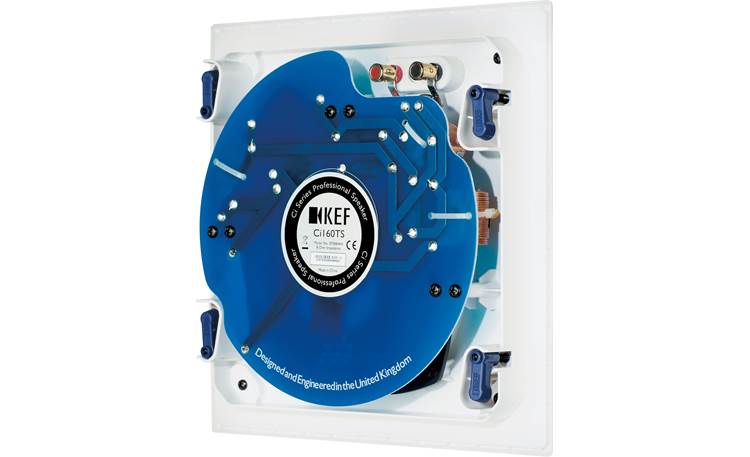

Mounting Options: The KEF Ci160TR in-wall/in-ceiling loudspeaker offers versatile installation and can be mounted in the wall or ceiling using its integrated "dog-leg" clamps or via direct screw-in fastening. The speaker requires a round cutout that measures 7.6875" in diameter and 1.4375" in depth. The Ci160TR can be mounted to a wall or ceiling surface with a thickness of 0.375" to 1.0" thick. Make sure to leave approximately 0.625" of clearance around the inside of the cutout to accommodate the "dog-leg" mounting clamps.
Weather Resistant: Manufactured using a proprietary plating and powder coating process, the KEF Ci160TR is UV protected and moisture resistant making it safe for use in bathrooms, pool areas, and on ocean yachts.
