About the Secura QLF315
With the Secura QLF315 full-motion wall mount you can adjust your TV for optimal viewing in just about any room. The articulated arm can extend your TV up to 14-1/16" from the wall. The mount can be swiveled up to 45° from side to side, and tilted up or down. After installation, the mount's "roll" adjustment lets you fine-tune your TV's position to ensure that it's level. And installation is a simple three-step process. Mount the wall plate to a wall stud, attach the brackets to the back of your TV, and then lock them into place on the wall plate.
Product highlights:
- designed for TVs 40"-70"
- supports up to 80 lbs.
- pivoting arm extends TV up to 14-1/16" away from the wall
- tilt range: +5° to -15°
- roll adjustment: ±5°
- swivel range: ±45°
- brackets lock onto wall plate for simple installation
- stud-mounting required
- 17-3/4"W x 16-15/16"H x 3-1/2"D (up to 14-1/16" with arm extended)
- warranty: 5 years
- MFR # QLF315-B2
What's in the box:
- Wall-mount bracket w/ articulating arm
- 2 TV brackets
- Four M6x12mm bolts
- Four M6x35mm bolts
- Four M8x16mm bolts
- Four M8x25mm bolts
- Four M8x35mm bolts
- Four M8x50mm bolts
- Four M6/M8 washers
- Four 2.5mm spacers
- Four 22mm spacers
- Four 5/16" x 2-3/4" Lag-bolts
- Four 5/16" washers
- 4 Concrete anchors
- Instruction Manual
- Warranty Information
Reviews (3)
Customer reviews for Secura QLF315
Loading reviews...
Average review:
4.5 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Secura QLF315
Features & specs
| Features | ||
|---|---|---|
| Mount Type | Wall Mount | |
| Motion | ||
| Tilt | Yes | |
| Swivel | Yes | |
| Extend/Retract | Yes | |
| Fixed | No | |
| Roll (Level) Adjustment | Yes | |
| Mounting Details | ||
| Wood Stud (Single) | No | |
| Wood Stud (Dual, 16-inch) | Yes | |
| Wood Stud (Dual, 24-inch) | No | |
| Concrete Block-compatible | Yes | |
| Recessed Housing | No | |
| Outdoor-rated | No | |
| Motorized | No | |
Product Research
Features
TV Compatibility: The Secura QLF315-B2 is a full-motion wall-mount bracket for 40"-70" flat-panel TVs up to 80 lbs.
VESA Pattern: The Secura QLF315-B2 features universal mounting brackets to accommodate horizontal hole spacing on back of TVs of 100mm-600mm and a vertical hole spacing of 100mm-400mm. It will accommodate the following VESA hole patterns in accordance with industry standards set by the Video Electronics Standards Association.
- 100 x 100
- 200 x 100
- 200 x 200
- 300 x 200
- 300 x 300
- 400 x 200
- 400 x 300
- 400 x 400
- 600 x 400
M6/M8 Mounting Hardware: The Sanus QLF315-B2 comes with M6 and M8 size bolts of differing lengths to mount the bracket to your TV. Additional hardware may be required for your specific model of TV. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.
Steel Construction: The Secura QLF315-B2 wall-mount bracket is constructed of heavy-gauge steel with a durable powder-coated black finish. This solid construction provides strength and increased safety.

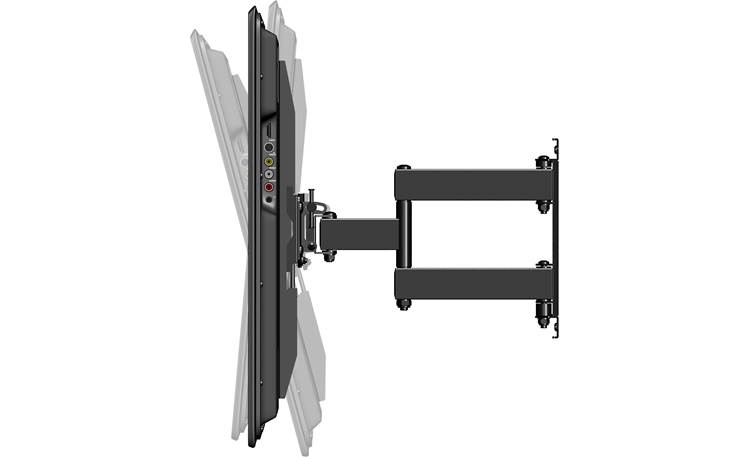

Full-Motion Design: The QLF315-B2 extends from the wall (3.5"-14.0625"), tilts up/down (+5°/-15°), swivels left or right (+/-45°), and rolls (+5°/-5°) for easy viewing anywhere in the room.
Installation Tools: The following tools are recommended for mounting the QLF315-B2:
- Tape measure
- Pencil
- Stud finder
- Level
- Awl
- Drill
- 7/32" Drill bit (for wood stud)
- 3/8" Masonry bit (for concrete block)
- 1/2" Socket wrench
- Phillips-head Screwdriver
- Hammer
The Secura QLF315 replaces these items
- supports TVs weighing up to 100 lbs.
- extends up to 14-7/8" away from wall
- tilt range: +5° to -15°; swivel range: ±50°
