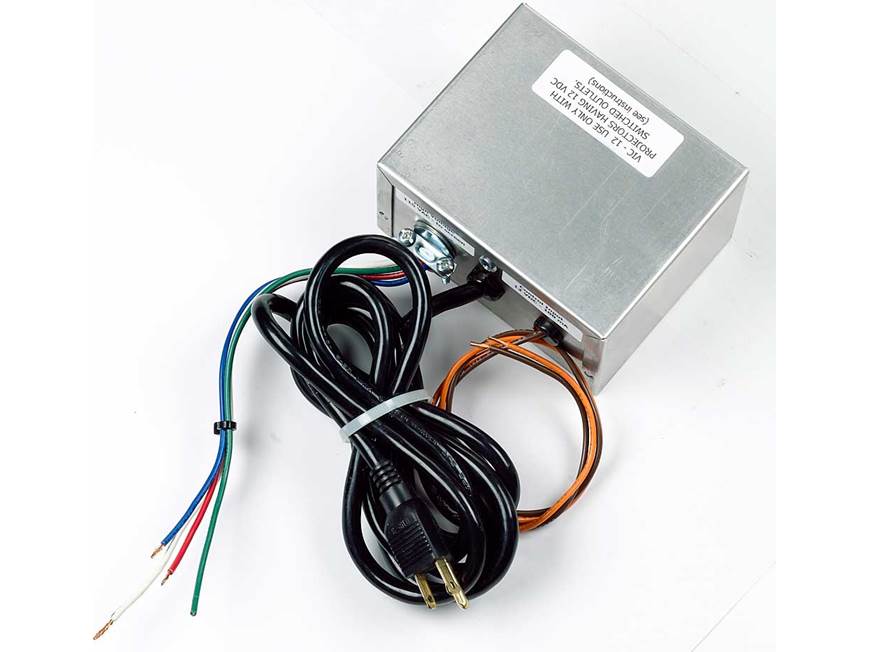

Product Overview: The Draper VIC-12 is a Video Interface Control which allows you to raise and lower a powered projection screen with a receiver or projector with a 12-volt trigger.

Connections: The VIC-12 has the following connections:

• AC Power Cord: The VIC-12 has a 7-1/2' heavy duty AC power cord to provide power to the module. The module should be plugged into a constant standard 115-volt AC outlet.
• 12-Volt Trigger Input: This 2-wire, 12-volt DC input receives a signal from the projector or A/V receiver when it is turned on. When the projector or receiver is turned off, the signal stops.
• High-Voltage AC Output: This 4-wire, 115 Volts AC output should be connected to the screen's motor terminals. The attached wires include:
  • Green: Ground
  • Blue: Motor up
  • Red: Motor down
  • White: Neutral

Operation: When the VIC-12 receives a 12-volt signal from the projector or receiver, the video interface control sends power to the screen motor to lower the projection screen. When the 12-volt signal is no longer sensed, the control sends power to raise the projection screen back to its stored position.

Compatibility: The VIC-12 is to be used only with projectors and receivers have 12 VDC switched outlets. Note: The VIC-12 requires a 100mA current from the projector trigger. It is not compatible with 20mA projector triggers used on some Sony, Panasonic, and Yamaha projectors.
