Crutchfield CK12 Amp Wiring Kit 12-gauge wiring kit for small compact amps and high-power car stereos — includes power wiring only

Item # 007CK12

Crutchfield's 12-gauge amplifier wiring kit contains the wire and hardware necessary to supply power safely,...

Crutchfield's 12-gauge amplifier wiring kit contains the wire and hardware necessary to supply power safely,...

Item # 007CK12

Every order includes

  • Free lifetime tech support
  • 60-day price-drop protection
  • 60-day returns
Temporarily out of stock
Expected: 7/25/2025
$19.99

Other options

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

About the Crutchfield CK12 Amp Wiring Kit

Buck Pomerantz

Product highlights:

  • wiring kit for power packs and high-power radios
    • RCA cables, remote turn-on lead, and speaker wire not included
  • maximum power ratings: Class AB: 140 watts RMS, Class D: 220 watts RMS
  • oxygen-free copper wires meet all ANSI and CEA standards
    • 17 feet (5.2m) of 12-gauge red power wire with ring terminal and in-line ATC fuse holder
    • 6 feet (0.9m) of 12-gauge black ground wire with ring terminal
  • 3 ATC fuses (15A, 20A, 30A)
  • assorted hardware
    • 6 feet (1.8m) of 12-gauge black split loom
    • 12-gauge firewall bushing
    • two 12-10-gauge butt connectors
    • six wire ties
  • warranty: 1 year
  • MFR # CK12
  • Item # 007CK12
  • California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

  • 17' Length of 12-gauge power wire with in-line fuse holder (red translucent jacket and terminated with ring-terminal on one end)
  • 6' Length of 12-gauge ground wire (black translucent jacket and terminated by a ring-terminal on one end)
  • 15-amp ATC fuse
  • 20-amp ATC fuse
  • 30-amp ATC fuse
  • Firewall bushing
  • Two 12-10 gauge butt-connectors (yellow)
  • 6' Length of split loom
  • Six 3" Zip ties

More details on the Crutchfield CK12 Amp Wiring Kit

Mark G.
The Crutchfield CK12 Amp Wiring Kit replaces these items:

Product Research

Features & Dimensions

Power & Ground Wire:

  • Gauge: 12 AWG
  • Wire Construction: Oxygen Free Copper (294 strands) -*only the ground wire is tinned
  • Length: 17' (Power), 6' (Ground)
  • Diameter: 0.185"

Terminals:

  • Terminal Type: Nickel-plated brass ring-terminal (on Power & Ground wire)
  • Terminal Diameter: Outer Diameter = 0.555", Inner Diameter = 0.325"

Fuses:

  • Fuse Type: ATC
  • Fuse Sizes: 15A, 20A, 30A (one of each)
  • Fuse Holder: In-line fuse holder on power wire

Included Accessories:

  • Grommet: 12 AWG firewall bushing
  • Butt-connectors: 10-12 AWG butt-connectors (2)
  • Loom: 6' length of 12 AWG split-loom
  • Wire-ties: 6

Installation Notes:

  • RCA cables, speaker wire, and remote turn-on lead not included (all sold separately).
  • Installation tools sold separately.

The Crutchfield CK12 Amp Wiring Kit replaces these items:


Adding...

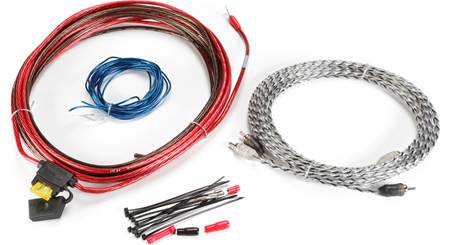

EFX ICAK12

EFX ICAK12

12-gauge amplifier/accessory wiring kit — includes power wiring and 2-channel patch cable
  • for low-power (up to 270 watts) amps and accessories
  • 12-ga. hybrid oxygen-free copper and copper-clad aluminum power and ground wires
  • fuse holder with 20-amp fuse

Adding...
Install Bay IBR38

Install Bay IBR38

12-gauge power and ground wire (20 feet red, 10 feet black)
  • 20-foot red power cable
  • 10-foot black ground cable
  • all-copper conductor

Loading accessories...

Customer Q&A

7 questions already asked

Q
How do I connect the wires to a new head unit and the wiring harnesses?
planelover  Mar 04, 2023
1 answer
A
When connecting a headunit to your vehicle using an amp wiring kit, the power wire (red) ran from your battery would typically connect to the constant 12V power wire (usually yellow) on the head unit. The ground wire (black) would typically connect to the ground wire (also black) on the back of your head unit as well as to the chassis of the vehicle. For detailed help determining if this is the correct solution for your project, please reach out to our advisors via online chat or phone at 1-800-324-9695
zachary  Mar 05, 2023 (Staff)
Q
can this power a 300 watt dual amp built into 10 subwoofer?
brian  Jul 30, 2021
2 answers
A
Yes this is a big enough gage wire for this application. Just make sure your connections are tight and that the inline fuse is not bigger than the one(s) on the amp
anthony  Aug 04, 2021
A
I was running a Rockford Fosgate 300.1 into a p2 sub with this wire but ended going with next size up due to the fact that my amp was getting really hot. -Not getting enough juice with that gauge wire. Hope this helps..
peter  Aug 01, 2021
Q
How do you connect this to a harness or a receiver? do you need to pull the power pin out of the receiver harness?
nate  Jun 25, 2020
1 answer
A
If you purchased the product from Crutchfield, feel free to contact our Tech Support team. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer.
kristina  Jul 10, 2020 (Staff)
Q
How do i determine what raring fuse to install in the line?
lionel  Apr 21, 2020
3 answers
A
I used a 10A fuse to power a 200w 2 channel amp. If you want to get scientific, you can start with the highest amp fuse and use a current probe to determine how much current your amp draws. Then choose the fuse accordingly.
angelo  May 05, 2020
A
The fuse is already installed in the red wire as you can see in the picture
timothy  May 05, 2020
A
If you purchased the product from Crutchfield, feel free to contact our Tech Support team. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer.
kristina  May 05, 2020 (Staff)
Q
Do you require this to install the amp to an OEM radio if you are using an amplifier Adapter Interface to Factory OEM?
raymond  Feb 19, 2020
1 answer
A
Yes, I used these cables on my installation. You might be able to buy them locally from someone else but it was handy that Crutchfield had everything I needed.
jon  Mar 11, 2020
Q
On the red cable, how far is the fuse holder from the crimped ring terminal? I don't want the installed fuse location to end up in some inaccessible recess behind my dash.
russell  Jan 04, 2020
2 answers
A
The fuse is approx 6" from a tag end of the coil so it will be accessible at the point of connection/termination
james  Mar 12, 2020
A
It's about 18" from my battery connection
ray  Jan 04, 2020
