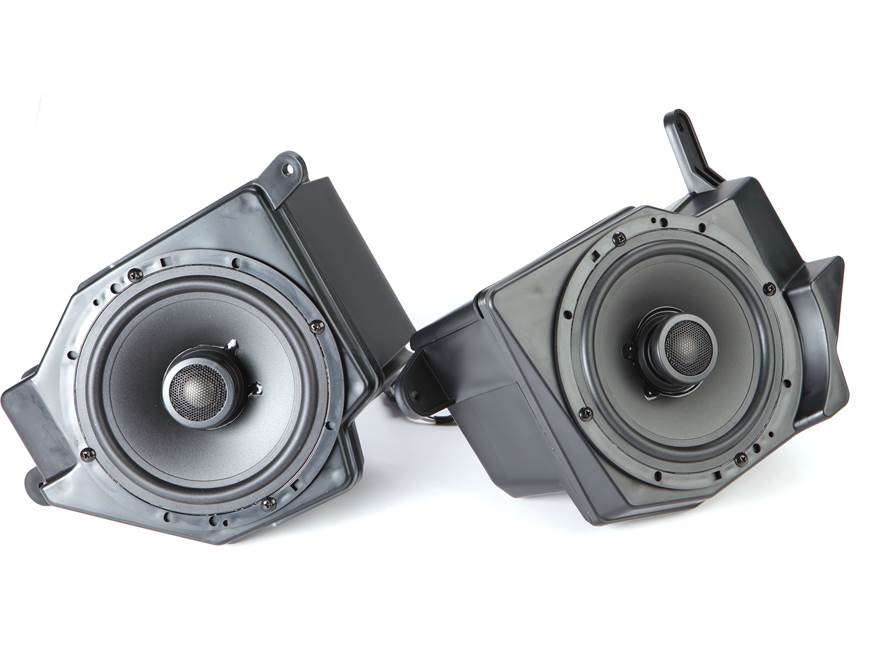

About the MB Quart JC1-116E

Take to the (off) road with better sound
Take to the (off) road with better sound
It's fun tricking out your Jeep for tooling around town or going overland. But before you start bolting gear onto the outside, why not improve the audio inside? MB Quart makes it well worth your time with their JC1-116E coaxial speaker packages. With simple hand tools, you can bolt these loaded enclosures right into the knee panel openings made for your factory speakers. But that's where the similarity ends — the 6-1/2" paper/mica woofers and titanium tweeters of these speakers kick out sound that'll make you realize exactly what you were missing before.
Plug 'em in
The sturdy composite speaker enclosures are specially tuned for the speakers, and come with factory-compatible plugs — no splicing required. MB Quart provides vehicle-specific instructions to eliminate the guesswork, too.
Installation Note: This is not a difficult installation, but it requires significant dash disassembly. If you don't have experience with this type of project, please consult a professional.
Product highlights:
- compatible with select 2018-up Jeep Wrangler and 2020-up Jeep Gladiator models
- Jeep-specific direct replacement enclosures for front lower dash
- 6-1/2" pop aerated paper and mica blend woofers
- 3/4" titanium dome tweeters
- Jeep wiring connector plugs
- composite construction tuned enclosures
- power handling; 100 watts RMS (200 watts peak)
- frequency response: 75-22,000Hz
- sensitivity: 89 dB
- impedance: 4 ohms
- warranty: 1 year
- MFR # JC1-116E
What's in the box:
MB Quart JC1-116E owner's manual
- One Driver's side speaker enclosure with OEM speaker harness attached (speaker installed)
- One Passenger side speaker enclosure with OEM speaker harness attached (speaker installed)
Customer reviews for MB Quart JC1-116E
Loading...
Loading reviews...
Average review:
5.0 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the MB Quart JC1-116E

Features & specs
General | ||
---|---|---|
Speaker Size | Vehicle-specific | |
Design | 2-way | |
Tweeter Design | 3/4" Dome | |
Impedance (Ohms) | 4 | |
Tweeter Composition | Titanium | |
Woofer Composition | Paper/Mica | |
Woofer Surround | Rubber | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 89 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 75 - 22k Hz | |
Minimum RMS Wattage | --- | |
Maximum RMS Wattage | 100 | |
Peak Power Handling (Watts) | 200 | |
Top-mount Depth (Inches) | N/A | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | --- | |
Mounting Height (Inches) | --- |
Product Research
Features
Overview: These speakers are mounted in sealed enclosures designed to install in the factory knee panel location in select 2018 and later Jeep Wranglers (JL) and 2020 and later Jeep Gladiators (JT). The enclosures replace the factory enclosures, which house 4" speakers.
Wiring: All the necessary wiring is attached to the enclosures. The six inch wire coming from each pod is terminated with a mate to the factory wiring harness.
Installation: Although no paperwork is included, a link to the installation instructions is under the Overview tab.
Loading...
Loading accessories...
Customer Q&A
Loading...
Loading articles...
Great product brought it to audio shop to get installed cause I figured it'd be best not to break things. Took them about 30 min to install. I have a sub and all my other speakers done these filled all the gaps system sounds amazing now
Cody from North Waterboro, ME
