About the MB Quart MBQJT-SUB-1

Product highlights:
- compatible with select Jeep Gladiator models
- replaces the Jeep under-seat storage compartment
- package includes:
- two 8" long-throw subwoofers
- High Density Polyethylene (HDPE) custom-fit enclosure
- total impedance: 4 ohms
- power handling: 500 watts RMS (1000 watts peak)
- frequency response: 50-250 Hz
- sensitivity: 89 dB
- dimensions: 7.19"H x 43.69"W x 9.13"D
- warranty: 1 year
- MFR # MBQJT-SUB-1
- Item # 049JTSUB1
What's in the box:
MB Quart MBQJT-SUB-1 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Custom fit enclosure loaded with two 8" subwoofers w/attached 4" wiring harness (terminated in a 2-pin Molex plug)
- 4" 2-Pin extension harness (male Molex on one end / female Molex on other end)
Featured video:
More details on the MB Quart MBQJT-SUB-1

Product Research
Features
Vehicle Compatibility: The MB Quart MBQJ-SUB-1 has been specifically designed to fit select 2020-up Jeep Gladiator (JT) vehicles. The custom subwoofer box mounts neatly under the rear seat using the OEM hardware, while still providing access to your jack and top parts. No modifications to your floor mats will be required either.

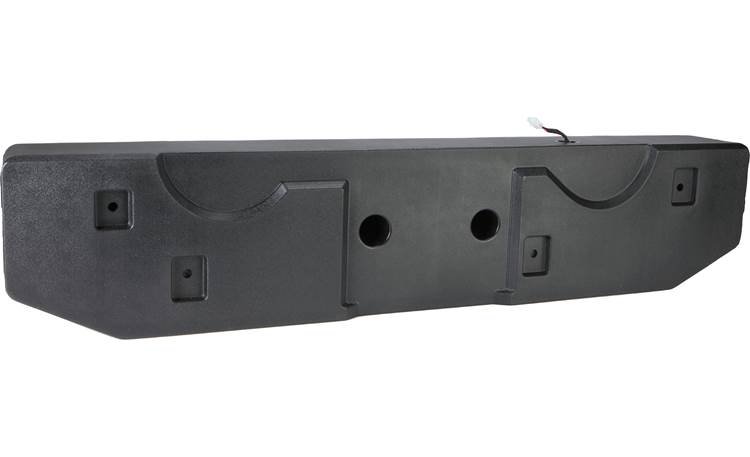

Enclosure: The custom MB Quart enclosure is constructed of high-quality HDPE (High Density Polyethylene), with 1.0 cu. ft. of internal airspace. It features a molded center support for added structural integrity. The enclosure has been configured to mount underneath the rear seat, in place of the OEM storage compartment, so no usable passenger space is taken up.
Note: The MBQJ-SUB-1 replaces the OEM under-seat storage compartment.
Power: The MB Quart subwoofer enclosure can handle 500W RMS (1000W peak) on its single 4Ω input.

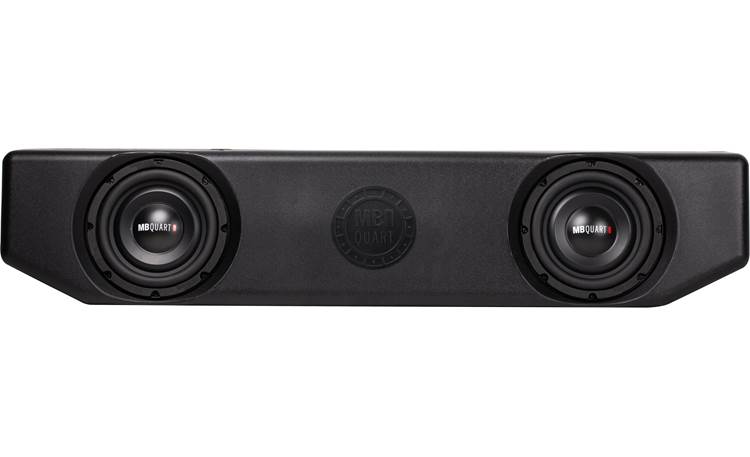

Dual 8" Subwoofers: The MBQJT-SUB-1 is outfitted with two MB Quart 8" long-throw woofers for powerful bass. The subwoofers feature an injection-molded, polypropylene cone with a rubber surround for added durability, excursion and bass response. The two 8Ω woofers are wired in parallel for a 4Ω load on the single input harness. A built-in 4" wiring harness with 2-pin Molex connector, along with a matching 4" Extension Harness, is provided for the input, letting you plug directly into select MB Quart amplifiers (sold separately). If connecting to another brand of amplifier, the Molex connector can be cut off and the bare-ended wire used.
