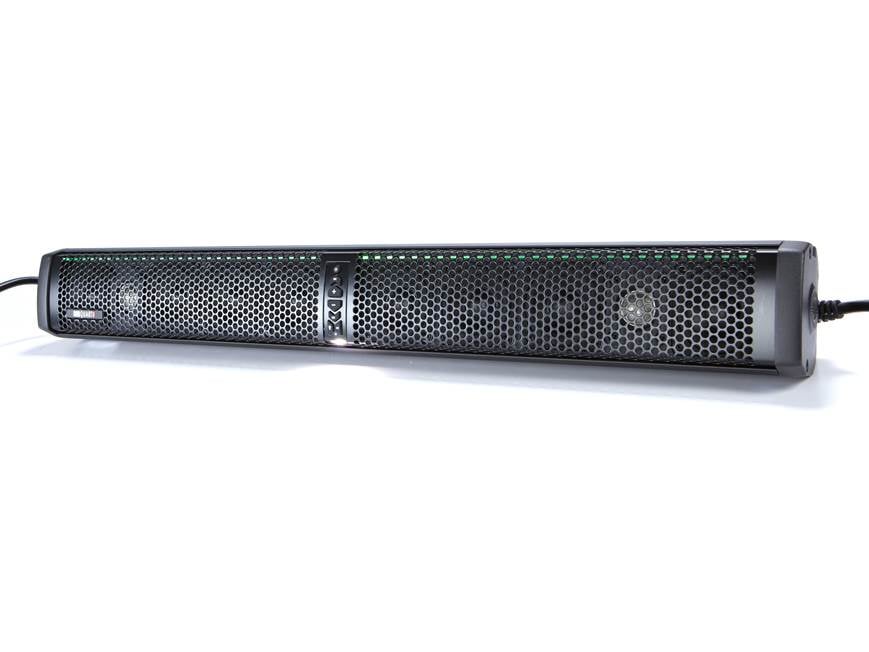

MB Quart Nautic NSB10V1

Features

Enclosure: The Nautic NSB10V1 features a marine grade chassis made of heavy-duty extruded aluminum and a perforated steel grill, offering maximum protection from the elements, bumps, and impacts. All wiring connections and mounting points are sealed, providing an IPX68 weatherproof rating.

Amp & Drivers: Designed specifically for powersports applications, the NSB10V1 includes a built-in Class-D amplifier that can deliver up to 30% more SPL than standard amplifier technology. The high-power digital amp powers eight 3" mid/bass drivers, with poly composite cones and butyl rubber surrounds, and two 1" titanium dome tweeters with neodymium magnets.

Bluetooth: The NSB10V1 includes built-in Bluetooth technology for streaming music from a Bluetooth enabled device. The soundbar's Memory Sync feature will remember the most recently connected device and will automatically re-connect to it when powered up with the device in range. Bluetooth range for the soundbar is up to 32 feet.

Note: The NSB10V1 does not support Bluetooth hands-free phone calls.

Inputs & Outputs: Along with Bluetooth audio streaming, the NSB10V1 also includes a 3.5mm stereo auxiliary input jack for running audio from a portable media player or headphone output jack. A pair of RCA outputs are also included for passing a full-range signal out to an additional amplifier or powered subwoofer (sold separately). Pre-outs are 2V with a fixed signal level. A Remote Out wire on the Power harness can be used for activating an outboard amp.

Controls: The NSB10V1 features large, center-mounted controls for Power, Track Forward/Back, Volume +/-, Play/Pause, and a Map Light button for illuminating the built-in LED map light. All buttons are rubberized for all-weather control, and are large enough to easily be used with riding gloves on.

RGB LEDs: A row of RGB LEDs above each speaker section can be activated by a single press of the Map Light button. Each press will cycle to the next available color, while pressing and holding the Map Light button activates the Map Light. RGB colors include: Blue, Purple, Red, Pink, Green, Light Green, Light Blue, Yellow, and White.  Three operation Modes for the RGB LEDs are available:

• Mode 1: All colors change slowly
• Mode 2: All colors blink
• Mode 3: Illumination is Off

Wiring: Wiring for the NSB10V1 includes a 77" harness for powering the soundbar, and a 17" input/output harness. Both sets of wires are encased in a heavy rubber sheath with sealed attachments to the soundbar, providing protection from water and mud ingress. Wiring includes:

• Red: +12V (Battery)
• Orange: +12V (Switched)
• Black: Ground
• Blue: Remote Out

Mounting: The NSB10V1 soundbar offers two mounting methods with hardware included for both.

• Surface-Mount: Two end brackets are included for mounting the soundbar to a flat surface. Attachment points on each end of the soundbar allow it to be tilted up or down before securing it tight.
• Roll Cage Mount: Three different size sets of mounting clamps are provided for attaching to roll cage tubing. Sizes include: 1-1/2", 1-3/4", and 2" diameter.
