About the MB Quart TS1-2810

Product highlights:
- compatible with select 2016-2023 Toyota Tacoma trucks (all trim levels)

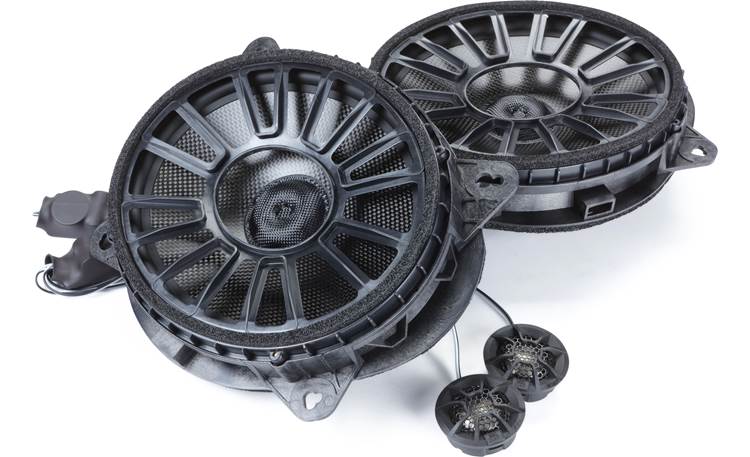

- includes two woofers, two tweeters, with inline and built-in crossovers
- replaces factory speakers in front locations

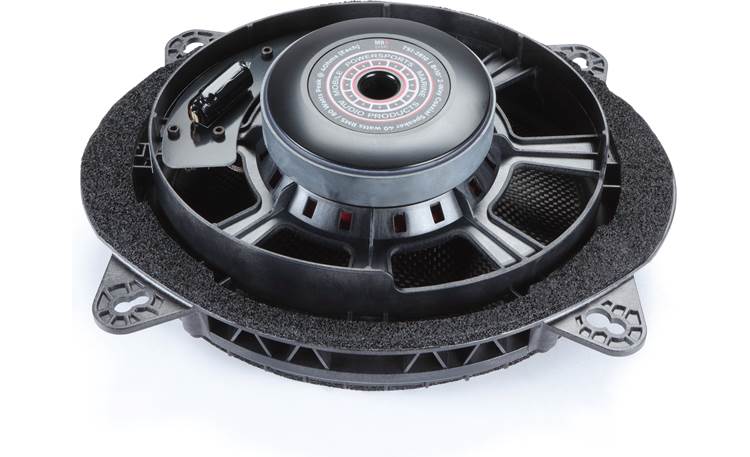

- 8"x10" fiber cone woofer

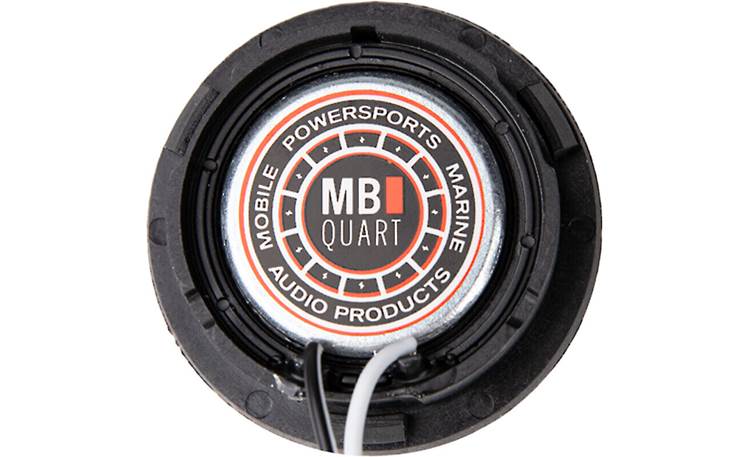

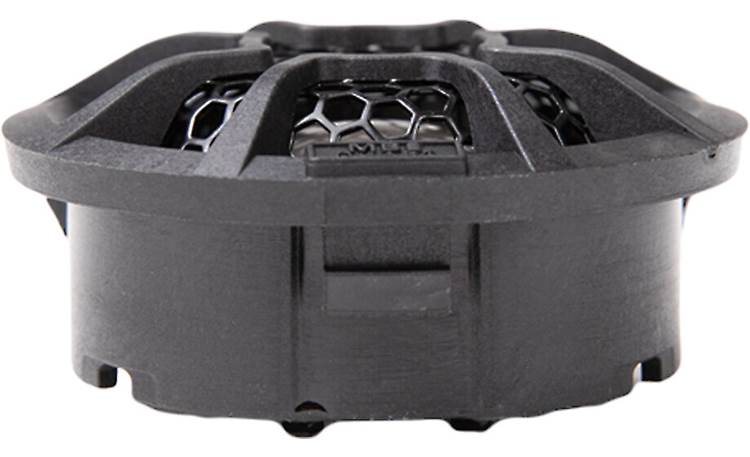

- separate 1" titanium dome tweeter with tunable waveguide tweeter housing
- Toyota wiring connector plugs and tweeter mounting brackets
Specs:
- power handling; 40 watts RMS (80 watts peak)
- frequency response: 50-20,000 Hz
- sensitivity: 89 dB
- impedance: 4 ohms

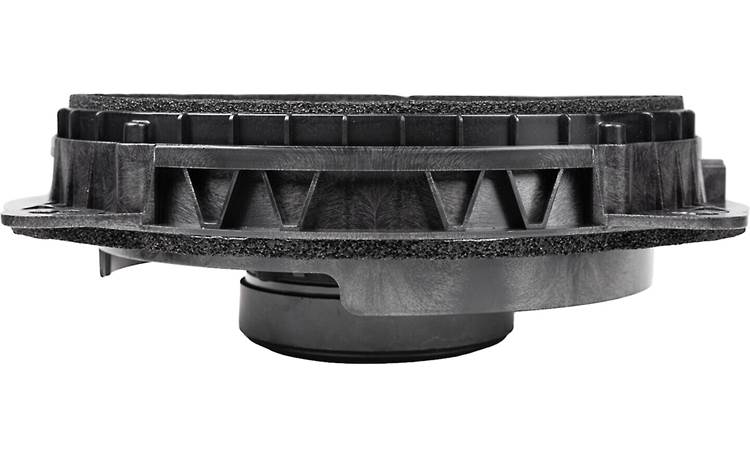

- woofer mounting depth: 1.908"
- grilles not included
- warranty: 2 years
- MFR # TS1-2810
- Item # 049TS12810
- California customers: Please click here for your Proposition 65 WARNING.

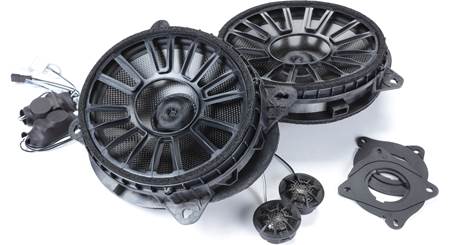

What's in the box:
MB Quart TS1-2810 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 2 Woofers

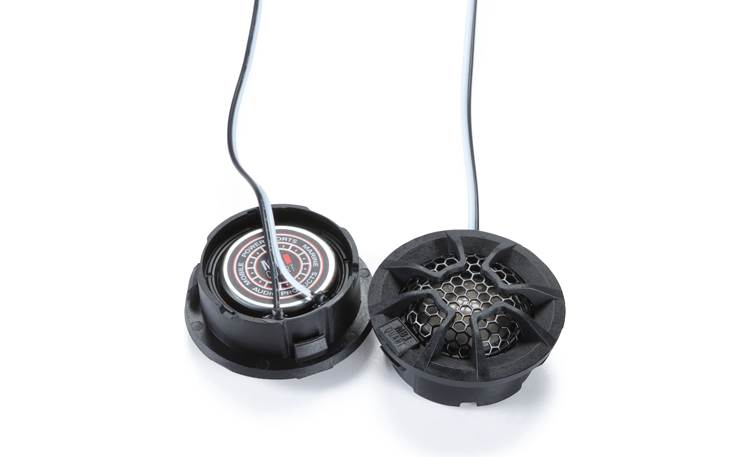

- 2 Tweeters (with 8" wire attached)

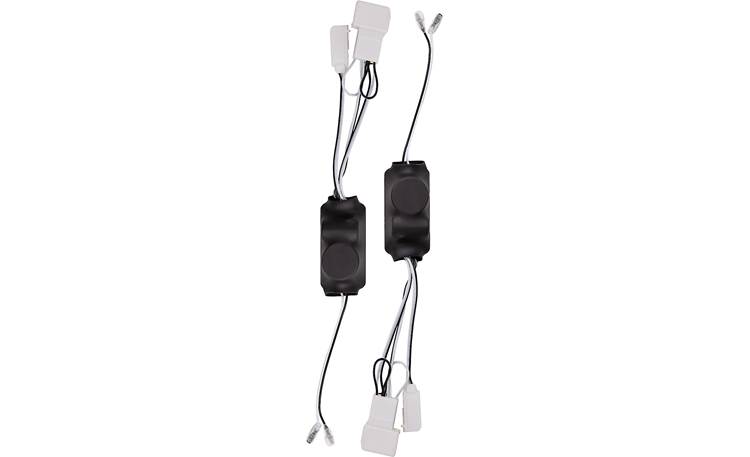

- 2 Tweeter crossovers (in-line)

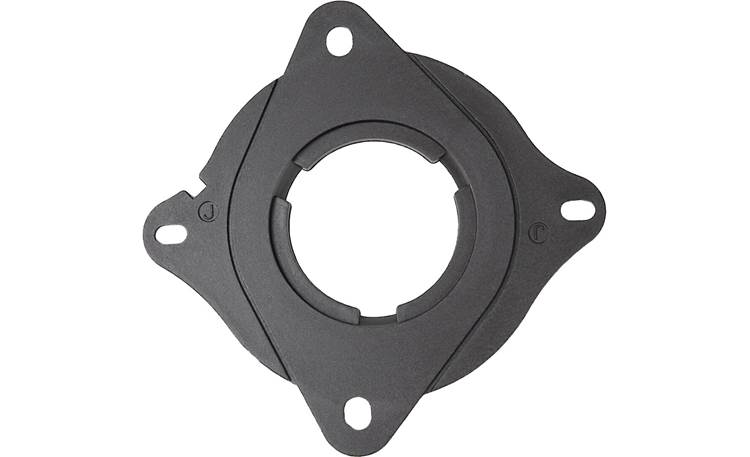

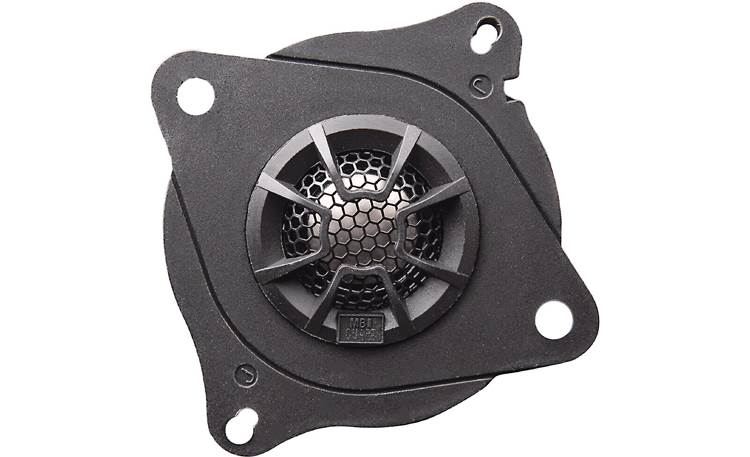

- 2 Tweeter mounting brackets
- QR code to installation instructions
More details on the MB Quart TS1-2810

Features & specs
General | ||
---|---|---|
Speaker Size | Vehicle-specific | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Fiber | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | 1" Dome | |
Tweeter Material | Titanium | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | 89 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 50 - 20k Hz | |
Maximum RMS Wattage | 40 | |
Peak Power Handling (Watts) | 80 | |
Top-mount Depth (Inches) | 1 15/16 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 1.417 | |
Frame Width | 8.45 | |
Frame Length | 10.41 |
Product Research
Features
Overview: MB Quart's TS1-2810 component speakers are designed for select Toyota, Lexus, and Scion models. Please enter your vehicle information to confirm fit.
Wiring: The included woofers have integrated crossovers and the same style input plug as the factory woofers, so the factory harness is directly compatible. The tweeters plug into the outputs of the included 12 dB/octave in-line tweeter crossovers. Each crossover has three inputs (only one is used). No cutting into the factory wiring is required.
Crossover Dimensions:
- Width: 1⅜"
- Height: ¾"
- Length: 2¾"-
Mounting: Both the woofers and tweeters are direct replacements for the factory speakers; no modifications or additional adapters are necessary. The factory screws are used to mount the new woofers.
Loading...
Loading accessories...
Customer Q&A
Loading...
Loading articles...
Easy install and the sound is so much better than the stock speakers in my Tacoma.
Chad from Dededo, GU
