About the Chief CMA101

Product highlights:
- compatible with Chief projector mount columns and other threaded 1-1/2" NPT columns
- 4" x 4" mounting pattern
- includes security set screw
- weight capacity: 500 lbs.
- 5"W x 3./4"H x 5"H
- weight: 0.9 lbs
- warranty: 10 years
- MFR # CMA101W
- Item # 051CMA101W
What's in the box:
- Ceiling plate
- 5/16"-18 x 3/8" threaded stud
- 5/16-18 x 5/16" threaded stud
- Hex-key
- Installation Instructions
More details on the Chief CMA101

Product Research
Features

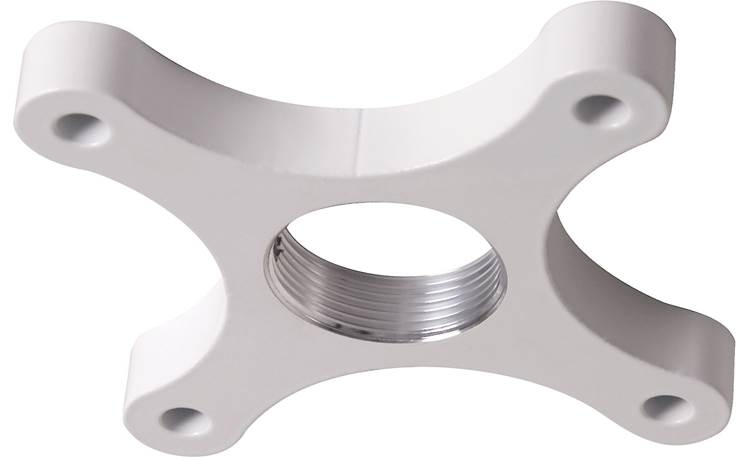

5" Ceiling Plate: The Chief CMA101 is a 5" ceiling plate with a 4" x 4" mounting pattern. It accommodates a 1-1/2" NPT column (sold separately) and can support up to 500 lbs.
Installation: The CMA101 mount is designed to be mounted to a wood stud or concrete ceiling, or suspended from a ceiling.
- It can be mounted to double 2" x 4" wood stud cross bracing between two 2" x 4" ceiling joists using 5/16" x 3-1/2" Grade 2 lag bolts (not included).
- It can also be mounted to a concrete ceiling with a minimum thickness of 8" and a maximum drywall covering of 5/8" using 5/16" x 3-1/2" Grade-2 lag bolts (not included) with UX10 or AF8 anchors (not included).
- In addition, it can be suspended from four 5/16"-18 Grade ASTM A307 or better threaded rods (not included) which are secured
to Unistrut (with a maximum span of 48") by 5/16" Grade-2 or better nuts (not included). Threaded rods must have 18 threads per square inch.
Loading...
Loading accessories...
Customer Q&A
1 question already asked
Loading...
Loading articles...
Well made ceiling mount. Must have blocking in place for wood frame construction at 4" on centers.
David from Fairbanks, AK
