Cobra CDR 895D

Features

Overview: The Cobra CDR 895D Drive HD Dual Camera system can record video in both directions simultaneously as you travel down the highway. The system includes a 1080p front camera and a 720p rear camera. You can use the secondary camera to record activity inside the vehicle, or aim it out the rear window to record what's behind you. The front camera includes a 2" LCD screen which allows you to view images from one or both cameras. The dash cam system operates via the supplied DC power/USB adapter.

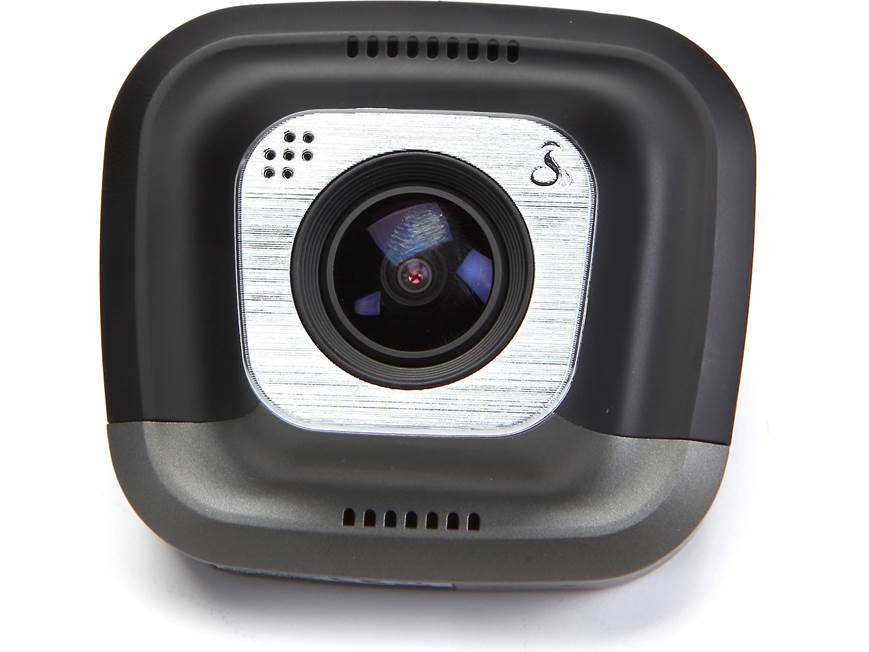

Front Camera: The front camera features an ultra-wide, 7-layer glass lens with a 160° angle of view. The camera's windshield mount swivels and rotates for precise aiming and front or rear recording. This gives you a wide view of the road, or inside the cab. The 2" LCD screen lets you view video as it is recording, or playback recorded video, from one or both cameras. The front camera measures 2-9/16" wide, 2-5/16" high, and 1-1/4" deep.

Rear Camera: The rear camera, or Cam2, has a 130° angle of view, and a video resolution of 1280 x 720 / 30 fps. It can be mounted in the front of the vehicle, facing inside, to record activities inside the vehicle, or to the rear window to view the road behind you. A Y-Splitter and 20-foot extension cable is provided for connecting the camera in the rear of the vehicle. The camera attaches via a 1" x 3/4" adhesive strip, and can be rotated for the best viewing angle. In the menu, you can flip the image of Cam2 horizontally or vertically, so that it appears correctly on the screen and in recorded files. The rear camera has the following dimensions: 2-1/4" length, 1" diameter, and 1-5/16" depth including mount.

Recording Resolution: The CDR 895D is equipped with a 4 megapixel CMOS image sensor that is capable of recording video up to Full HD and 2.1M still images. The still image resolution is the same as the chosen video resolution. You can choose from the following resolutions for video or still image recording:

• 1080P Full HD: 1920 x 1080 / 30 frames per second
• 720P HD / 60: 1280 x 720 / 60 frames per second
• 720P HD / 30: 1280 x 720 / 30 frames per second

Watermark: As the CDR 895D records, a watermark with a time/date stamp is embedded on all video recordings. No watermark is contained on photo files.

microSD Card: The audio and video are recorded onto a Speed Class 10 or higher microSD memory card up to 16 GB. A 16 GB microSD card is included with the Dual DashCam system.

Continuous Loop Recording: The CDR 895D will record in a continuous loop, overwriting old footage when the card becomes full until you save it. Footage is stored in 3, 5, or 10 minute clips. Clips are automatically protected if an impact is detected.

G-Sensor: A built-in 3-axis G-Sensor can detect when a collision has occurred and will automatically save your recording. If the G-Sensor is triggered and video is not being recorded, it will start recording video automatically. You can set the sensitivity of the G-Sensor from 0 (off), and 1 (easiest to trigger) to 3 (hardest to trigger).

Parking Mode: The Drive HD camera's parking mode uses the Motion Sensor and G-Sensor to trigger recording when motion or an impact is detected. This feature can be used with vehicles that have an always-on accessory port, or units that have been hardwired to power.

HDMI Output: The unit has a Mini HDMI output, allowing you to connect the camera to an HDTV for viewing photos and videos.

USB: The unit's USB port can be used to connect to your PC for file transfer, charge the battery, or to power the unit for recording or playback. Two lengths of USB cable are included: 21" and 10'.

Safety Warning Systems: The CDR 895D offers two collision avoidance warning systems that provide visual and audible warnings. The effectiveness of these warning systems depends upon analyzing video of the road ahead, and works best on clearly marked roads when visibility is good. The warning systems are simply for informational purposes, and will not alter the direction of the vehicle. The two systems include:

• Lane Departure: The Lane Departure Warning System (LDWS) will sound an audible and visual alarm if you approach a lane boundary. It will indicate whether you are departing the lane to the left or to the right.
• Collision Warning: The Frontal Collision Warning System (FCWS) will alert you if your vehicle is quickly approaching an obstacle in the road ahead. This warning system is only activated when the unit is connected to a compatible external GPS which can determine if you are traveling more than 35 miles per hour.

Menu Languages: The menu supports the following languages: English, Spanish, French, German, Dutch, Portuguese, Russian, Traditional Chinese, and Simplified Chinese.

Backup Battery: The built-in Lithium-Ion battery is intended to operate the unit for a short time after a power loss due to an accident or a crash. Recording will continue for at least 30 minutes, however, the battery is not intended for long-time recording on battery power.

Mounting: The CDR 895D comes with a suction cup mounting bracket for the front camera. The bracket has a tilting and ball/socket adjustment to allow you to position the camera for best visibility. It can be easily removed from the mount, if desired. The rear camera has an adhesive pad to attach the camera to the rear window or dashboard.
