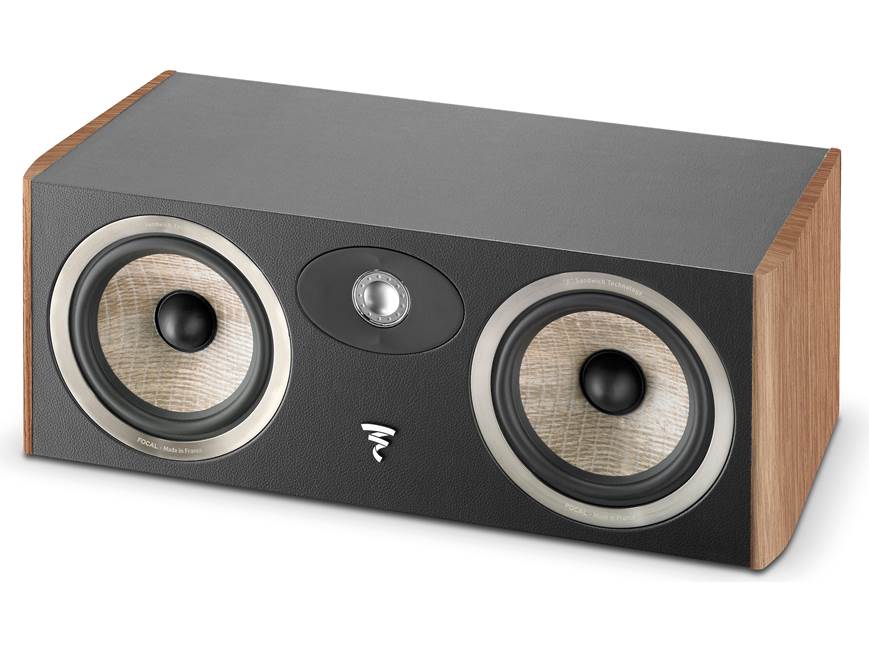

About the Focal Aria CC 900
The perfect sonic match for your Aria system
The perfect sonic match for your Aria system
If your 2-channel audio system is built around Focal's Aria speakers, the Aria CC 900 center is the natural choice for the move to multichannel. Like the Aria bookshelf and floor-standing models, it borrows advanced technologies originally developed for Focal's acclaimed Utopia speakers. Most importantly, it uses the Aria woofer and tweeter, guaranteeing seamless voice-matched sound across your front stage.
The woofer cones are made of a composite of flax and fiberglass.
Cone material combines old and new
Speaker makers continuously search for new and better materials for drivers. An ideal driver material has three qualities:
- lightweight, so it can accelerate quickly
- rigid, so that it moves like a piston, without bending
- well-damped, so that unwanted vibrations don't color the sound
In their pursuit of sonic excellence, Focal made a surprising discovery — right in their own backyard. Woven flax can form the core of a very rigid yet lightweight speaker cone. Some of the world's finest flax grows in fields near Focal's headquarters.
Focal creates this unique cone by sandwiching a layer of hollow flax fibers between two thin layers of fiberglass. The Aria CC 900's dual 6-1/2" woofers are made of this composite.
Inverted dome tweeter looks different, sounds terrific
The Aria CC 900 also features Focal's 1" aluminum/magnesium inverted dome tweeter. Inverting the dome brings more of its surface area closer to the voice coil. That means the voice coil can be smaller and lower in mass. Focal has found that this reduced mass allows the dome to move faster than a conventional dome, for better high-frequency response.
And the tweeter's lightweight Poron "memory foam" suspension improves damping, which reduces distortion in the critical 2-3kHz range by a factor of three, compared to a typical suspension.
Stylish, vibration-resistant cabinet
All Aria speakers feature ultra-rigid MDF cabinets with sturdy internal bracing and non-parallel sides. Focal takes these steps to eliminate the unwanted vibrations that lead to "boxy" colorations in the sound.
Built in-house for better quality and value
The speaker drivers in every Aria speaker are built in-house at Focal's facilities in Saint-Etienne, France. Why is that important? Because it gives Focal complete control over every aspect of design, manufacture, and quality control, resulting in a consistently superior, high-value speaker.
- 2-way design
- 1" TNF aluminum/magnesium inverted dome tweeter with waveguide
- dual 6-1/2" woofers with flax/fiberglass sandwich cones
- frequency response: 57-28,000 Hz (±3dB)
- recommended amplifier power: 40-200 watts
- sensitivity: 91 dB
- impedance: 8 ohms
- bass-reflex design with dual rear-firing ports
- binding posts accept pins, spade lugs, banana connectors, or bare wire
- removable magnetic cloth grille
- designed and built in France
- 20-15/16"W x 7-15/16"H x 11-3/16"D
- weight: 23 lbs.
- warranty: 5 years
- MFR # JMLARIACC900-PW
What's in the box:
- Center-channel loudspeaker
- 4 Rubber feet
- User Manual
Customer reviews for Focal Aria CC 900
Average review:5.0 out of 5 stars
Thanks for submitting your review
More details on the Focal Aria CC 900
Features & specs
|Tweeter Type||Inverted Soft-Dome|
|Tweeter Size (inches)||1|
|Midrange size (inches)||N/A|
|Woofer size (inches)||6-1/2|
|Connector Type||Binding post|
|Frequency Response||57-28k Hz|
|Parts Warranty||5 Years|
|Labor Warranty||5 Years|
Center Channel Loudspeaker: A center channel speaker is the keystone of a home theater system. It needs to bring precision and consistency between the visual image and the sound stage - Focal's Aria CC900 does just that. The Aria CC900 is a two-way center channel loudspeaker with the same acoustic characteristics as the other loudspeakers in Focal's Aria line-up. Combine the Aria CC900 center speaker with a pair of Aria series floorstanding speakers (926/936/948) or Aria 906 bookshelf speakers for the fronts, a pair of SR900 bipolar speakers for surround and/or surround back speakers, and Focal's SUB300P powered subwoofer (all sold separately) for a reference 5.1ch or 7.1ch home theater system.
1" TNF Inverted Tweeter: The Aria CC900 houses one TNF aluminum/magnesium inverted dome 1" tweeter with a Poron suspension and Urethane waveguide for smoother sound. The tweeter developed for the Aria 900 series uses Focal exclusive inverted dome technology, for optimal energy transfer and limited directivity. The dome's aluminum/ magnesium alloy guarantees outstanding stiffness and damping.
- Poron Suspension: The suspension between the dome and its bracket uses Poron, a material with shape memory. This suspension method is directly derived from the famous Utopia Beryllium tweeter, making it possible to reduce distortion by a factor of three in the 2-3kHz range, where the human ear has very great sensitivity. The mechanical properties of the new suspension system using Poron, an open cell polyurethane microcellular foam, provides numerous benefits - including excellent dimensional stability and no degradation over time. The advantages of the use of Poron in this tweeter are obvious in terms of linearity and distortion reduction. This leads to a silkier, more precise sound with greater harmonic richness.
- Urethane Waveguide: The tweeter mounting has an integral waveguide which maximizes horizontal directivity and minimizes diffraction. The Urethane waveguide improves horizontal directivity and provides a more precise sound image with an incredibly stable sound stage, making the listening position much less critical.
Note: The TNF tweeter uses a relatively flexible aluminum/magnesium alloy, with a "shape memory" enabling it to withstand the majority of small impacts in the home. Nevertheless, Focal recommends leaving the included grille in place to protect the dome. If the dome surface is marked this could have an impact on the tweeter.
Two 6.5" Flax Cone Woofers: The Aria 900 series benefits from Focal's Flax sandwich driver cones with injected Zamak baskets, making voices more intelligible with more depth. Flax is an eco-textile with astounding structural properties - it is light, stiff, and well damped for greater neutrality of timbres and better definition. The Aria CC900 is composed of two 6.5" woofers with Flax sandwich cones that provide natural midrange, rich bass, and high definition sound. These sandwich cones are made of high quality flax fiber enclosed by two thin layers of glass fiber. The lightness of the fiber satisfies the criteria of high internal damping, high velocity, and high flexural rigidity. Flax is twice as light as fiberglass, because the fiber is hollow. It also has very low elasticity which makes it ideal to increase the flexural rigidity of a sandwich structure.
Ultra-Rigid MDF Enclosures: The speaker cabinet features ultra-rigid MDF construction, internal bracing, and non-parallel side panels for a neutral sound with very little vibration or distortion. The cabinet utilizes a leather-finished front panel for its absorbent and acoustic diffraction qualities. The cabinet has no visible fixings; only a solid brushed metal ring surrounding the cone drivers and a matte-black urethane waveguide around the tweeter. The included fabric grille attaches magnetically. This carefully designed cabinet exudes style and quality, blending in perfectly with traditional or more contemporary interiors.
Twin Rear-Firing Ports: The Aria CC900 center speaker utilizes twin rear-firing aerodynamic ports for greater efficiency and bigger, deeper bass performance without distortion.
Binding Post Speaker Terminals: The Focal Aria CC900 center speaker is equipped with a set of heavy-duty binding post terminals that will accept bare wire (up to 10AWG), pin-connectors, spade-lugs, and banana plugs (single only). Two plastic inserts will need to be removed to use banana plugs.
Mounting & Placement Options: The center speaker must be positioned near the screen for realistic reproduction of dialog. It can be placed below or above the television. If a standard projection screen is used, the center speaker should be placed at the foot of the screen for best results. If a micro-perforated screen is used, it can be positioned behind the screen, towards the bottom half of the screen. The included rubber feet add approximately 0.125" to the overall height of the speaker.
Note: The Aria CC900 center speaker is recommended for rooms measuring from 215 sq/ft from a listening distance of 10 ft.
Made In France: The Aria 900 series of loudspeakers are developed and manufactured in France by Focal.
Break-In Period: The Aria 900 loudspeakers are complex mechanical assemblies which need a period of adaptation ("break-in") to operate at their best and to become acclimated to the temperature and humidity conditions of your environment. This break-in period varies depending on the conditions in question and may last for some weeks. To facilitate break-in, Focal recommends operating their speakers for approximately twenty hours consecutively. Once the loudspeakers' characteristics totally stabilize, you will be able to enjoy the Aria 900's performance to the fullest.
