About the Focal ISU 570
Upgrade with Focal quality
Upgrade with Focal quality
You're ready: to do away with unbearable factory sound and to gain a totally authentic experience listening to music in the car. With Focal's Universal Integration Series speakers installed in your car, a new era has begun — one in which it's easy to enjoy every moment of your drive. Focal provides such a dramatic boost in sound quality by applying much of the same technology in these car speakers that they use in their studio and audiophile-grade home systems.
Superior materials and design
Focal's ISU 570 5"x7" component speaker system employs a polyglass woofer cone to give you a warm, natural sound with enhanced strength for accurate playback with no added resonances. An aluminum/magnesium inverted dome tweeter, backed by an in-line crossover, delivers astonishing detail in the high range and integrates an acoustic horn design for an improved soundstage across your dash. Focal also gives you two mounting options for a smoother installation.
High sensitivity design
Planning to drive these speakers off a head unit? No problem. They're designed to take advantage of every bit of power supplied to give you the best audio quality possible. However, Focal's famous sound soars when powered by an aftermarket amp!
Installation note: You'll need a pair of our universal backstraps to install the tweeters in the factory locations.
Grilles are not included; the factory grilles should be suitable for most applications.

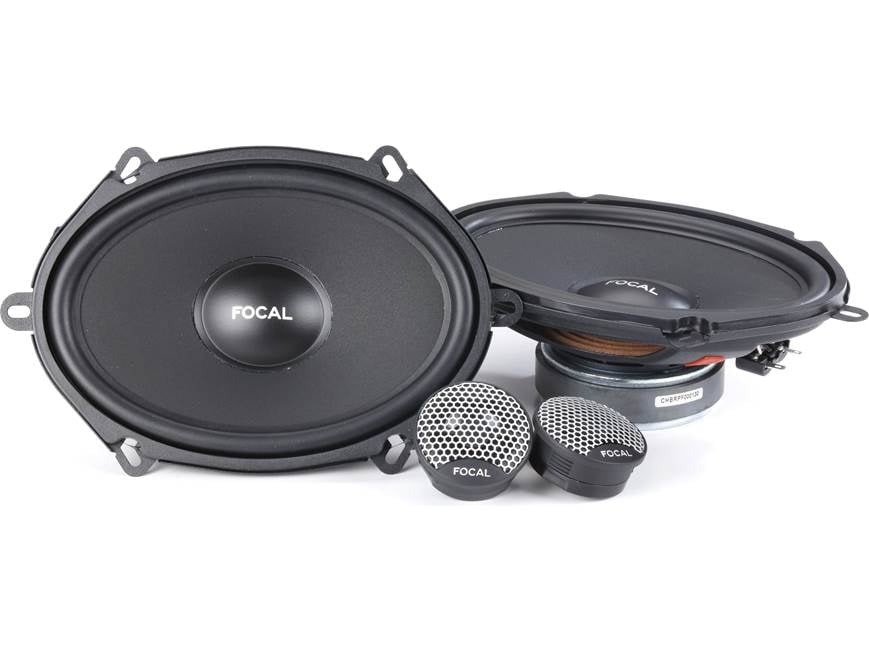

- component speaker system includes two 5"x7" woofers and two tweeters
- Polyglass woofer with butyl rubber surround
- processed aluminum inverted dome tweeter
- built-in crossovers
- 4-ohm impedance
- handles up to 70 watts RMS (140 watts peak)
- frequency response: 60-21,000 Hz
- sensitivity: 94 dB
- woofer top-mount depth: 2-3/8"
- grilles are not included; factory grilles are appropriate for most installations
- warranty: 1 year
- MFR # FOCAL ISU570
What's in the box:
- Two woofers
- Two inverted dome tweeters (each with 5" length of speaker wire attached)
- 2 Flush mount tweeter housings (with tweeters installed)
- 2 Angled surface mount tweeter housings
- Two 18" Lengths of speaker wire with in-line tweeter crossovers
- Two 7" Lengths of speaker wire with in-line woofer crossovers
- 2 Woofer mounting gaskets
- 8 Speed clips
- Four 1" Flathead screws
- Eight 1" Pan head screws
- User manual (English/ French/ German/ Italian/ Spanish/ Portuguese/ Dutch/ Russian/ Polish/ Arabic)
- Focal window sticker
Customer reviews for Focal ISU 570
Average review:4.5 out of 5 stars
Thanks for submitting your review
More details on the Focal ISU 570
Features & specs
|Tweeter Design||Inverted Dome|
|Woofer Surround||Butyl Rubber|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
|Sensitivity (1W at 1 meter)||N/A|
|Sensitivity at 2.83 volts||94|
|Frequency Response||60 - 21k Hz|
|Minimum RMS Wattage||---|
|Maximum RMS Wattage||70|
|Peak Power Handling (Watts)||140|
|Top-mount Depth (Inches)||2 3/8|
|Bottom-mount Depth (Inches)||2 3/4|
|Cutout Diameter or Length (inches)||0|
|Mounting Height (Inches)||0.329|
Polyglass Cone: The woofer cone has a cellulose pulp base and is coated with a uniform deposit of hollow glass microballs. The addition of the Polyglass layer significantly increases the cone's rigidity without adding much weight. This combination takes advantage of the accuracy and neutrality of the hard outer surface, but maintains the superior damping characteristics of the cellulose pulp.
Surround: The butyl rubber surround is resistant to ultraviolet rays, temperature extremes, and humidity to add to the speaker's reliability and longevity.
Mounting Applications: Focal describes these woofers as 5x7, but they also fit many 6x8 applications. Please enter your vehicle information to confirm fit.
Woofer Crossovers: The included 7" woofer wires have integrated crossovers. The woofer ends of the wires have female quick-slides that easily connect to the woofer terminals.
Inverted Dome Tweeter: The tweeter is an inverted aluminum and magnesium dome, producing a broad sound stage. The tweeter has a Neodymium magnet to provide a powerful magnetic field for the voice coil, while still maintaining the tweeter's compact dimensions.
Note: When flush mounted, the tweeters are pressure fit into the opening, with nothing holding them from behind, so the cutout diameter is very important.
Mounting Options: The tweeters include flush mount and angled surface mount housings:
|Flush Mount||Angled Surface Mount|
|Mounting Depth||0.658"||0.875" (screw depth)|
Tweeter Crossovers: The included 18" tweeter wires have integrated crossovers. The tweeter ends of the wires have quick-slide terminals that easily connect to the wires soldered to the tweeters. The input end of each wire has three leads, a negative and two positives. The positive leads are labeled Car and Display, with a lower output level from the Car lead (useful because the placement of the woofer in a typical car installation requires the tweeter output be lowered to maintain a balanced sound).
