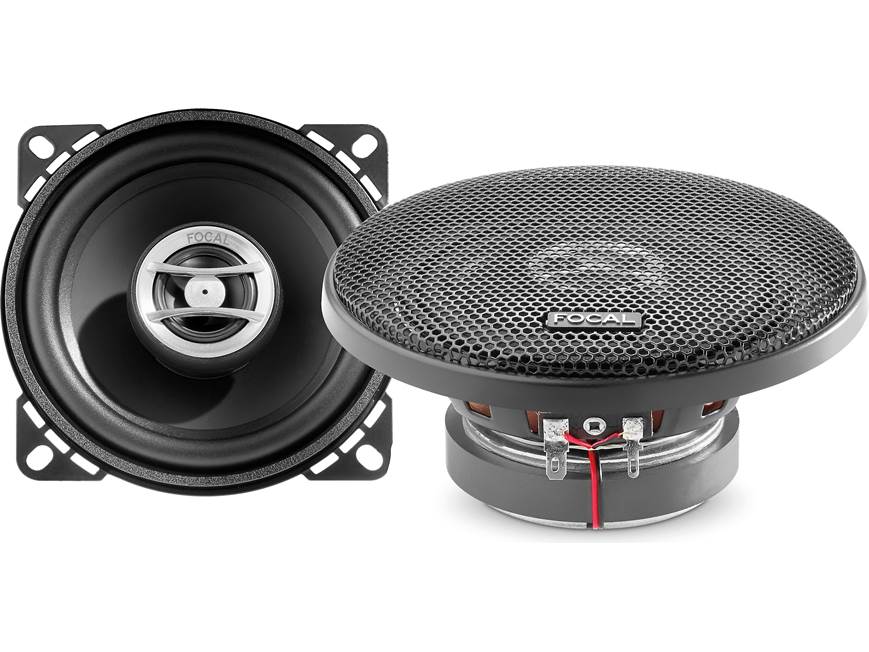

About the Focal RCX-100

The benefit of Focal innovation

Focal has incorporated their unique inverted dome tweeter into the Auditor Series.
The benefit of Focal innovation
Focal's acclaimed sound is coveted by audiophiles and recording studios worldwide, and their Auditor Series speakers bring that sound quality to your car at a competitive price. These impressive RCX-100 4" coaxial speakers will easily outperform your factory speakers and bring the fun back to your time in the car. Prepare for a new level of richness in the midrange, and Focal's acclaimed inverted dome tweeter will broadcast all your music's high-frequency details much more effectively than standard tweeter designs.
Built to last
A polypropylene woofer cone and butyl rubber surround ensure these speakers will live a long life in your car doors, withstanding all kinds of environmental abuse while delivering robust sound. Focal built these speakers with an extra-large voice coil and a powerful magnet so they can handle an honest 30 watts RMS. Handsome mesh grilles are also included in case you're planning on a custom installation.
Product highlights:
- 2-way car speakers (pair)
- 4" polypropylene woofer cone with butyl rubber surround
- 3/4" Mylar inverted dome tweeter
- rigid steel basket
- mesh/ABS mesh grilles included
- handles up to 30 watts RMS (60 watts peak)
- frequency response: 80-20,000 Hz
- sensitivity: 88 dB
- impedance: 4 ohms
- mounting depth: 1-15/16"
- warranty: 1 year
- MFR # RCX-100
What's in the box:
- Two 2-way speakers
- 2 Grilles
- 2 Grille mounting rings
- 8 Speed clips
- Eight 1" Screws
- Owner's manual (English/ French/ German/ Spanish/ Italian/ Portuguese/ Chinese/ Russian)
- Specifications printed on box
- Thank you note
Featured video:
Customer reviews for Focal RCX-100
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Focal RCX-100

Features & specs
General | ||
---|---|---|
Speaker Size | 4 | |
Design | 2-way | |
Tweeter Design | 20mm Inverted Dome | |
Impedance (Ohms) | 4 | |
Tweeter Composition | Mylar | |
Woofer Composition | Polypropylene | |
Woofer Surround | Butyl Rubber | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | N/A | |
Sensitivity at 2.83 volts | 88 | |
Frequency Response | 80 - 20k Hz | |
Minimum RMS Wattage | --- | |
Maximum RMS Wattage | 30 | |
Peak Power Handling (Watts) | 60 | |
Top-mount Depth (Inches) | 1 15/16 | |
Bottom-mount Depth (Inches) | 2 3/16 | |
Cutout Diameter or Length (inches) | 3 3/4 | |
Mounting Height (Inches) | 0.474 |
Product Research
Features
Woofer: The polypropylene cone and butyl rubber surround are resistant to the temperature extremes and humidity often found in the automotive environment, adding to the speaker's reliability and longevity.
Tweeter: Each speaker features a 20mm inverted dome Mylar tweeter for crisp highs.
4/2 Hole Compatibility: Most 4" factory speakers use four mounting screws, however, in some vehicles, only two are used. The RCX-100's mounting tabs can be removed, allowing installation in 4-hole or 2-hole applications. Care should be taken handling the speaker after any tabs are removed because the broken edges may be sharp. Please enter your vehicle information to confirm fit.
The Focal RCX-100 replaces these items

Focal Performance R-100C
- 4" polypropylene woofer cone with butyl rubber surround
- Mylar tweeter
- 2-30 watts RMS power range (60 watts peak)
