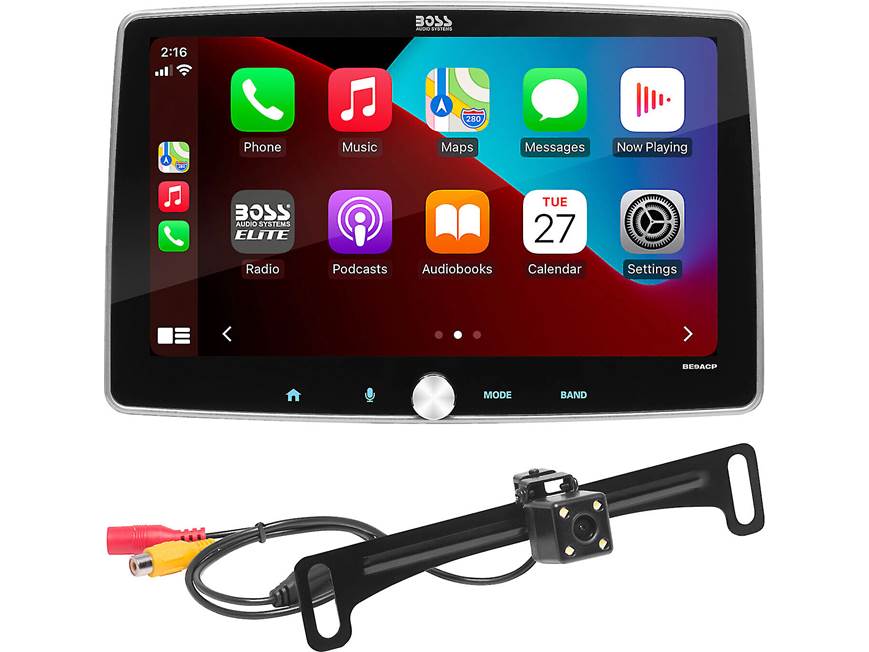

BOSS Audio BE9ACP-C Package Includes BE9ACP digital multimedia receiver with backup camera (does not play discs)

Touchscreen & Steering Wheel Control
Android Auto & Apple CarPlay
Built-in Bluetooth
USB/AV/Camera Connectivity
Audio & Tuner Section

Touchscreen & Steering Wheel Control

Two-Piece Configuration (Detachable): The Boss Elite BE9ACP digital multimedia receiver features a two-piece floating display configuration with an external 9" capacitive touchscreen monitor and a separate single-DIN (2") source unit. Separating the large touchscreen monitor from the chassis allows the BE9ACP to be installed in a standard single-DIN (2") dash opening. Unlike other floating screen designs where the touchscreen monitor is fixed to the source unit after installation, the BE9ACP's floating touchscreen monitor is detachable to deter theft (no protective case included); simply press the two buttons one the front-panel behind the monitor and disconnect the proprietary connector to detach the floating monitor from the source unit. The two components simply snap and connect back together when you are ready to use it again.

• Floating Touchscreen Monitor: The floating 9" touchscreen monitor connects to the front-panel of the single-DIN source unit once its mounted in the dash. Depending on your vehicle's factory radio location and the location of other factory equipment, you may need to adjust the mounting position of the touchscreen monitor in order to prevent impairment of vehicle driving operations. The floating touchscreen monitor offers horizontal (+/- 15 degrees), vertical (up/down) and tilt (+/- 25 degrees) adjustability to ensure the best fit and usability in your vehicle's dash. The touchscreen monitor measures 9.245" (w) x 5.895 " (h) x 1.855" (d).
• Single-DIN Source Unit: The source unit mounts in a standard single-DIN (2") dash opening using a vehicle specific kit (sold separately). The source unit contains all the BE9ACP's input and output connections. The included floating touchscreen monitor attaches to the source unit's front-panel insert and proprietary connector.

9" Capacitive Touchscreen: The 9" floating capacitive touchscreen monitor delivers a high-quality image with highly responsive touchscreen operation. It has a resolution of 1024 x 600 (614,400 total pixels) with a high contrast ratio, crystal clear display, and vivid text. Capacitive touchscreen operations include touch, swipe, and drag.

• Wallpaper & Background: You can select between 6 pre-loaded wallpaper backgrounds. You cannot download a custom image.
• Dimmer & Brightness Settings: You can manually adjust the LCD touchscreen monitor's brightness for day and nighttime viewing. You can also setup the unit to have the display dim when you turn your vehicle's lights on (the orange wire of the wiring harness must be connected to your vehicle's headlight circuit).
• Date & Time Display: The receiver offers date (Month/Date/Year) and time (12 or 24 hour) display.

Rotary Knob and Touch Sensitive Controls: In addition to its 9" capacitive touchscreen, there are 4 touch-sensitive buttons and a 3-way rotary knob along the bottom edge of the touchscreen that operate Power On/Off, Volume Up/Down, Voice Recognition (for Android Auto and Apple CarPlay), Home Menu, and AM/FM Band. The unit offers variable color button illumination; choose Red, Yellow, Green, Blue, Purple, or White.

Optional Steering Wheel Control: The unit features a SWC (steering wheel control) input which lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional Metra, Maestro, or PAC steering wheel control adapter (sold separately).

Android Auto & Apple CarPlay

Android Auto: Android Auto brings the most useful apps of your Android smartphone to the Boss BE9ACP in-dash receiver, making it easier for you to keep your main focus on driving. You can control things like navigation maps, phone calls, text messages, music, and more using the head unit's touchscreen or your voice and Google Assistant. With large touchscreen icons, a simplified user interface, and the Google Assistant, it's designed to minimize distraction so you can stay focused on the road. To use Android Auto, you'll need an Android smartphone running OS Oreo 8.0 or newer. Your compatible Android smartphone must be connected to head unit's rear-panel USB port (labeled "Apple CarPlay/Android Auto") and paired via Bluetooth. Click here to learn more About Android Auto and to see what phones are compatible

• Google Assistant: With Google Assistant on Android Auto, you can keep your eyes on the road and your hands on the wheel while using your voice to help you with your daily commute. Simply say, "Ok Google" or press the mic button to activate the Google Assistant. Use the Google Assistant to make a call, send a message, reply to a message, get driving directions, or listen to music.
• Navigation Maps: Use Google Maps to get where you're going with on-screen maps, voice-guided navigation, live traffic information, lane guidance, and more. You can use the unit's touchscreen or Google Assistant to select your destination and route. If you prefer, you can switch over to a simpler version of the community-based Waze navigation app (version 4.27 or higher).
• Calls & Messages: Android Auto's Google Assistant lets you stay connected while you're driving. The Google Assistant lets you use voice commands to call phone numbers and your favorite contacts, as well as read-reply-send text messages; all while keeping your hands on the wheel.
• Music Apps: Android Auto gives you access to your Android smartphone's music library via YouTube Music. You'll be able to browse music like you do on your smartphone with song/artist information display and album art. Use the receiver's touchscreen or the Google Assistant to select songs, artists, albums, or playlists. You also get access to select music apps on your Android smartphone; including Amazon Music, Tidal, Pandora, Spotify, iHeart Radio, Slacker Radio, Tune-In, and more. Music apps include song and station browsing, plus song/artist information and album art or station logo. Click here for a list of all compatible app for Android Auto.

Apple CarPlay: CarPlay is a smarter, safer way to use your Apple iPhone in your vehicle. CarPlay takes the things you want to do with your iPhone while driving and puts them right on the display of the in-dash receiver. You can use the head unit's touchscreen or your voice and Siri to get directions, make calls, send and receive messages, and listen to music - all in a way that allows you to stay focused on the road. You'll need to connect your compatible iPhone 5 or newer (running iOS 7.1+) to the head unit's rear-panel USB port (labeled "Apple CarPlay/Android Auto") using an Apple Certified USB-to-Lightning cable.

• Maps: Apple Maps will be mirrored on the screen, including traffic information and estimated time to destination. Use the head unit's touchscreen or ask Siri to get turn-by-turn directions. You can search by address, favorites, recents, points-of-interestes, and more. CarPlay can even predict where you most likely want to go using addresses from your email, text messages, contacts, and calendars. You can also choose to navigate via Google Maps or Waze instead of CarPlay. Google Maps and Waze do not support Siri voice control, but will have there own proprietary voice control function which has to be accessed through a touchscreen icon on the receiver.
• Phone: Use the head unit's touchsceen or ask Siri to make calls, return missed calls, and listen to voicemail messages. Caller ID information will be displayed on the receiver's touchscreen. You'll carry on your side of the conversation through the included microphone, while the other party is heard through your vehicle's speakers.
• Messages: Ask Siri to send, read, and reply to text messages. This hands-free operation minimizes distraction and allows you to keep hands on the wheel and eyes on the road. Text messages cannot be read or typed from the head unit's touchscreen to prevent driver distraction.
• Music: You can access music by artist, song, playlist, and more through the receiver's touchscreen or via Siri. The receiver will dispaly artist/song/album information (including album art in the background). You can access your iPhone's iTunes music library, as well as Apple Music. In addition, you can access other music apps that you have on your iPhone; including Amazon Music, Tidal, Pandora, Spotify, iHeart Radio, TuneIn Radio, SiriusXM, Slacker Radio, & more.
• Apple HomeKit: CarPlay now supports control of Apple HomeKit enabled devices (sold separately) through Siri. Using CarPlay in your vehicle, you can ask Siri to close or open your garage door, turn on or off home lighting, increase or decrease the temperature of your thermostat, as well as control select functions of other Apple HomeKit enabled devices and appliances. Click here for a list of compatible Apple HomeKit products.
• Other Applications: In addition to navigation and music apps, Apple CarPlay supports a variety of other applications ranging from Podcasts, Audiobooks, Sports, News, Weather, and More.

Smartphone Charging: The Boss Elite BE9ACP will also charge (5V/1.5A) your Android Auto compatible Android smartphone or Apple CarPlay compatible iPhone while connected via USB with the vehicle's ignition switch set to the 'ACC' or 'On' position.

Built-in Bluetooth

Bluetooth 4.2+EDR: The Boss Elite BE9ACP is equipped with built-in Bluetooth 4.2+EDR allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles:

• Hands-Free Communication: HFP 1.6 (Hands Free Profile), PBAP 1.0 (Phone Book Access Profile).
• Audio Streaming: A2DP 1.2 (Advanced Audio Distribution Profile), AVRCP 1.5 (Audio/Video Remote Control Profile).

Secure Simple Pairing: With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the Boss head unit without having to enter pin codes or go through complicated settings. You can pair up to 5 devices, but only 1 device can be connected and used at a time. When an already paired Bluetooth device is in close proximity to the receiver, the auto connection function automatically connects the unit.

Hands-Free Communication (External Mic): The Boss Elite BE9ACP allows for wireless communication between the head unit and your Bluetooth enabled smartphone. Thanks to the latest Hands-Free Profile (HFP 1.6) with wideband speech capability, the BE9ACP provides more natural sound quality and details during wireless calls. The receiver will display the caller's phone number and an audible ring tone will be heard through your vehicle's speaker during an incoming call. You can manually answer or end a call through the head unit's front-panel controls (or set the receiver to automatically answer the call). The BE9ACP allows you to carry on the phone conversation using the included external microphone and your car audio speakers. Your music will mute automatically during a call. You can make a call using the Boss receiver's LCD touchscreen via its on-screen keypad, your phone's transferred phonebook, or a list of your most recent calls.

Wireless Audio Streaming: The Boss Elite BE9ACP allows wireless play back of stored music and music apps from your Bluetooth enabled smartphone, tablet, or other device using a Bluetooth connection. You can control basic music playback functions, like Play/Pause & Previous/Next Track from the Boss head unit (advanced music browsing will still be done from your Bluetooth source device). The unit will also display song/artist information (no Album art).

USB/AV/Camera Connectivity

USB MSC Playback: The Boss Elite BE9ACP is equipped with a rear-panel USB (type-A) port attached to the rear-chassis via a hardwired 39" pigtail (labeled "USB/Charging"). The USB port allows for connection of a USB mass storage class device; such as a USB thumbdrive (up to 64GB) formatted in FAT32. The unit supports playback of a variety of music, video, and photo files loaded onto a compatible USB msc device. You can search by folder or file, control playback functions (such as Play/Pause & Previous/Next Track), well as view song/artist information - including album art. USB portable devices that can be charged via USB will be charged when plugged into the receiver's USB port (5V/1.5A), and the vehicle's ignition switch is set to ACC or On.

• This USB port (labeled "USB/Charging") is not compatible with Apple iOS devices, Android devices, USB hubs, or card-readers.
• The other USB port labeled "Apple CarPlay/Android Auto" cannot be used with a USB thumbdrive for media playback.

Compatible Media Types: The Boss Elite BE9ACP supports the following audio, video, and photo files loaded onto a USB MSC device.

AV Input: The Boss Elite BE9ACP features a rear-panel AV input which consists of a composite video jack and stereo RCA jacks for connecting an external portable audio/video source.

Included Backup Camera: The Boss Elite BE9ACP is equipped with a composite video camera input for connecting the included ELPC40B backup camera with license plate bracket. The included backup camera features an integrated bracket which attaches directly to the front of your vehicle's existing license plate frame. When the included camera is connected to the BE9ACP, the backup image is displayed on the integrated 9" LCD screen when your vehicle is placed in reverse gear (purple/white wire attached to rear chassis must be connected to vehicle's backup lights). Automatic video switching can be set to 0.1, 0.5, 1, or 2 seconds. The unit will also display on-screen guidelines to assist you when backing up.

• Effective pixels = 628 x 586 (368,008 total)
• Wide viewing angle = 170° (horizontal)
• Minimum illumination = 0.5 lux (4 LEDs surround camera lens)

Front Camera Input: The BE9ACP also features a second composite video camera input that can be used for connecting a front camera or dash cam (sold separately).

Audio & Tuner Section

20W x 4Ch Amp: The Boss Elite BE9ACP receiver is equipped with a 20 watt (RMS) x 4 channel amplifier. The receiver's internal amplifier can be turned off to reduce noise when only using the head unit's pre-outs.

6Ch/4V Pre-outs: The Boss Elite BE9ACP features front, rear and subwoofer 4.0-volt pre-outs. The front and rear speaker pre-outs are balance and fade adjustable. The subwoofer pre-outs output are non-fading.

Sub Control w/ Low Pass Crossover: The head unit's subwoofer pre-out utilizes its own low pass crossover which can be set to 50Hz, 80Hz, 120Hz, or 160Hz. You can adjust the subwoofer output's level (-14 to +1) independently from the overall volume.

EQ: The receiver offers 6 EQ presets - User, HipHop, Pop, R&B, Rock, and Jazz. The User mode allows you to manually adjust the head unit's 10-band EQ (32, 63, 125, 250, 500, 1k,2k, 4k, 8k 16k Hz) from -6dB to +6dB.

Loudness: The Loudness feature enhances high & low frequencies at lower volume levels.

Source Level: You can independently adjust the source level (0-32) of the Radio, USB, Bluetooth, AV In, Android Auto, and CarPlay for smoother volume level transition between sources.

Default Volume: You can set the turn-on and default volume of the head unit's Main Source, Bluetooth Phone (Talk/Ring), Navigation Voice Prompts, and Voice Control Assistants (Siri/Google) from 0 to 50.

AM/FM Tuner: The Boss Elite BE9ACP features a built-in AM/FM tuner with manual, seek, and preset tuning. You can store up to 10 FM and 10 AM station presets. You can store your presets manually or have the receiver do it for you automatically. The tuner features selectable North America and European tuning.

Beep Tone: The in-dash receiver provides an audible beep to confirm operation. This function can be turned On or Off.
