Boss BV775B DVD receiver

Item # 104BV775B

With Boss's BV775B DVD receiver, you don't have to abandon your favorite discs. The receiver's 6.95"...

Find what Fits your vehicle


Checking fit...

With Boss's BV775B DVD receiver, you don't have to abandon your favorite discs. The receiver's 6.95"...

California customers:
Please click here for your Proposition 65 warning.

19 questions - 19 answers

Item # 104BV775B

Shop all BOSS Audio In-dash DVD Receivers

About the Boss BV775B

Alexander H.

Bring your DVDs and CDs into the rotation

With Boss's BV775B DVD receiver, you don't have to abandon your favorite discs. The receiver's 6.95" touchscreen display makes controlling your DVD, CD, microSD, and USB sources easy. Plus, a 5-second electronic skip protection buffer minimizes interruptions when you hit that surprise pothole.

Bring your DVDs and CDs into the rotation

With Boss's BV775B DVD receiver, you don't have to abandon your favorite discs. The receiver's 6.95" touchscreen display makes controlling your DVD, CD, microSD, and USB sources easy. Plus, a 5-second electronic skip protection buffer minimizes interruptions when you hit that surprise pothole.

Take and make calls

Bluetooth lets you take and make calls while keeping your hands on the wheel — an awesome safety feature when you're making your daily commute. The sensitive built-in microphone on the faceplate simplifies installation. And the Bluetooth connection makes it easy to wirelessly stream your music!

Your video options

You can use the 6.95" screen to view DVDs when your car is parked. If you want to take your show on the road, connect video screens (not included) to the pair of rear video outputs and keep your backseat passengers entertained. Add an optional backup cam and you can use your new in-dash display to help back into tight parking spots.

And more entertainment

In addition to discs, you can play music and video from a loaded-up USB drive or microSD card, or use the front auxiliary input to connect a portable music player. This Boss includes an 8-band EQ and presets for quick tone changes. To get more impact out of your system, use the three sets of preamp outputs to connect amplifiers to your speakers.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.


Product highlights:

    General Features:
    • DVD/CD receiver with AM/FM tuner
    • built-in internal amp (20 watts RMS/80 peak x 4 channels)
    • 6.95" touchscreen with icon-based controls
    • fits double-DIN dash openings
    • wireless remote
    Smartphone Features:
    • built-in Bluetooth for hands-free calling and audio streaming
    Audio/Video Features:
    • plays CDs, DVDs, microSD cards, and USB memory devices
    • 8-band equalizer
    • inputs: front USB input, front auxiliary input, front microSD card slot, rear audio/video (RCA) inputs, rear-view camera input
    • outputs: two rear video (RCA) outputs, 6-channel preamp outputs (3-volt front, rear, subwoofer)
    Other Information:
    • warranty: 5 years (3 years Canada)
    • MFR # BV775B

    What's in the box:

    • DVD receiver w/ integrated 6.95" monitor (15A fuse)
    • Trim-ring (installed)
    • Power harness
    • Speaker harness
    • Nav/Camera harness
    • Remote control (CR2025 3V battery installed)
    • 2 Side-brackets
    • 8 ISO-screws
    • Rear-support stud
    • Hex-nut
    • Rubber boot
    • User's Manual. Warranty/Registration Card

    Customer reviews for Boss BV775B

    Loading reviews...

    Average review:

    4.0 out of 5 stars
    92 reviews

    Thanks for submitting your review

    Filter by rating

    Customer photos

    Customer provided image, click to load a larger version.
    Customer provided image, click to load a larger version.

    Sort reviews

    Sort by:
    Items per page:
    View page:

    Verified customer (What's this?)
    Verified employee review (What's this?)

    Reviewed on

    This review was collected as part of a promotion



    Crutchfield response
    Customer provided image, click to load a larger version.
    << >>

    More details on the Boss BV775B

    Stacey B.

    Features & specs

    AUX Input Mini (front), RCA (rear)
    Audio/video Input RCA (rear)
    USB Input Front
    USB Port Power 1A
    Backup Camera Input Yes
    Second Camera Input Yes
    CarPlay No
    Android Auto No
    Siri Control No
    Alexa Voice Control N
    Android Control Yes
    Memory Card Slot USB, microSD
    Bluetooth Compatible Built-in
    Satellite Radio Ready No
    HD Radio No
    Navigation No
    iPod Compatibility
    Full size N/A
    Nano N/A
    Touch N/A
    iPhone N/A
    RMS Power (CTA-2006) N/A
    RMS Power (Manufacturer) 20 watts
    Peak Output 80 watts
    RMS Power Bandwidth 20-20kHz
    Preamp Outputs 6-channel
    Sub Preamp Outputs Yes
    Switchable Rear Preamp Outputs No
    Video Screen Yes
    Navigation App Compatible (iOS) N
    Navigation App Compatible (Android) N
    Preamp Voltage 3 volts
    Screen Size 6.95
    Screen Type Basic (Resistive)
    Display Color
    Key Button Color Variable
    EQ Bands 8
    Wireless Remote Yes
    Steering Wheel Control Compatible Adapter required
    Parts Warranty 5 Yr (US), 3 Yr (CA)
    Labor Warranty 5 Yr (US), 3 Yr (CA)
    FM Sensitivity ---
    European Tuning Yes
    Seek/Scan Seek
    Radio Data System No
    File Playback
    Music File Playback MP3, WMA
    High-res Playback N
    The Boss BV775B replaces these items:

    Product Research

    Touchscreen & Remote Control
    Bluetooth & Mirroring
    Disc/microSD/USB Playback
    Audio & Tuner Section
    AV & Camera Connections

    Touchscreen & Remote Control

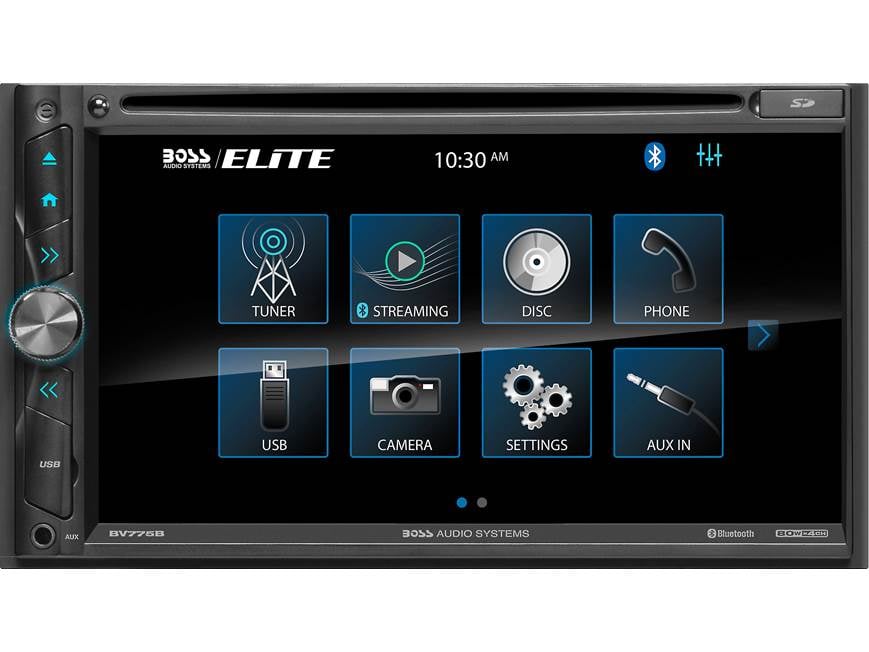

    6.95" LCD Touchscreen: Boss BV775B DVD receiver features a fixed 6.95" widescreen touchscreen LCD monitor. The screen has a resolution of 800 RGB x 480 with 1,152,000 total pixels. This unit has touchscreen controls with interactive video graphics, making menu navigation easy.

    • Wallpaper/Backgrounds: You switch between 7 preset wallpaper/backgrounds.
    • Display Adjustment: You can manually adjust the LCD monitor's brightness and contrast from 0-35.
    • Auto Dimmer: You can also setup the unit to have the display dim when you turn your vehicle's lights on (the orange wire of the wiring harness must be connected to your vehicle's headlight circuit).
    • Date & Time: You can set the unit to display a 12 or 24 hour clock, as well as program in the year, month, & day.
    Note: For safety reasons, you cannot view a video source on the built-in LCD screen as long as the vehicle is in motion. In order to display video, the light green wire (within wiring harness) must be hardwired into the vehicle's parking brake light circuit, and the vehicle's parking brake must be engaged.

    Hard-Key Controls w/ Variable Color Illumination: In addition to the unit's LCD touchscreen controls, the BV775B also features hard-key controls on the left edge of the screen (including a 3-way rotary audio control). You can select from a variety of colors for the button illumination. Choose from Green, Blue, Red, Yellow, Cyan, Fuchsia, White, or Auto. The Auto setting will randomly cycle through all the colors.

    IR Remote: The Boss BV775B includes a 28-button IR remote control for complete wireless operation of the DVD receiver.

    Optional Steering Wheel Control: The unit features a SWC (steering wheel control) input which lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional Metra, PAC, or Maestro steering wheel control adapter (sold separately).

    Key Beep: The in-dash receiver provides an audible beep to confirm operation This function can be turned On or Off.

    Bluetooth & Mirroring

    Bluetooth Technology: The Boss BV775B DVD receiver is equipped with built-in Bluetooth 4.2, providing hands-free communication and audio streaming for added convenience and safety in the vehicle. Before using the unit's Bluetooth functions, you must pair your Bluetooth enabled mobile phone or audio device to the BV775B. Due to the differences in Bluetooth technology, some mobile devices may be incompatible, function improperly, or may not support all features when used with the Boss BV775B.

    • Hands-Free Communication (w/ Integrated Mic): The Boss BV775B allows for wireless communication between the head unit and your Bluetooth enabled smartphone. The head unit will display the caller's phone number and an audible ring tone will be heard through your vehicle's speaker during an incoming call. You can manually answer or end a call through the head unit's touchscreen. The BV775B allows you to carry on the phone conversation using the head unit's integrated microphone and your car audio speakers. Your music will mute automatically during a call. You can make a call using the Boss receiver's LCD touchscreen via its on-screen keypad, your phone's transferred phonebook, or a list of your most recent calls.
    • Wireless Audio Streaming: The Boss BV775B also allows you to play back stored music and music apps from your Bluetooth enabled smartphone, tablet, or other device using a Bluetooth connection. You can control basic music playback functions, like Play/Pause & Previous/Next Track from the Boss head unit. Advance music navigation and song/artist information will still need to be handled through the Bluetooth mobile device. The unit will also display song/artist informationfrom Bluetooth audio devices (album art not supported).

    Note: This unit does not support the connection of an external microphone.

    A-Link App (Screen Mirroring): The A-LINK App (for Android OS 8.0+) allows your to mirror the screen of certain Android smartphones on the screen of the Boss BV775B DVD receiver. You'll need to connect your compatible Android smartphone to receiver's front-panel USB port. In addition to mirroing your compatible Android smartphone, the A-Link app also allows 2-way control so you can control the mirrored content from your Android smartphone or the Boss receiver's touchscreen.

    • Scan QR code in manual to download app.
    • Your vehicle's Parking brake will need to be engaged to mirror video content.
    • Not all Android OS apps are supported by the A-Link app.
    • Not compatible with Apple iOS devices.
    Disc/microSD/USB Playback

    Disc Compatibility: The Boss BV775B features a single disc player that will playback DVD-video, DVD-R/RW, DVD+R/RW, CD-audio, and CD-R/RW discs. The unit supports a variety of music, video, and photo files via DVD or CD.

    • Off Insert/Eject: You can load and eject a disc with the unit off. Playback will automatically start when inserting a disc.
    • Auto Reload: When a disc is ejected and left sticking out of the disc slot for 10 seconds, the unit automatically reloads the disc to protect if from damage.

    ESP (Electronic Skip Protection): ESP is a feature that buffers the CD while playing, storing 5 seconds of music. If disc reading is interrupted, the player momentarily uses the stored data, while the tracking circuitry finds the passage prior to the interruption on the CD for continuous performance.

    microSD-Card Slot: The Boss DVD receiver features a front-panel microSD-card slot for playback of a variety of music, video, and photo files recorded onto a microSD/SDHC memory card (up to 32GB).

    USB Port: The BV775B is equipped with a front-panel USB (type-A) port for connection of a USB mass storage class device; such as a USB thumbdrive or portable digital music player (up to 32GB). The unit supports playback of a variety of music, video, and photo files loaded onto a compatible USB msc device. USB portable devices that can be charged via USB will be charged when plugged into the DVD receiver's USB port (5V/1A), and the vehicle's ignition switch is set to ACC or On.

    Note: The unit's USB port is not compatible with Apple iOS devices, and does not support USB hubs or card-readers.

    Media File Compatibility: The Boss BV775B supports the following types of audio, video, photo files recorded onto a disc, loaded onto a USB mass storage class device, or stored on a microSD memory card.

    • Audio: MP3, WMA
    • Video: MPEG, WMV
    • Photo: JPEG

    Song/Artist Info: The receiver will display song/artist/album information (no album art) from your compressed digital music files.

    Playback & Search Control: The head unit offers Play/Pause, Fast Forward/Rewind, Previous/Next Track, Repeat (all/folder/track) and Random (all/folder). It also provides direct track entry using it's touchscreen keypad for quicker access, and a folder/track list so you can you scroll through your music files.

    Audio & Tuner Section

    20W x 4Ch Amp: The Boss BV775B DVD receiver is equipped with a 20 watt (RMS) x 4 channel amplifier. The internal amplifier can be turned off, if you are going to use external power amplifiers.

    6Ch/3V Pre-outs: The Boss BV775B features front, rear and subwoofer 3.0-volt pre-outs. The front and rear speaker pre-outs are balance and fade adjustable. The subwoofer pre-outs output are non-fading (there is no built-in low pass filter).

    Equalizer: You can choose between 6 EQ presets - User, Classic, Rock, Pop, Jazz, Electric. The User preset allows you to manually adjust the head unit's 8-Band equalizer (60, 150, 400, 1k, 3k, 7k, 15k, 20kHz).

    Loudness: The Loudness setting allows you to enhance the receiver's bass & treble at lower volume levels.

    Source Level: You can independently adjust the source level (-7 to +7) of the Disc, Radio, USB, microSD, Bluetooth, AV In, and Aux for smoother volume level transition between sources.

    Startup Volume: You can set the startup volume (0 to 40) of the head unit, so the unit turns on at the same volume level everytime.

    AM/FM Tuner: The Boss BV775B features a built-in AM/FM tuner. The BV775B features 3 FM banks and 2 AM bank for storing presets (automatically or manually). You can store 6 presets for each AM/FM bank giving you a total of 18 FM presets and 12 AM presets (total of 30). Local seek tuning lets you tune in only those radio stations with sufficiently strong signals for good reception. The tuner features selectable North America and European tuning.

    AV & Camera Connections

    Rearview Camera Input: The BV775B features a composite video input for connection of a rear view camera (sold separately). This enables better visibility when backing up. When an optional rearview camera is connected to this unit, the rear view image is displayed on the integrated 6.95" LCD screen when your vehicle is placed in reverse gear (purple/white wire of the harness must be connected to the reverse light wire of vehicle). Automatic video switching can be set to 1, 2, or 3 seconds

    Front Camera Input: The Boss BV775B is also equipped with a composite video front camera input for adding a front camera (sold separately) to your vehicle. From the receiver's touchscreen, you can manually switch over to the front camera image.

    AV Inputs: The Boss BV775B is outfitted with a front-panel Aux input (3.5mm) and a rear-panel composite video/stereo RCA AV input for connecting an external audio/video device.

    Video Output: A composite video output jack allows you to add an external monitor, such as a rear headrest monitor or overhead monitor (sold separately). The video output can display a DVD, USB, microSD, or AV-input video signal when its selected as the receiver's source, regardless if the vehicle's parking brake is engaged or not.


    Loading accessories...

    Customer Q&A

    19 questions already asked

    Is this a High Definition radio?
    anthony  Jul 25, 2023
    1 answer
    This model doesn't have an HD tuner. We do offer other models with the tuner though if that's something you're interested in.
    brooke  Jul 27, 2023 (Staff)
    Is this an HD radio?
    anthony  Jul 24, 2023
    1 answer
    Greetings Anthony, and thank you for your question. Boss does not currently have a stereo that has the HD tuner. All you will receive is the analog radio channels.
    hogan  Jul 25, 2023 (Staff)
    If this unit is a stand alone, what would be the best speakers to pair with them?
    council  May 16, 2023
    1 answer
    Greetings, and thank you for your question. The Boss stereo has a 20 watt per channel built in amplifier. Pretty standard for aftermarket stereos. Most high efficient 4 ohm speakers would work with this stereo. For best fitment for your vehicle, contact one of our advisors at 800-324-9695.
    hogan  May 17, 2023 (Staff)
    What gauge is the wiring for the bv775b stereo so I can buy connectors ?
    michael  Nov 09, 2022
    1 answer
    A combination of 16- and 18-gauge wire are used. Most wire connector types will cover a range of wire sizes.
    zachary  Nov 11, 2022 (Staff)
    What size connectors do I need for boss elite BV775B stereo?
    michael  Nov 09, 2022
    1 answer
    The connectors we typically recommend are an 18/20 gauge and the Posi-Products pack will be more than sufficient for an installation which I will link below.
    arielle  Nov 09, 2022 (Staff)
    What size is the wiring for the stereo ?? Want to buy connectors
    michael  Nov 09, 2022
    1 answer
    Greetings Michael, and thank you for your question. Power, ground and memory will be 18 gauge, all others 20-22 gauge.
    hogan  Nov 09, 2022 (Staff)
    Does it have Apple CarPlay?
    dakotap  Nov 02, 2022
    1 answer
    Greetings DakotaP, and thank you for your question. This Boss model BV755B does not have Apple Carplay. Their BV900ACP model has all the same features as the BV755B and has Carplay as well.
    hogan  Nov 02, 2022 (Staff)
    Will my steering wheel controls work with this radio or do I need to get another part?
    bk  Jun 23, 2022
    1 answer
    This radio does require a steering wheel control adapter to retain your steering wheel controls. You can go through our find what fits your vehicle tool under the Car Audio tab to find the necessary parts needed to install this radio, or call us at 1-800-324-9695 and we'll be happy to help you out!
    allison  Jun 23, 2022 (Staff)
    Will this work with the factory rear entertainment system?
    jacob  Apr 04, 2022
    1 answer
    You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.
    kenneth  Apr 05, 2022 (Staff)
    I have sirius XM radio with the factory unit, how do I keep it with this unit?
    chris  Mar 21, 2022
    1 answer
    You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.
    kenneth  Mar 23, 2022 (Staff)
    When it says that the dvd can only be played through factory headphones does that mean I won???t be able to hear it playing throughout the vehicle?
    darrell  Feb 03, 2022
    2 answers
    I had a BV775B Boss installed on my Toyota Corolla. It plays through the 6 speakers that came with the car. Whether AM FM or DVD player all sound comes thru the regular car speakers. Related to this is that I'm very pleased with the unit. More bells and whistles than I'll probably use. Great blue tooth connect to my cell phone.
    matt  Feb 04, 2022
    Yes you can hear music playing throughout the car
    curtis  Feb 03, 2022
    Can it get Xm satellite radio?
    david  Jan 08, 2022
    1 answer
    I don???t know Enter an answer to this question.
    wayne  Jan 08, 2022
    Can I stream my WAZE app from my iPhone to view on screen?
    john  Oct 14, 2021
    1 answer
    The Waze app can typically be mirrored onto a radio. The A-Link app must be installed onto a compatible Android smartphone and the parking brake must be engaged for this to work.
    jason  Oct 19, 2021 (Staff)
    Does it play Blu ray dvds?
    chris  Sep 01, 2021
    1 answer
    No Blu-Ray, it will playback DVD-video, DVD-R/RW, DVD+R/RW, CD-audio, and CD-R/RW discs. Hope this helps.
    kenneth  Sep 02, 2021 (Staff)
    My Crosstrek already has a backup camera. Will the factory camera work with this radio?
    james  Aug 30, 2021
    1 answer
    You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.
    kenneth  Sep 01, 2021 (Staff)
