BOSS Audio MGV550B Marine digital media receiver with Bluetooth® (does not play CDs)

Item # 104MGV550B

This rugged digital media receiver gives you impressive sound and marine-rated reliability

This rugged digital media receiver gives you impressive sound and marine-rated reliability

California customers:
Please click here for your Proposition 65 warning.

Item # 104MGV550B

In stock
$319.99

About the BOSS Audio MGV550B

Jon Paul

A great gauge-style receiver

Time to upgrade your boat's audio system? The BOSS Audio MGV550B digital media receiver gives you impressive sound and marine-rated reliability, so it's a great starting point. This all-weather digital media receiver features built-in Bluetooth, so you can stream your favorite tunes without taking your phone out of your pocket.

A great gauge-style receiver

Time to upgrade your boat's audio system? The BOSS Audio MGV550B digital media receiver gives you impressive sound and marine-rated reliability, so it's a great starting point. This all-weather digital media receiver features built-in Bluetooth, so you can stream your favorite tunes without taking your phone out of your pocket.

This rugged receiver packs a lot of features into a compact design that fits into a standard gauge opening. Enjoy your favorite AM/FM radio stations, or plug a compatible device into the rear USB or AUX inputs. The 3-band EQ lets you optimize the sound for your tunes, the preamp outputs will come in handy when you add marine amps and subs to your system. There's a rear camera input, too.

The color LED display lets you see what you're hearing with just a glance, while the IPX6-rated water-resistant face panel and big, easy-to-use controls are made to resist sun, salt, and moisture.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.

READ LESS

Product highlights:

  • gauge-style digital media receiver (does not play CDs)
  • 5" multicolor screen
  • built-in Bluetooth lets you stream your music
  • plays music from smartphones
  • compatible with MP3 and WMA files
  • IPX6 water-resistance rating
    • waterproof conformal-coated circuit boards
  • built-in MOSFET amplifier (20 watts RMS/60 peak x 4 channels)
  • AM/FM/receiver with RDS tuner
    • 30 radio presets (18 FM, 12 AM)
  • inputs: rear audio/video input, USB port, rear-view camera
  • outputs: 6-channel preamp outputs
  • dimensions:
    • chassis diameter: 3.5"
    • cutout diameter: 3.55"
    • nose height: 5.5"
  • warranty: 3 years
  • MFR # MGV550B

What's in the box:

  • Gauge-style marine receiver (15A fuse)
  • Trim-ring
  • Rubber cover
  • 40" USB extension cable
  • 4 Screws
  • User's Manual/Qucik Installation Guide

Customer reviews for BOSS Audio MGV550B

We don't have any reviews, yet.
Submit a review and then enter to win a $350 gift card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the BOSS Audio MGV550B

Stacey B.

Features & specs

Expandability
AUX Input RCA (rear)
Audio/video Input ---
USB Input Rear
USB Port Power 1A
Backup Camera Input No
Second Camera Input No
CarPlay No
Android Auto No
Siri Control No
Alexa Voice Control N
Android Control Yes
Memory Card Slot USB
Bluetooth Compatible Built-in
Satellite Radio Ready No
HD Radio No
Navigation ---
iPod Compatibility
Full size N/A
Nano N/A
Touch N/A
iPhone N/A
General
RMS Power (CTA-2006) N/A
RMS Power (Manufacturer) 20 watts
Peak Output 60 watts
RMS Power Bandwidth 20-20kHz
Preamp Outputs 6-channel
Sub Preamp Outputs Yes
Switchable Rear Preamp Outputs No
Video Screen Yes
Navigation App Compatible (iOS)
Navigation App Compatible (Android)
Preamp Voltage 2 volts
Screen Size 0
Screen Type Basic (Resistive)
Display Color Full Color
Key Button Color Blue
EQ Bands 3
Wireless Remote No
Steering Wheel Control Compatible No
Parts Warranty 3 Years
Labor Warranty 3 Years
Tuner
FM Sensitivity 12 dBf
European Tuning Yes
Seek/Scan Seek
Radio Data System No
File Playback
Music File Playback MP3, WMA
High-res Playback N

Product Research

Features

Fully Marinized (IPX6): Fully Marinized is the term Boss uses for their Marine and Outdoor products that are weather-proof. Boss integrates high-tech, state-of-the-art waterproofing materials plus special UV coatings for plastic surfaces, coated circuit boards and connections to protect the MGV550B digital media receiver against the harsh outdoor elements and resist corrosion. IPX6 waterproof certification means it can hold up in the marine environment and withstand powerful splashes of water out on the ocean or lake. During testing, water is projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min at a pressure of 100 kN/m2 for 3 minutes from a distance of 3 meters.

Note: This unit should not be submerged in water.

Gauge-Style Mount: The Boss MGV550B is a guage-style digital media receiver that requires a 3.515" cutout in the bulkhead for inserting the chassis. The integrated protective gasket and mounting hardware secure the unit in place against the mounting surface. Receiver dimensions are as follows -

  • Cutout Dimensions: 3.515" (diameter) x 4.25" (depth)
  • Front-Panel Dimensions: 7.695" (width) x 5.495" (height) x 1.515" (depth)
  • Screw-Hole Spacing (4): 7.25" (width) x 2.25" (height) x 1.0" (depth)
Note: The receiver's chassis is round and does not include a mounting sleeve or ISO-mount screw holes to accommodate standard automotive installation.

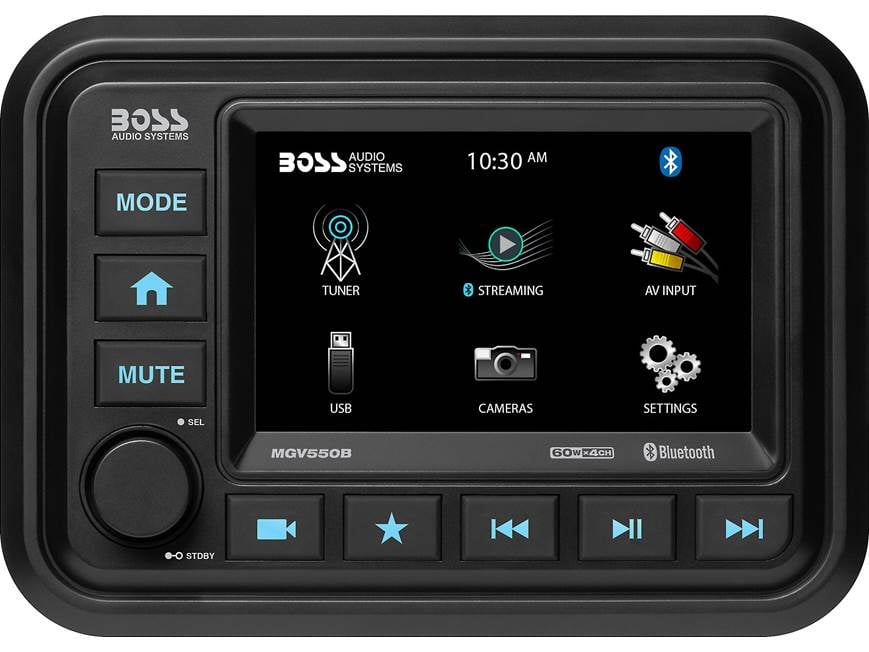

Touchscreen Display & Simple Control: The Boss MGV550B feature a front-panel 5" LCD touchscreen, 3-way rotary knob, and 8 push-buttons. You can select between 7 wallpaper backgrounds for LCD touchscreen. The push-buttons have a fixed blue illumination. A rubber cover is included to protect the front-panel of the receiver when not in use.

20W x 4Ch Amp: The Boss MGV550B marine receiver is equipped with a built-in amplifier rated at 20W (RMS) x 4 channel / 60W (Peak) x 4 channel.

2V/6Ch Preouts: The Boss MGV550B digital media receiver is outfitted with 2V/6ch preouts (Front/Rear/Sub) for connecting an external power amplifier or amplifiers. The subwoofer preouts feature a variable low-pass crossover (80/120/160Hz) and level control (0-15).

Built-In EQ: The built-in, Preset EQ allows you to chose from preset EQ curves (Flat, Pop, Rock, Jazz, Classical, Beat, or User) for a variety of music styles. The User mode lets you manually adjust the receiver's Bass, Mid, & Treble (-7 to +7). In addition, a Loudness feature enhances high and low frequencies at low volume levels.

Bluetooth Audio Streaming: Thanks to built-in Bluetooth 4.1, you can wirelessly stream stored music, music apps, and other audio content from your Bluetooth-enabled smartphone or tablet device to the Boss Marine gauge-style receiver. The unit offers Play/Pause & Previous/Next Track control, as well as song/artist info display (no album art).

Note: This unit does not offer support for Bluetooth hands-free phone communication.

USB-A Port: The Boss Marine gauge-style receiver is outfitted with a rear-panel USB-A port attached to the rear-chassis via a 7" cable and comes with a 40" USB extension cable. The USB-A port allows you to plug in your USB mass storage class device, like a USB thumbdrive (up to 32GB), for playback of MP3/WMA music files. Your USB MSC device must be formatted in FAT 32. The unit offers Play/Pause & Previous/Next Track control, as well as song/artist information display (no album art). If your USB MSC device can be charged via USB, the unit's USB (5V/1A) port will charge your device while connected.

Note: The unit's USB port does not support Apple iOS devices, Android OS devices, USB hubs, or card-readers.

AV Input: The Boss marine digital media receiver feature an AV input that consists of a composite video input and stereo RCA inputs for connecting an external audio/video source device.

Camera Input: The Boss MGV550B features a composite video camera input that allows you to connect a backup camera (sold separately - see Accessories Tab). A reverse gear wire (Brown) allows the unit to automatically switch to the backup image when your vehicle is put into reverse gear, or you can manually switch to the camera input's video signal. A Pink 12V/500ma wire provides power to your connected camera.

AM/FM Tuner: The built-in AM/FM tuner offers manual, seek, and preset tuning. You can store up to 18 FM and 12 AM preset stations. The unit does not offer direct preset buttons, Instead, you'll have to scroll through its on-screen menu to access radio presets. The unit features a Zero Current Draw Memory, so that it will still remember all your AM/FM presets even in case of battery disconnect. You can also select between US or European tuning.

Loading accessories...

Customer Q&A

2 questions already asked

Q
Will this head unit work with the Boss MRGB65 lighted speakers the MGV520B does?
eric  Feb 12, 2024
1 answer
A
Greetings Eric. Thank you for your question. The Boss LED lit speakers need a power and ground connection other than the normal speaker wires to illuminate. The package with radio, and speakers also have a way to control the lighting. The speakers don't care where their power comes from for the lighting. It can come direct off the 12 volt battery, or if just 2 speakers, from the radio switched power. You can use any radio for that matter, as long as you have the Boss lighting control hub that comes packages with these speakers. The Boss radios do not control the lighting. The control hub remote does.
hogan  Feb 12, 2024 (Staff)
Q
Can you see the screen in extreme sunlight?
keith  Aug 25, 2023
2 answers
A
Yes it pretty visible on my side by side .
joshua  Aug 25, 2023
A
Greetings Keith, and thank you for your question. we would not be able to see the screen unless one of us had the stereo. Perhaps one of our customers that has purchased this Boss from us sees the post, and has a better answer for you.
hogan  Aug 25, 2023 (Staff)
