About the Kenwood KCA-R110
Product highlights:
- HD rear-view camera for Kenwood dash cams
- add-on to the DRV-A310W dash cam (includes 26-foot cable)
- 26-foot cable connects to your compatible Kenwood dash cam
- 1920 x 1080 resolution for a superior image
- IP67 rating for resistance to dust and water
- viewing angles: 110.8° horizontal x 59.6° vertical
- dimensions: 1.09"W x 1.48"H x 2.16"D
- warranty: 1 year
- MFR # KCA-R110
- Item # 113KCAR110
What's in the box:
Kenwood KCA-R110 owner's manual

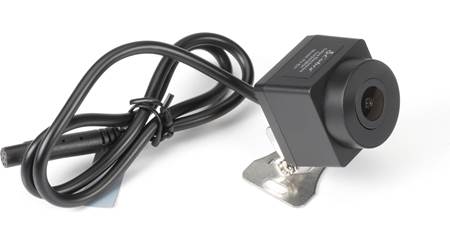

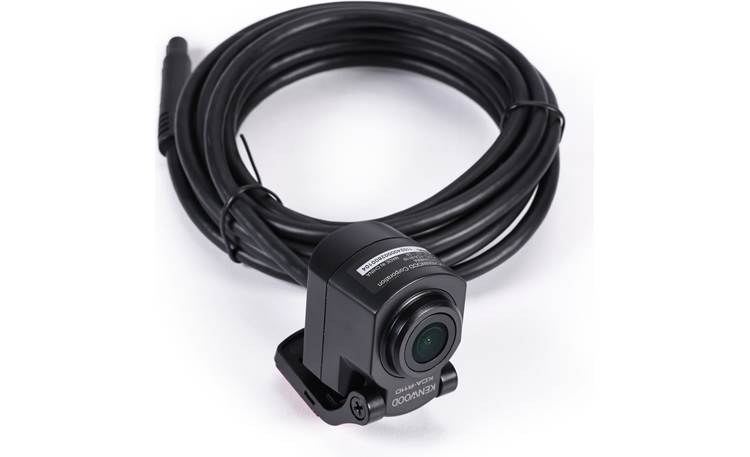

If you need assistance accessing this owner's manual, please give us a call.- Rear camera with installed single joint bracket and attached 8' cable (terminated in an 8-pin connector)

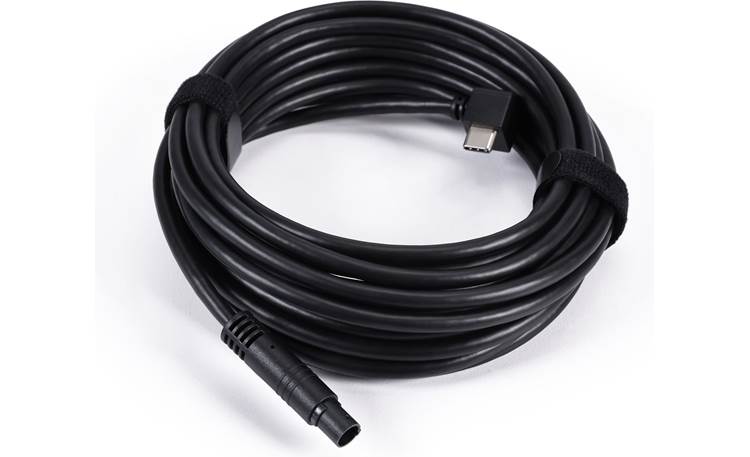

- 18' Extension cable (8-pin connector on one end/ USB-C connector on other end)
- Double joint bracket
- Two 3M adhesive pads
- Four 3/8" screws
- Instruction manual
- Warranty information
More details on the Kenwood KCA-R110
Features & specs
| Features and Specs | ||
|---|---|---|
| GPS | No | |
| Includes Rear-view Cam | No | |
| Bluetooth | No | |
| Driving Assistance | No | |
| Built-in Microphone | No | |
| Camera Type | Rear | |
| Resolution | 1920x1080 | |
| Parking Guidelines | No | |
| Lux Rating | Not given | |
| Selectable Views | No | |
| Reversed Image | Both | |
| Horizontal Viewing Angle | 110.8 degrees | |
| Vertical Viewing Angle | 59.6 degrees | |
| Wireless | No | |
| Plug type | USB-C | |
Product Research
Features
Overview: The Kenwood KCA-R110 optional add-on rear view camera lets you add rear viewing/recording capability to your Kenwood DRV-A310 dash camera (sold separately). The 2 megapixel camera provides a recording resolution of 1920x1080 (@ 30 FPS) and a wide 131.6° (diagonal) field-of-view.
IP67 Waterproof: The KCA-R110 add-on rear camera can be mounted inside or outside of your vehicle and carries an IP67 waterproof rating, making it impervious to water and dust.
Mounting: The Kenwood add-on camera includes two mounting brackets for installation on the inside or outside of your vehicle:

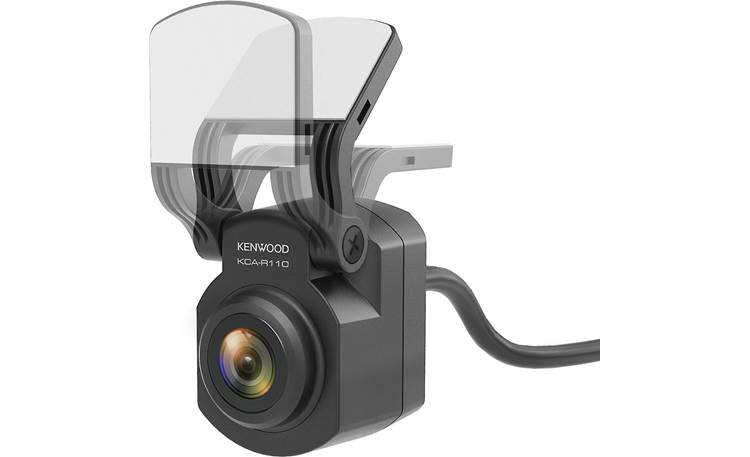

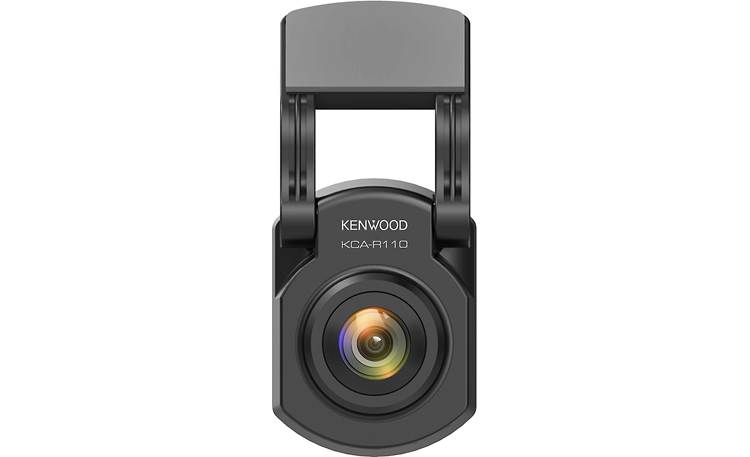

- Interior: a single-joint adhesive mounting bracket can be attached to the inside of the rear window for a rear exterior view of the vehicle. The camera can also be mounted facing inward for monitoring cargo or passengers.

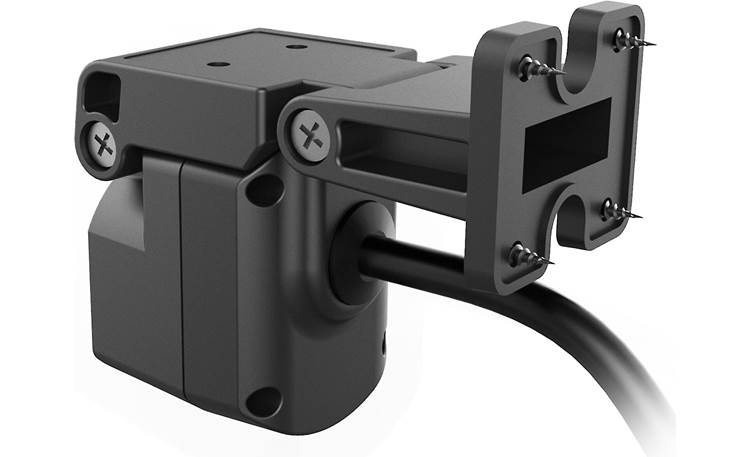

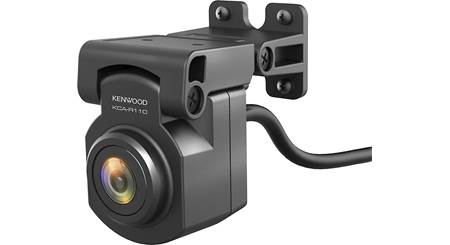

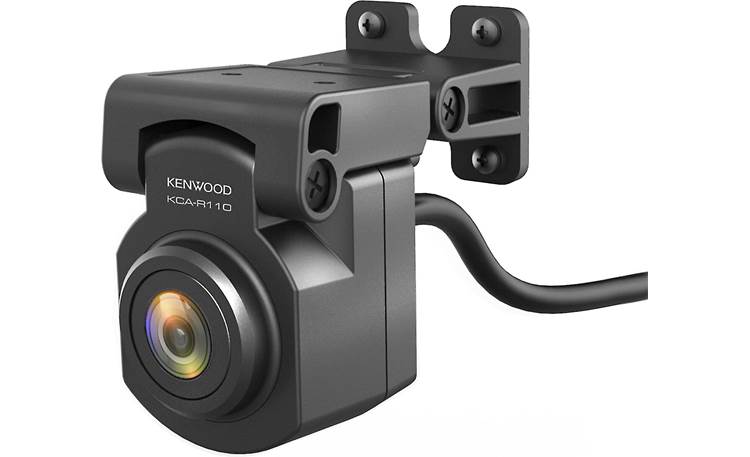

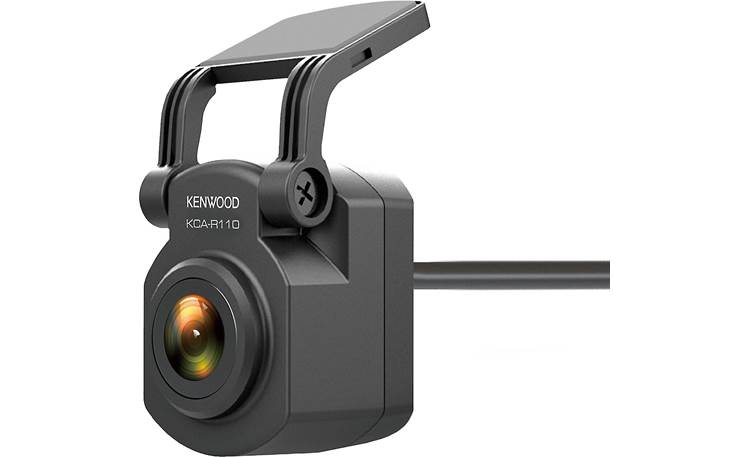

- Exterior: a screw-down mounting bracket allows the camera to be installed on the exterior of the vehicle. Double joints on the bracket allow various angles and positions for the camera.

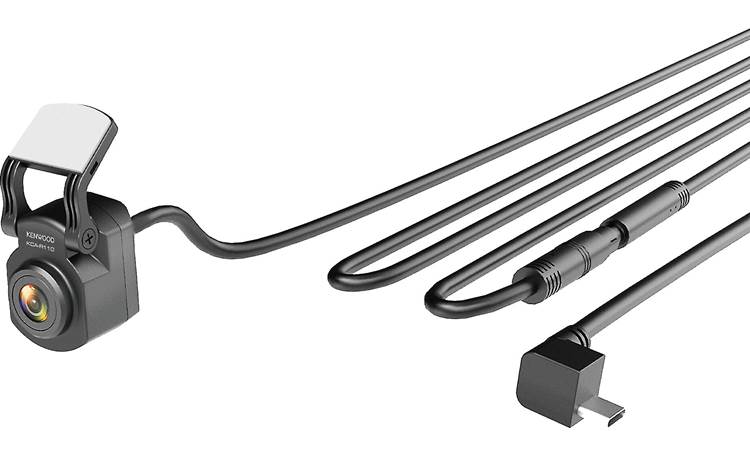

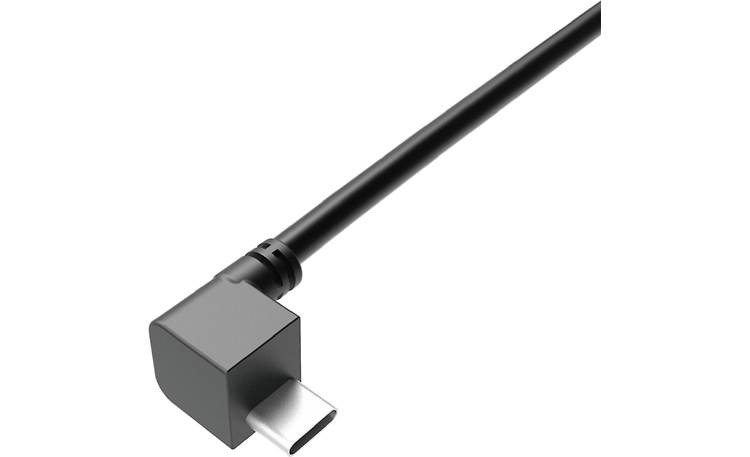

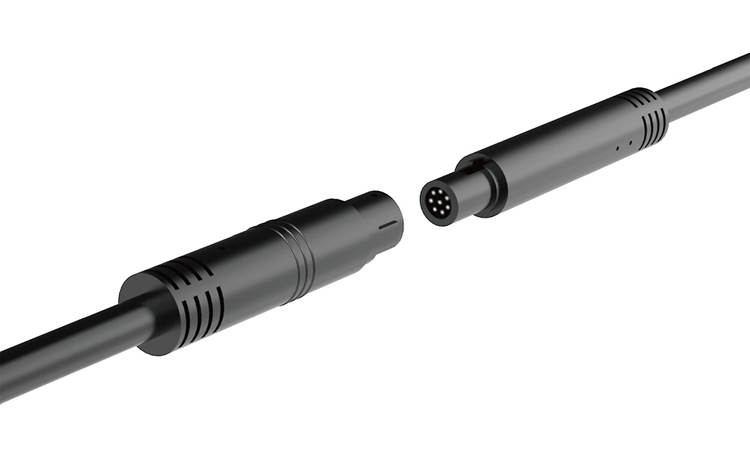

Connection: The KCA-R110 camera features a built-in 8' connection cable terminated in an 8-pin connector. An additional 18' extension cable for running to the front of the vehicle connects to the 8-pin plug on one end and features a USB-C connector for attaching to your Kenwood DRV-A310 dash camera.
Replacement Camera: The Kenwood KCA-R110 rear view camera can also be used as a replacement for the rear camera that's included with the Kenwood DRVA510WDP dual camera system (sold separately), in the event it gets damaged.
Specifications:
- Image Sensor: 1/2.9" Galaxy Core (GC2093)
- Lens: F2.0
- Pixel Count: 2,073,600 (1920x1080)
- Recording Resolution: 1920x1080 (@ 30 fps) Full HD
- Video Format: H.264/ MP4
- Field-of-View:
- Horizontal: 110.8°
- Vertical: 59.6°
- Diagonal: 131.6°
- Operating Voltage: 5VDC
- Current Consumption: 300mA
- Waterproof Rating: IP67
