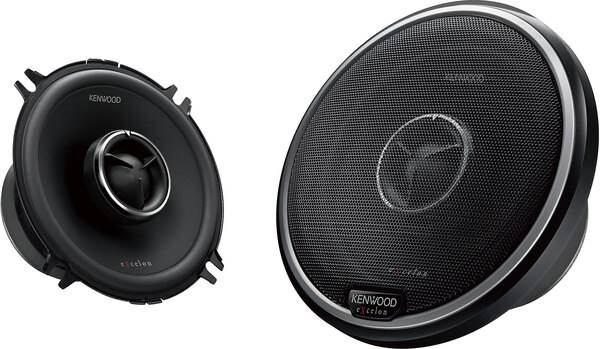

About the Kenwood Excelon KFC-X135

Product highlights:
- 5-1/4" 2-way car speakers (pair)
- injection-molded polypropylene woofer
- 1" soft dome tweeter
- handles up to 40 watts RMS (160 watts peak power)
- frequency range: 71-21,000 Hz
- top-mount depth: 2-7/16"
- sensitivity: 86 dB
- grilles included
- warranty: 2 years
- MFR # KFC-X135
- Item # 113KFCX135
What's in the box:
Kenwood Excelon KFC-X135 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way speakers
- 2 Grilles
- 2 Grille frames
- Two 12" lengths of speaker wire (each has female quick-slides on one end and bare wire on the other)
- Eight 1" Screws
- 8 Speed clips
- Grille putty
- Warranty information
- Specifications and template are on the box
More details on the Kenwood Excelon KFC-X135

Features & specs
General | ||
---|---|---|
Speaker Size | 5 1/4 | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Injection-Molded Polypropylene | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | 1" Dome | |
Tweeter Material | Cloth | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black steel mesh, Black and silver plastic frame | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | 86 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 71 - 21k Hz | |
Maximum RMS Wattage | 40 | |
Peak Power Handling (Watts) | 160 | |
Top-mount Depth (Inches) | 2 7/16 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 4 3/4 | |
Mounting Height (Inches) | 0.57 | |
Frame Width | 5.21 | |
Frame Length | 5.21 |
Product Research
Features
Woofers: The woofer cones are made of injection-molded polypropylene. This process of cone molding assures a uniform cone thickness for superior linearity and clarity. It is also light weight and rigid for decreased distortion and improved bass response.
Warranty Note: Although these speakers come with a 1-year warranty card, they are covered by the Kenwood eXcelon 2-year warranty.
The Kenwood Excelon KFC-X135 replaces these items:
- injection-molded polypropylene woofer
- 1" soft dome tweeter
