About the Metra 70-2103 Receiver Wiring Harness
Product Highlights:
- MFR # 70-2103
- Item # 120702103
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Metra 70-2103 Receiver Wiring Harness owner's manual

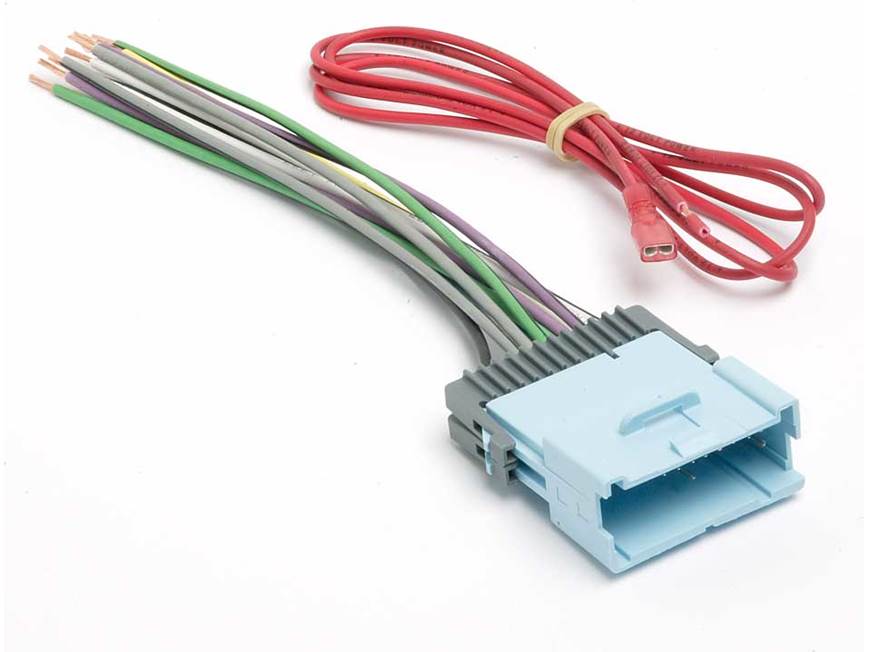

If you need assistance accessing this owner's manual, please give us a call.- Receiver wiring harness
- 42" Red wire (with female quick slide on one end)
- Fuse tap (with male quick slide)
More details on the Metra 70-2103 Receiver Wiring Harness

Product Research
Features
Crutchfield Wiring Harness: Crutchfield wiring harnesses prevent you from having to cut your vehicle's factory radio plug when replacing your factory radio with an aftermarket head unit. Simply solder or crimp the Crutchfield wiring harness to your aftermarket head unit's harness (solder & crimps not included), plug the aftermarket head unit's plug into the rear chassis of the aftermarket head unit, and plug the Crutchfield wiring harness into your vehicle's factory radio plug.
Wiring Notes: If the Crutchfield wiring harness is not equipped with a ground wire, you will need to ground the aftermarket head unit's ground wire to the metal chassis of your vehicle. Some vehicle's may require you to bypass the vehicle's factory amplifier (in another location from factory radio) or hardwire certain connections. If your vehicle is equipped with factory steering wheel controls, an additional adapter is required and sold separately.
Wire Code Chart:
Wire Color | Function |
---|---|
Red * (Long individual wire) | +12 Volt Accessory (Not in harness) |
Yellow | +12 Volt Constant |
Black | Chassis Ground |
Blue | Power Antenna |
White | Left Front Speaker + |
White/Black | Left Front Speaker - |
Gray | Right Front Speaker + |
Gray/Black | Right Front Speaker - |
Green | Left Rear Speaker + |
Green/Black | Left Rear Speaker - |
Violet | Right Rear Speaker + |
Violet/Black | Right Rear Speaker - |
*The individual 42" red wire included with the harness must be run from the receiver to the fuse panel to provide 12 volt switched power.
The Crutchfield Car Selector: Please visit the Crutchfield Car Selector for your specific type of vehicle.
