Metra 70-6504 Amp Bypass Harness Allows you to install a new car stereo and bypass the factory amplifier in select Jeep, Chrysler, and Dodge vehicles

Metra

Item # 120706504

This Metra 70-6504 amp bypass harness allows you to install a new car stereo in your car without having to cut the...

Find what Fits your vehicle

Remove

Checking fit...

Front

1/2

Only at Crutchfield

2/2

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.
Metra 70-6504 Amp Bypass Harness Front
Metra 70-6504 Amp Bypass Harness Only at Crutchfield

This Metra 70-6504 amp bypass harness allows you to install a new car stereo in your car without having to cut the...

Item # 120706504

Every order includes

  • Free lifetime tech support
  • 60-day price-drop protection
  • 60-day returns
In stock
$54.99
Add to cart
Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based
1-888-955-6000

About the Metra 70-6504 Amp Bypass Harness

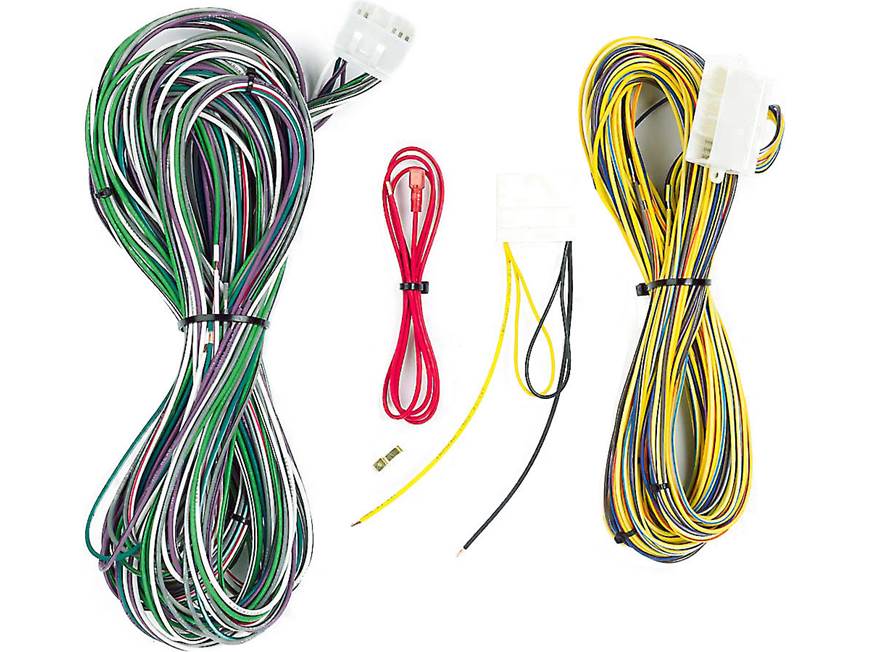

What's in the box:

Metra 70-6504 Amp Bypass Harness owner's manual

If you need assistance accessing this owner's manual, please give us a call.
  • 6" Constant Power/Ground harness
  • 17' Speaker harness
  • 17' Tweeter/Center channel harness
  • 42" Switched power wire
  • Fuse tap
Other info:
  • MFR # 70-6504
  • Item # 120706504
  • California customers: Please click here for your Proposition 65 WARNING.

Featured review

The kit specifies Magnum/Crysler. But this works well on a 2004 RAM. It make the job so much easier. To rewire the wires from the doors would have taken so much longer. For the money this wiring kit is excelent. I would highly recomment it.

ricktech from Connecticut

5 out of 5 stars

See all 57 reviews

More details on the Metra 70-6504 Amp Bypass Harness

Stacey B.
Researched by Crutchfield's Stacey B.

Product Research

Features

Wiring Harness: This wiring harness prevents you from having to cut your vehicle's factory radio plug when replacing your factory radio with an aftermarket head unit. Simply solder or crimp the wiring harness to your aftermarket head unit's harness (solder & crimps not included), plug the aftermarket head unit's plug into the rear chassis of the aftermarket head unit, and plug the wiring harness into your vehicle's factory radio plug.

Note: Installation tools, hardware, & accessories are not included & sold separately. Please see the Accessories tab for recommendations & availability.

Wiring Notes: If the wiring harness is not equipped with a ground wire, you will need to ground the aftermarket head unit's ground wire to the metal chassis of your vehicle. Some vehicle's may require you to bypass the vehicle's factory amplifier (in another location from factory radio) or hardwire certain connections. If your vehicle is equipped with factory steering wheel controls, an additional adapter is required & sold separately.

Wire Code Chart:

(Constant Power/Ground Harness)

Wire Color Function
Yellow +12 Volt Constant
Black Ground

(Tweeter/Center Channel Harness)

Wire Color Function
Yellow/Blue Left Front Tweeter +
Yellow/Black Left Front Tweeter -
Yellow/Red Right Front Tweeter +
Yellow/Orange Right Front Tweeter -
Brown/White Center Speaker +
Blue/Pink Center Speaker -

(Power/Front Speaker Harness)

Wire Color Function
Green Left Rear Speaker +
Green/Black Left Rear Speaker -
Violet Right Rear Speaker +
Violet/Black Right Rear Speaker -
Gray Right Front Speaker +
Gray/Black Right Front Speaker -
White Left Front Speaker +
White/Black Left Front Speaker -
White/Red Not Used
Green/White Not Used
Brown/Blue Not Used
Brown/Yellow Not Used

Notes:

  • There is no switched power wire in any of the harnesses. An additional 42" red wire is included, along with a fuse tap to access a switched +12 volt source in the fuse block.
  • The center channel speaker, if present, is not used in most aftermarket systems.

Loading accessories...

Customer Q&A

7 questions already asked

Q
Is the only difference between this and the 9-wire product the fact that you don't have to cut into the factory wires with this one?
jeremy  Dec 05, 2023
1 answer
A
Greetings Jeremy. Thank you for your question. A 9 wire will carry the 8 speakers wires and a remote amp turn on. This factory amp bypass also includes factory plugs, constant power, switched power, ground, and also a center speaker/tweeter harness.
thomas  Dec 05, 2023 (Staff)
Q
i have a 2005 grand cherokee limited. I purchased a kenwood head unit a couple years back and had yall install the factory connection on it. So now i want to bypass amp and replace speakers. Do i just undo the connections yall made and add this? Thank you for any help.
robert  Aug 27, 2023
1 answer
A
Generally speaking, this is the case. However, I would recommend reaching out to our tech support team when you are ready to perform the bypass so that we may guide you through which connections need to be undone and which may be left in place. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website.
zachary  Aug 27, 2023 (Staff)
Q
Will this work for a 1995 jeep grand Cherokee Laredo with an after market radio pioneer DEH-S5010BT just want to bypass the amp will run new cable if necessary?
kaleb  Sep 04, 2021
2 answers
A
We do not offer an amp bypass harness for this vehicle. You would need to run new wiring for that.
jenny  Sep 08, 2021 (Staff)
A
You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.
thomas  Sep 07, 2021 (Staff)
Q
Will this work for a 2012 grand cherokee lerado?
john boy  Sep 18, 2020
1 answer
A
Yes, if you're trying to bypass the factory amplifier. If no factory amplifier in vehicle, you wouldn't be needing this harness, but a different one..
harrison  Jul 30, 2021
Q
will this work on my 2008 dodge ram?
abraham  May 18, 2020
1 answer
A
You need to put your trucks info in the vehicle guide. That will determine if it fits.
adam  May 18, 2020
Q
can this kit be used with the factory radio/head unit or does a aftermarket radio need to be installed with this kit?
jaycob  Feb 06, 2020
1 answer
A
I used it with an aftermarket radio. It worked great. Im nor sure if the factory unit has enough power to drive the system without the amp
david  Feb 06, 2020
Q
OK, So what I want to do is delete the OEM amplifier and run my head unit direct to the speakers without running all new wires to the doors and under the carpet and removing body panels. I'm not sure how this harness does all that, or if it does all that. Seems like what I would need would have two connectors at each end. One to connect the head unit input side into the amplifier output side. Right?
adam  Feb 11, 2015
1 answer
A
For details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
kristina  Feb 12, 2015 (Staff)
