Ethereal Helios CS-HDMAV HDMI-to-composite video and stereo audio converter

Item # 120CSHDMAV

Item # 120CSHDMAV

Every order includes

  • Free lifetime tech support
  • 60-day price-drop protection
  • 60-day returns
In stock
$59.99

Other options

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

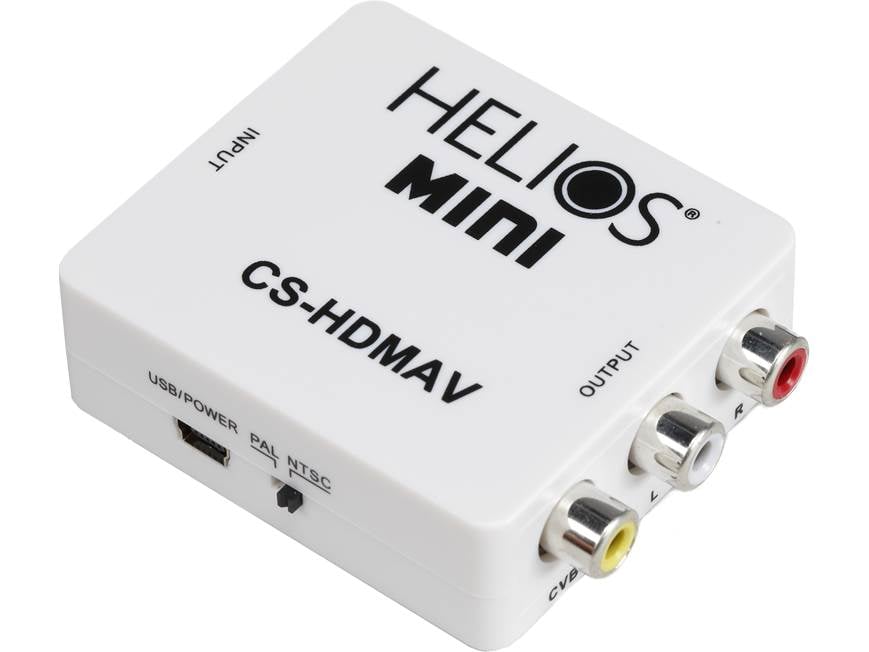

About the Ethereal Helios CS-HDMAV

Kramer Crane

Product highlights:

  • connect an HDMI source to a TV that doesn't have HDMI inputs
  • takes the incoming signal from an HDMI cable and converts it to composite video and RCA stereo audio
  • features a selectable video output format switch (NTSC and PAL)
  • plugs into a USB power source
  • HDMI cable and composite video/audio cables not included
  • warranty: 1 year
  • MFR # CS-HDMAV
  • Item # 120CSHDMAV
  • California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

Ethereal Helios CS-HDMAV owner's manual

If you need assistance accessing this owner's manual, please give us a call.
  • HDMI-to-composite video/stereo RCA converter
  • 29" miniUSB-to-USB cable
  • User Manual

More details on the Ethereal Helios CS-HDMAV

Research Team

Product Research

Features

HDMI to Composite AV Converter: The HELIOS CS-HDMAV is a HDMI to composite AV converter. It takes a HDMI audio/video signal and converts it over to composite video and stereo RCA.

HDMI Input: The HELIOS CS-HDMAV is equipped with a female full-size HDMI 1.3 input. HDMI cable sold separately.

Analog AV Output: The CS-HDMAV is outfitted with a composite video output and stereo RCA audio outputs. Composite video and stereo RCA cables sold separately.

Supported Video Resolutions: The HDMI input will accept 480i, 480p, 720p, 1080i, and 1080p video signals. The composite video output only supports 480i, so any higher video resolutions will be down-converted. The CS-HDMAV can be set to PAL or NTSC video.

Supported Audio Formats: The HDMI input will accept 2ch to 5.1ch audio (including Dolby Digital & DTS). Multichannel audio will be down-converted to 2-channel through the CS-HDMAV's stereo RCA outputs.

Power Requirements: The HELIOS CS-HDMAV features a miniUSB port and comes with a 29" miniUSB-to-USB cable which must be connected to a USB power source (not included).

Loading accessories...

Customer Q&A

3 questions already asked

Q
I have a Samsung QLED 4K TV. I want to connect to a home theatre system (HTS). I connected the HDMI input to the converter, connected the USB power, set the switch to NTSC and the RCA output to my HTS. I get no sound. Is this device QLED 4K compatible? What do you recommend?
ron  Mar 26, 2022
1 answer
A
If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer.
kenneth  Mar 30, 2022 (Staff)
Q
CS-HDMAV says it's to connect an old TV with no HDMI port to new device. I need the reverse. I need a composite for my Bose Lifestyle 28 system to connect via HDMI to my new Sony smart tv. Will this item work? Also need the cable?
debbie  May 13, 2021
1 answer
A
These converters send the signal in one direction and do not come with cables. They are also made with the composite output and the HDMI input and needs power source. The cable for this comes with it, but the other end is USB. Figure out what you want to convert from and to, will tell you which direction to select. Your description sounds like you want to send the sound from your TV to your Bose system so you need HDMI input to composite output.
carmen y  May 13, 2021
Q
Best and most economical way to mirror my cell phone to my 2018 nissan rogue with nissanconnect without navigation? Thank you!
daniel a  Mar 10, 2018
2 answers
A
We are usually not able to mirror a smart phones onto a stock radio as those radios don't usually have an A/V input on them; just a aux audio input. But aftermarket radios have ways to possibly mirror phones. I recommend contacting an advisor on 1-800-324-9695 or through our online chat to get a personal recommendation on this. My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=101
jason  Mar 18, 2018 (Staff)
A
I purchased this cable to play my Classic IPOD through my home theater receiver and it works perfectly. I'm sorry I can't answer your specific question. One thing for sure, the price of this cable is very affordable.
mike  Mar 10, 2018
