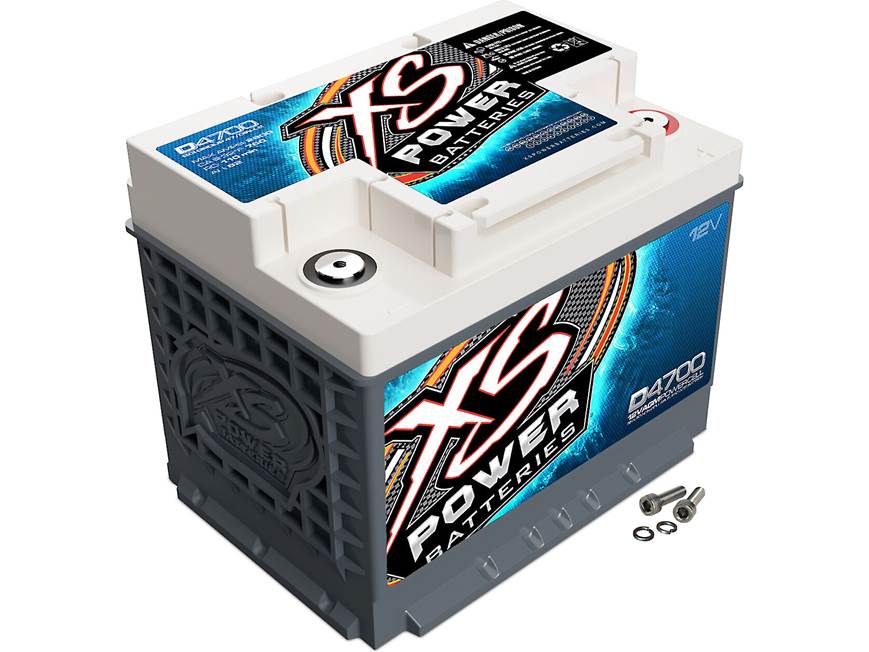

About the XS Power D4700

Product highlights:
- deep cycle 12-volt battery
- M6 terminal hardware included
- sealed absorbed glass mat (AGM) design
- maximum output: 2900 amps
- 760 cranking amps
- reserve capacity: 110 minutes
- discharge capacity: 62 amp-hours
- dimensions: 9-1/2"L x 7-5/8"H x 7"W (measure for fit)
- weight: 41.19 lbs.
- warranty: 3 years
- MFR # D4700
- Item # 122D4700
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
- One XS Power battery
- Two M6 x 16 mm hex-head screws
- 2 Lock-washers
- 2 Flat-washers
- Instruction sheet
- Warranty card
More details on the XS Power D4700

Product Research
Features
Overview: The XS Power D4700 12-volt AGM Performance battery is a six cell, sealed-valve regulated, lead-acid battery designed to replace your OEM battery, supplying more power to the vehicle and especially larger audio system.
Terminals Needed: This D-series battery does not come with battery terminals, so you will need to purchase the proper terminal adapters to fit the inner diameter of your power ring terminals before installing. Recommended terminal adapters include: Two 5/16" brass stud adapters (#589), Two 3/8" brass stud adapters (#590), Two 5/16" + Two 3/8" brass stud adapters (#588), or Two 3/8" zinc-plated steel stud adapters (#587). You could also choose the Short Brass Post Adapters (#580).
Absorbent Glass Mat (AGM): XS Power's AGM (Absorbent Glass Mat) batteries use a fibrous material to suspend the liquid electrolyte against the lead plates. Because the electrolyte is absorbed in the material, there is little chance of an acid leak, even in the event the case is ruptured. AGM batteries contain more lead compared to traditional "flooded" batteries, thus producing more power.
Charging the Battery: It is very important to properly charge an Absorbent Glass Mat (AGM) battery before using. Improper charging will permanently damage the battery (swelling, etc.), and will void the warranty. XS Power offers two 12-volt High Frequency IntelliChargers designed for charging AGM Batteries: the 8-amp HF1208 and the 15-amp HF1215 (both sold separately). The chargers have a microprocessor that monitors the charging process to avoid overcharging, and are strongly recommended for this battery.
Specifications:
- Maximum Output: 2900 amps
- Cranking Amps (at 32°F): 760 amps
- Reserve Capacity: 110 minutes
- Discharge Capacity: 62 Ah (amp hours)
- Dimensions: Width - 9.50", Height - 7.625", Depth - 7.0"
- Weight: 41.19 lbs.
Loading...
Loading accessories...
Customer Q&A
12 questions already asked
Loading...
Loading articles...
Replaced OEM battery to feed car and some juicy amps. Took a gamble based on dimensions and while being slightly taller than the OEM battery, it fits in a 2010 Chevy Cobalt. Trunk liner fits as it did before, you can't tell a taller battery is installed. No modifications necessary.
Moises from El Centro, CA
