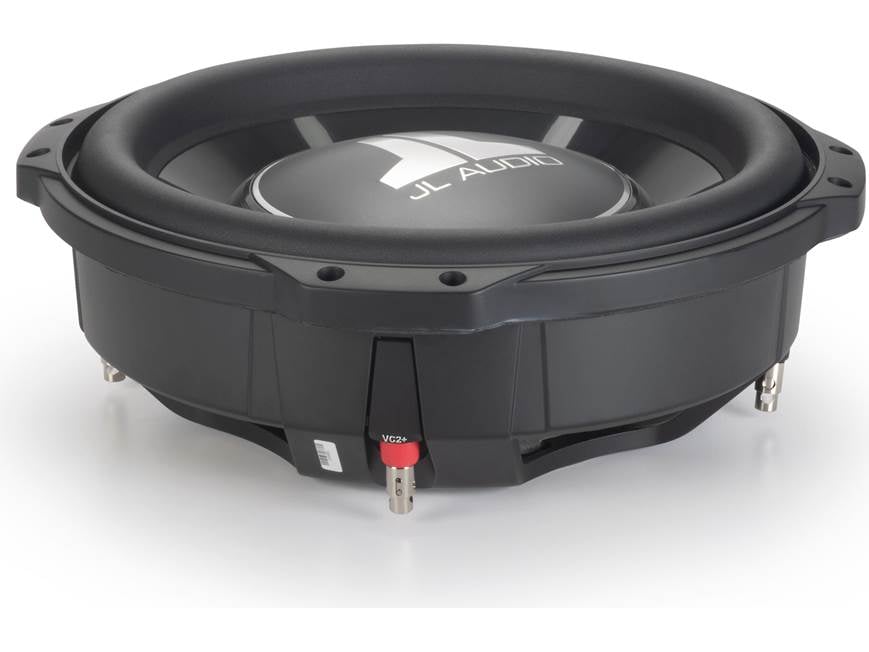

About the JL Audio 12TW3-D4
Bass for challenging spaces
Bass for challenging spaces
If you've got a pickup truck, sports car, or you just need to haul a lot of stuff, then you know that adding some bass can be a challenge. That's why JL Audio built the TW3 Series 12TW3-D4 shallow-mount subwoofer. This super-thin 12" sub puts out big bass, yet only requires minimum air space, so you can use a much smaller enclosure. Now, you can have your bass and your space too.
Don't let this sub's low profile fool you, it's made for big bass.
JL Audio's amazing engineering
JL Audio used all their tricks to build a sub this slender without giving up performance. Its tough polypropylene cone won't flex under high power, and the large, durable rubber surround helps the cone move large amounts of air. The heavy-duty cast-alloy frame only stands 3-1/2" tall, but provides a stable home for this high-performance bass driver. For best results, you'll want to send this sub up to 400 watts RMS, and its dual 4-ohm voice coils make it a perfect match for a mono amplifier.
- 12" subwoofer with dual 4-ohm voice coils
- shallow-mount design with small airspace requirements
- mica-filled polypropylene cone with rubber surround
- cast alloy basket
- power range: 100-400 watts RMS
- peak power handling: 800 watts
- frequency response: 22-200 Hz
- sensitivity: 84.11 dB
- top-mount depth: 3-1/2"
- sealed box volume: 0.8 cubic feet
- ported box volume: 0.95 cubic feet
- grille not included
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # 92185
What's in the box:
JL Audio 12TW3-D4 owner's manual
- One 12" Thin-Line subwoofer
- Owner's manual
- Voice coil connection warning
JL Audio 12TW3-D4 reviews
Thanks for submitting your review
This review was collected as part of a promotion
More details on the JL Audio 12TW3-D4
Features & specs
|Impedance (Ohms)||2, 8|
|Cone Material||Mica-filled IMPP|
|Ideal Sealed Box Volume (cubic feet)||0.8|
|Ideal Ported Box Volume (cubic feet)||0.95|
|Port diameter (inches)||N/A|
|Port length (inches)||N/A|
|Dual Voice Coil||Yes|
84.11 dB at 1 watt |
|Frequency Response||22 - 200 Hz|
|Max RMS Power Handling||400|
|Peak Power Handling (Watts)||800|
|Top Mount Depth (inches)||3 1/2|
|Bottom Mount Depth (inches)||N/A|
|Cutout Diameter or Length (inches)||11 5/8|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
Thin-Line Design: JL Audio's patented thin-line woofer technology compresses the architecture of the 12TW3-D4 subwoofer and allows it to deliver great bass performance in tight space applications (less than 3½" deep). Central to the technology is the Concentric Tube structure that supports the oversized voice coil and the suspension attachments. This permits placing the motor structure much further forward in the speaker than conventional designs, while maintaining excellent linear excursion capability. Equally important, the 12TW3-D4 is designed for extremely small enclosure applications; 0.8 ft³ is optimum.
Concentric Tube Suspension: JL Audio's patented Concentric Tube Suspension employs a molded structure which spans beyond the edge of the motor structure, supporting the spider on the outside of the motor's boundaries and the large diameter voice coil on the inside. The large voice coil permits the magnet to sit inside it, rather than surrounding the coil as is typical in most woofers. The concentric tube structure and the elimination of a conventional top-plate helps JL Audio place the motor higher up into the cone body's space to further compress depth, while still permitting excellent mechanical excursion.
Mica-Filled Polypropylene Woofer: The subwoofer features an injection-molded, mica-filled polypropylene cone woofer with a rubber surround for added durability, woofer excursion and bass response.
Dynamic Motor Analysis (DMA): DMA is JL Audio's proprietary method of improving dynamic motor behavior. As a result of DMA optimization, the 12TW3-D4 motor remains linear over a long excursion range, and also maintains a stable fixed magnetic field in the gap over a wide power range. The result is reduced distortion, faithfully reproduced transients, and tight, clean, articulate bass.
Floating Cone Attachment Method (FCAM): JL Audio's patented FCAM technology is an innovative method of bonding the surround/cone assembly to the voice coil/spider assembly. This assembly technique ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.
Recommended Sealed Box Volume: The sealed box size recommended by JL Audio is 0.8 ft³. A diagram is provided in the owner's manual for a sealed box with external dimensions of 21¼" W x 16" H x 6½" D, assuming ¾" thick material. (If you are using ⅝" thick materials, subtract ¼" from each dimension.)
Ported Box Volume: JL Audio recommends a ported box volume of 0.95 ft³. A diagram is provided in the owner's manual for a ported box with external dimensions of 30" W x 16⅝" H x 6½" D, assuming ¾" thick material. (If you are using ⅝" thick materials, subtract ¼" from each dimension.) A slot port is recommended with the following dimensions:
- Width: 5"
- Height: 2½"
- Length: 31¼"
Shallow Mount Design: The JL Audio 12TW3-D4 requires a mounting depth of less than 3½".
