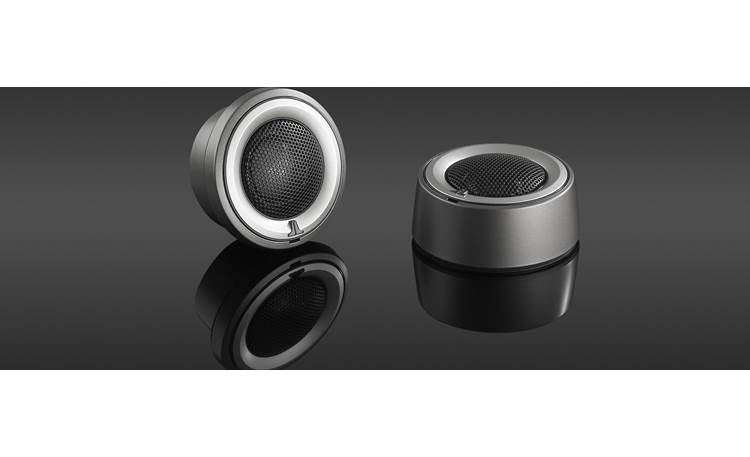

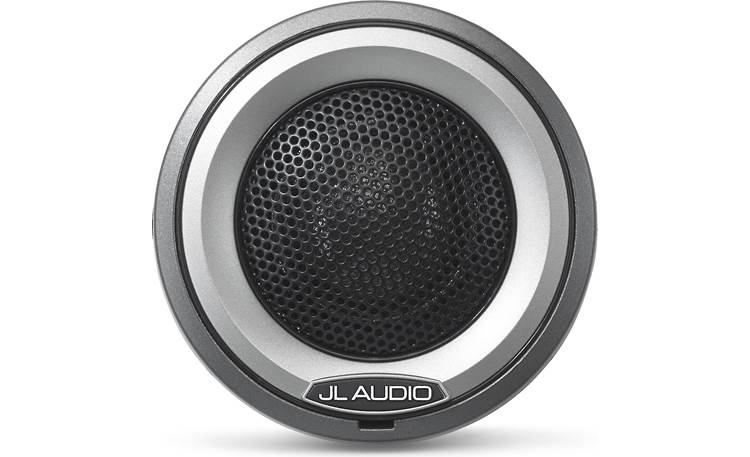

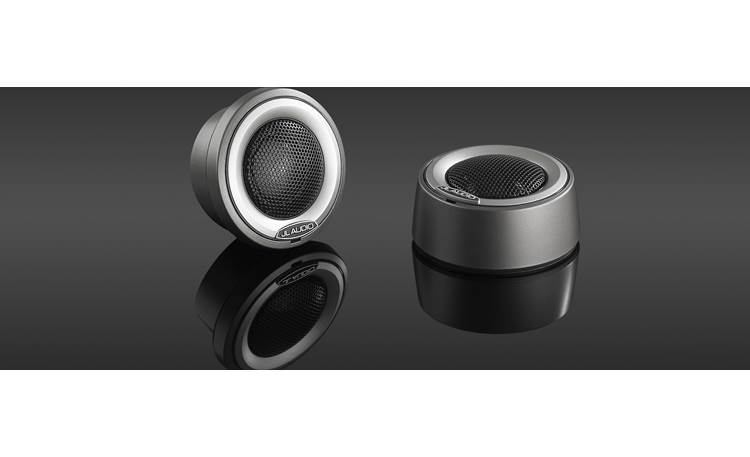

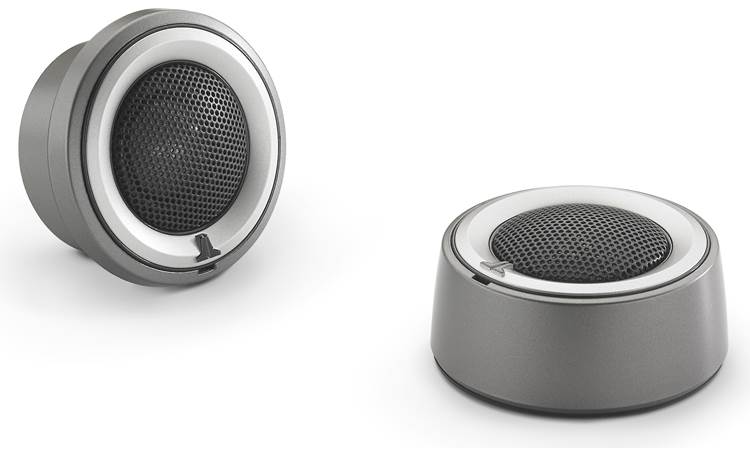

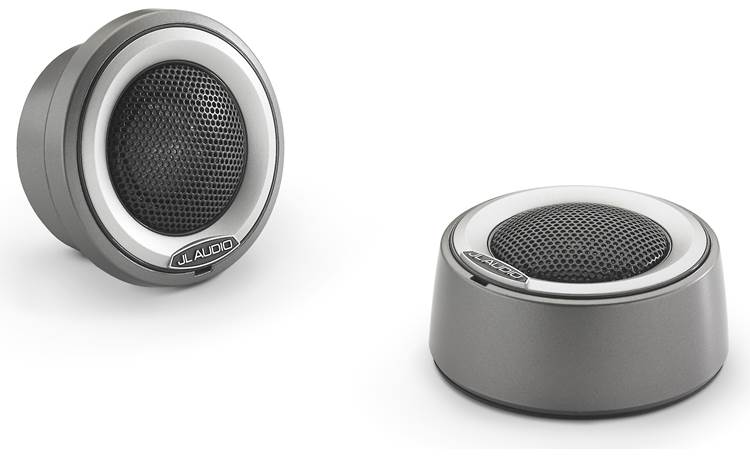

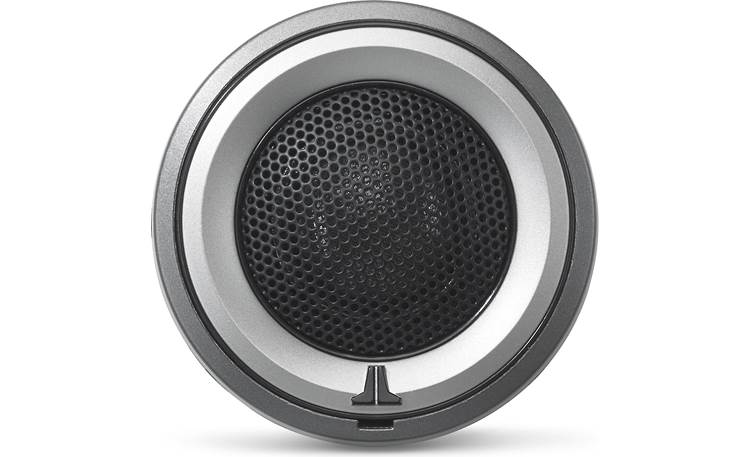

About the JL Audio M6-100CT-CS-GmTi

Product highlights:
- silk dome tweeters (pair)
- corrosion- and UV-resistant
- in-line high-pass filter
- handles up to 75 watts RMS (150 watts peak power)
- flush- and surface-mount fixtures included
- made for marine use
- frequency response: 4800-25,000 Hz
- impedance: 4 ohms
- sensitivity: 91 dB
- mounting depth: 1.2"
- cutout diameter: 2.12"
- frame diameter: 2.6"
- warranty: 2 years
- MFR # 010-03501-00
- Item # 13693694

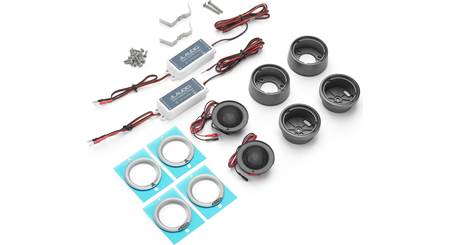

What's in the box:
JL Audio M6-100CT-CS-GmTi owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 1" Tweeters (24" wire attached/terminated with female quick slides)
- 2 Crossovers with input and output wires attched
- 2 Surface mount housings
- 2 Flush mount housings
- 2 Flush mount clips
- 2 Classic trim rings
- 2 Sport trim rings
- Two #10-32 x 1.5" Machine screws
- Eight 5/8" Pan head screws
- Six 5/8" Flat head screws
- Owner's manual
- Warranty information
More details on the JL Audio M6-100CT-CS-GmTi

Features & specs
General | ||
---|---|---|
Speaker Size | 1 | |
Design | 1-way | |
Tweeter Design | 1" Dome | |
Tweeter Composition | Silk | |
Woofer Composition | --- | |
Woofer Surround | --- | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity |
91 dB at 1 watt | |
Frequency Response | 4800 - 25k Hz | |
Max RMS Power Handling | 75 | |
Peak Power Handling (Watts) | 150 | |
Impedance (Ohms) | 4 | |
Top-mount Depth (Inches) | 1 1/4 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 2 1/8 | |
Bolt Circle | 0 |
Product Research
Features
Frequency Response: The given frequency response (4.8-25 kHz) is measured using the included passive crossovers.
Mounting Options: The M6-100CT-CS marine tweeters can be flush-mounted or surface-mounted using the included fixtures. The mounting dimensions for each option are as follows:
Mounting Depth | Mounting Height | Frame Diameter | Cutout Diameter | |
---|---|---|---|---|
Flush Mount | 1.2" | 0.58" | 2.612" | 2.125" |
Surface Mount | N/A | 1.34" | 2.67" | N/A |
Crossover: The input and output wires are attached to the included 3rd order passive high pass crossovers; the 12" output wire is terminated with male quick slides that mate with the terminals on the wire attached to the tweeters, and the 48" input wire is not terminated (tinned bare wire). If using an active 24 dB/octave crossover, the crossover point should be no lower than 3.2 kHz.
Crossover Dimensions:
- Width: 3⅛" (3⅞" including mounting flange)
- Height: ⅞"
- Depth: 1½"
The JL Audio M6-100CT-CS-GmTi replaces these items:
- 1" treated silk dome tweeters
- flush- and surface-mount adapters
- inline high-pass crossovers
