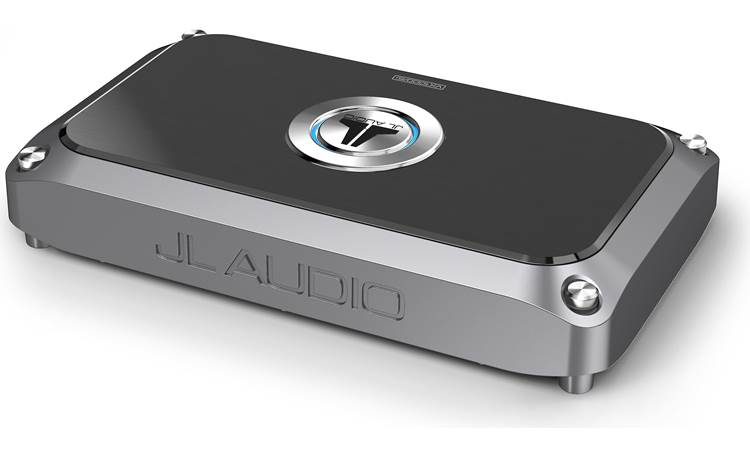

About the JL Audio VX1000/5i
Product highlights:
- 5-channel car amplifier
- 75 watts RMS x 4 + 400 watts RMS x 1 (at 4 ohms)
- 100 watts RMS x 4 + 600 watts RMS x 1 (at 2 ohms)
- 200 watts RMS x 2 bridged at 4 ohms + 600 watts RMS x 1 at 2 ohms
- Class D amplifier design with NexD2™ switching amp technology
Digital Signal Processing:
- 24-bit 96 kHz digital processing
- DSP adjustments and settings made with JL Audio's TüN app (PC and Mac) via USB, via Bluetooth (tablets and phones) with BTC Bluetooth option
- input routing and mixing
- adjustable gain controls with clip indication
- fully adjustable high-pass, low-pass, and bandpass filters
- selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
- 10-band EQ
- phase and polarity control
- time alignment in 0.01 ms (1/8") increments
Connection Features
- differential-balanced inputs eliminate noise coming from your vehicle's electrical system
- preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
- high-level inputs — up to 16 volts RMS (about 60 watts)
- DC offset or signal sensing auto turn-on eliminates need for remote lead
- 2-channel digital input and output (S/PDIF: up to 24-bit 192 kHz in, 24-bit 96 kHz out)
- 2-channel analog preamp output (4V RMS)
- JLid™ connections for optional Network Hub, Bluetooth Communicator, and Digital Remote Control
- USB connection for device running TüN app (6-foot cable included)
- wiring, fuse, and hardware not included with amplifier
- 4-gauge power and ground leads and an 80-amp fuse recommended
- 11-5/16"W x 2-1/8"H x 6-11/16"D
- warranty: 2 years
- MFR # 010-03110-00
- Item # 13698632
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
JL Audio VX1000/5i owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 5-Channel amplifier
- Power connector
- 14" Analog Input harness (25-pin D-Sub/8 RCA)
- 18" ABCD Speaker output harness
- Subwoofer output connector
- 18" Speaker wire loom
- "Sub" wire label
- 6' USB cable (Type A USB on one end and Type B USB on other end)
- 4 Corner caps
- Corner cap tool
- 2 Silver thumbscrews
- 2 Black hex cap machine screws
- 2.5mm Hex wrench
- 3mm Hex wrench
- JL Audio logo badge
- Connection Guide
- Registration card
More details on the JL Audio VX1000/5i
Features & specs
| Performance | ||
|---|---|---|
| RMS Power Output (Watts x Channels) |
75 x 4 600 x 1 | |
| Peak Power Output (Watts x Channels) | N/A | |
| Power at 2 Ohms (Watts x Channels) | 100 x 4 | |
| Power at 1 Ohm (Watts x Channels) | --- | |
| Bridged Power (Watts x Channels) | 200 x 2 | |
| Minimum Impedance Bridged | 4 | |
| Minimum Impedance Unbridged | 2 | |
| Best Frequency Response | 12-24k Hz | |
| THD at Rated RMS Power | 1% | |
| Signal to Noise Ratio | 80 dB | |
| Input Voltage | 14.4v | |
| Features | ||
| Amplifier Class | D | |
| Built-in DSP | Yes | |
| Remote Control | Via Tun software | |
| Low-Pass Crossover Frequency | Via Tun software | |
| Low-Pass Slope (dB/octave) | Via Tun software | |
| High-Pass Crossover Frequency | Via Tun software | |
| High-Pass Slope (dB/octave) | Via Tun software | |
| Bass Boost | No | |
| Bass Boost Frequency | N/A | |
| Fan Cooled | No | |
| Fuse Rating | 80 | |
| Speaker Level Inputs | Yes | |
| Preamp Outputs | 2 | |
| Width (inches) | 11-5/16 | |
| Height (inches) | 2-1/8 | |
| Depth (inches) | 6-11/16 | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
Product Research
Features
Digital Signal Processing
Connections
Specifications
Features
VXi Amplifiers: The JL Audio VXi-series of amplifiers feature advanced technology with built-in digital signal processors. These compact amplifiers pack a lot of power into a small package. Each VXi amplifier is equipped with a customized, triple-core DSP that allows you to tune the amplifier to the exact performance you need. With JL Audio's free TüN software on your computer, tablet, or smartphone, you can configure the amplifier from the driver's seat. Up to six active preset tunings can be stored.
5-channel Amplifier: The VX1000/5i 4-channel Class D amplifier that has been optimized for full-range amplification of connected speakers, while also powering a subwoofer. It has advanced NexD2 switching amplifier technology to deliver solid performance with high fidelity and efficiency. The amp does not have traditional control knobs and switches for setting up the amplifier. Instead, the input sensitivity, crossover, and polarity settings are configured via the TüN software.
Logo Badge: The included JL Audio logo badge is included in the box, unattached. The badge has an adhesive backing for attaching it according to your installation in any 90° increment. The color of the LED ring around the logo badge can be configured in the TüN software to display the amp's status, audio preset, or a user-defined color.
Digital Signal Processing
DSP: JL Audio's Digital Signal Processing engine, when partnered with the TüN software, gives you an enormous amount of control over the configuration and settings of the amplifier. It is equipped with high-performance A/D and D/A converters, and audio processing for high-resolution 24-bit/96kHz audio files. For some VXi models, the DSP offers a 10-band parametric EQ for each output channel, including pre-outs, Linkwitz-Riley and Butterworth high-pass and low-pass filters, Signal Delay (0.01 millisecond steps), polarity reversal, and output trim levels (in 0.1dB steps).
TüN Software: The free TüN software lets you configure, tune, and control your VXi amplifier from your PC, tablet, or smartphone. The TüN software is available for Windows PC (Windows 7 SP1, 8.1, and 10 / 32-bit or 64-bit) and Apple computers. TüN Mobile is available for iPad and Android tablets, while TüN Express works with iPhone and Android smartphones. The apps are compatible with iOS version 10.0 or later, and Android 4.4 and up. When connected to the VX1000/5i, you can make the following adjustments and settings on the application:
- Input Selection: Analog or Digital
- Turn-on Mode: Remote, DC offset, Signal Sense
- Input Mode: 2 Ch / 4 Ch / 6 Ch
- Independent Settings for CH 1&2 and CH 3&4:
- Input Type: Stereo or Mono
- High Pass Filter: Off, 12dB, or 24dB; Cutoff frequency: 20Hz (or LPF frequency) to 20,000Hz
- Low-pass Filter: Off, 12dB, or 24dB; Cutoff frequency: 20Hz to 20,000Hz (or HPF frequency)
- Level Setting:
- Input Level: Min to 11
- Output Trim: -18.0dB to +12.0dB
- Mute All: On/Off
- Independent Settings for Sub Channel:
- Polarity: + or -
- Infrasonic Filter: Off or 30 Hz
- Low-pass Filter: Off, 12dB, or 24dB; Cutoff frequency: 20Hz (or Infrasonic frequency) to 500Hz
- Level Setting:
- Input Level: Min to 11
- Output Trim: -18.0dB to +12.0dB
- Mute All: On/Off
Power Output: The VX1000/5i power specifications are as follows:
| Ohms | Watts | ||
|---|---|---|---|
| Rated Continuous Power @ 14.4V (<1% THD+N) | Main (ABCD) | 4Ω | 75 x 4 |
| 2Ω | 100 x 4 | ||
| 4Ω bridged | 200 x 2 | ||
| Sub | 4Ω | 400 x 1 | |
| 3Ω | 500 x 1 | ||
| 2Ω | 600 x 1 | ||
| Rated Continuous Power @ 12.5V (<1% THD+N) | Main (ABCD) | 4Ω | 60 x 4 |
| 2Ω | 90 x 4 | ||
| 4Ω bridged | 180 x 2 | ||
| Sub | 4Ω | 360 x 1 | |
| 3Ω | 480 x 1 | ||
| 2Ω | 600 x 1 | ||

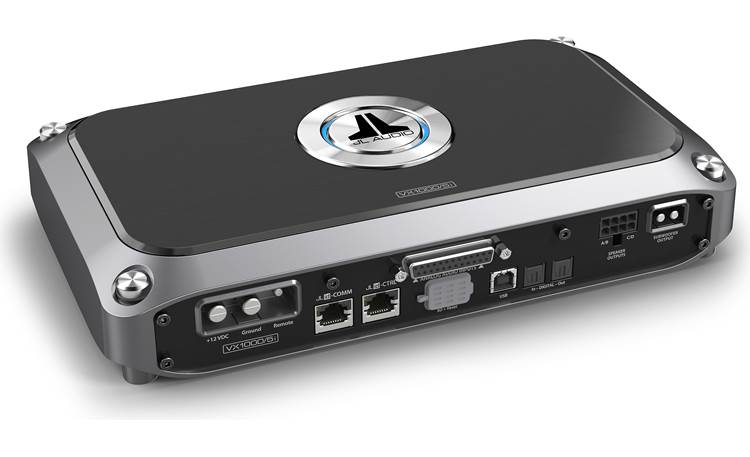

Connections
Power/Ground/Turn-On Terminals: The VX1000/5i features a removable plug with C-Clamp terminals for the power, ground, and remote turn-on cables. This allows you to pre-connect the wires to the connector, then plug it into the amplifier. The power connector will accept up to 4-gauge power and ground wire, and 10-18-gauge wire for the remote turn-on. The supplied 3mm and 2.5mm hex wrenches are for tightening/loosening the C-Clamps.
Speaker Output Harness: The JL Audio VX1000/5i features a removable ABCD Speaker Output Harness with 18" wires, plus a removable Subwoofer Output connector with set-screw terminals. The connector's two set-screw terminals will accept 14-gauge to 10-gauge speaker wire. A 2.5mm hex-wrench is supplied for tightening/loosening the set-screws. The included 18" length of flexible loom is to cover the subwoofer speaker wire at its connection with the amp. The loom matches the look of the Speaker Output Harness, and makes for a clean, uniform look.
Analog Input Harness: The amplifier has a 25-pin D-Sub connection for the supplied 14" Analog Input harness. Four loom-covered cables exit the cable's D-Sub connector, with three pairs of stereo female RCA inputs, stereo female RCA preamp outputs (4V max output), the remote turn-on output (+12V) and Valet Preset Toggle lead.
Digital Inputs/Outputs: The amp has optical digital (Toslink) inputs for direct connection of S/PDIF digital sources, bypassing the A/D converter. The input accepts up to 24-bit/192kHz signals. There is also a Toslink optical digital output for sending a digital signal (24-bit/96kHz) to another VXi amplifier.
USB: A Type B USB port is provided for connecting the amp to your computer for interfacing with the TüN software. A 6' Type A to USB-B cable is provided.
RJ-45: Two RJ-45 modular ports are provided on the amplifier for optional accessories:
- JLid-COMM: One RJ-45 port, labeled JLid-COMM, is for the optional VXi-BTC Bluetooth Communicator (for wireless communication with Apple or Android smartphones and tablets), or the optional VXi-HUB Optical Network Hub (for connecting up to five slave VXi amplifiers -- ten with two VXi-HUBs, allowing synchronization of controllers and DSP presets).
- JLid-CTRL: The other RJ-45 port, labeled JLid-CTRL, is for the optional Digital Remote Controller (DRC) connection. The optional DRC-205 digital remote control allows you to conveniently set amplifier levels and DSP presets from the front of the vehicle.
microSD: A microSD port is provided on the front of the amplifier for future expansion.
Specifications
- Frequency Response:
- Main: 12 Hz - 24 kHz (+0, -1dB)
- Sub: 12 Hz - 1 kHz (+0, -1dB)
- Input Voltage Range (at RCA inputs): 200mV - 16V RMS
- Signal-to-Noise Ratio:
- Analog Inputs (20Hz - 20kHz noise bandwidth):
- Main: 99dB (rated power); 80dB (1 W)
- Sub: 99dB (rated power); 72dB (1 W)
- Digital Inputs (20Hz - 20kHz noise
bandwidth):
- Main: 100dB (rated power); 81dB (1 W)
- Sub: 99dB (rated power); 73dB (1 W)
- Analog Inputs (20Hz - 20kHz noise bandwidth):
- Damping Factor (Main and Sub): >100dB / 50 Hz @ 4Ω; >50dB / 50 Hz @ 2Ω
- Standby Current Draw: 2.1 mA
- Dimensions (WxHxD): 11.302" x 2.085" x 6.667"
- Weight: 6.45 pounds
Loading...
Loading accessories...
Customer Q&A
13 questions already asked
Loading...
Loading articles...
This is being used to power two sets of JL Audio 6.5 components and two 12" Kicker CompQ Series subs in a sealed box, all in a 2018 Accord EX-L. This amp is by far the best I have ever owned, and drives everything effortlessly and with great sound quality. I now am going to get another for my truck.
Michael from MEMPHIS, TN
