Features

Overview: The EFX Delta series DGB46 1-in/4-out distribution block features a single input that can accept either 4 or 8 AWG wire, and four outputs that can accept 8 AWG wire. A removable insert allows for a snug fit with either 4 or 8 AWG wire on the input side. The distribution block features a translucent, impact-resistant polycarbonate cover with push-tabs on each end for easy cover removal. The DGB46 has a small footprint, with four holes in the base for mounting, either with the 2 provided screws or with wire ties (not included).

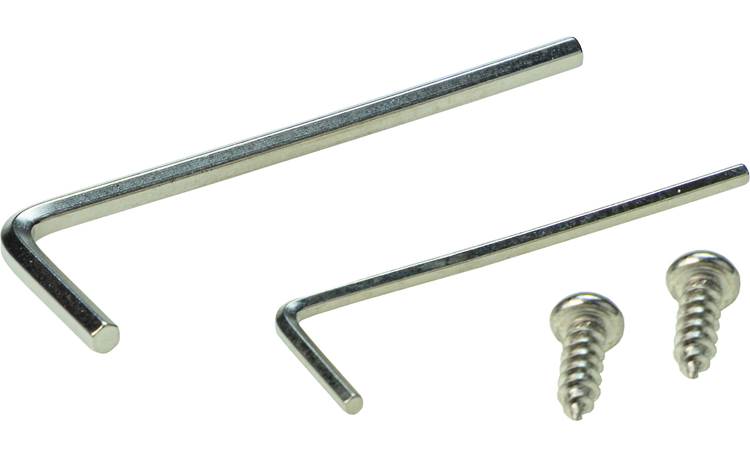

Set Screws: Input and output connections are secured with hex-socket set screws. A 3mm Allen key is provided for the 4/8 AWG input connection and a 2mm Allen key is provided for the four 8 AWG output terminals.

Optional Ferrules: Install Bay (Metra) wire ferrules (sold separately) are designed to crimp onto your power, ground, or speaker wire and provide a clean, solid connection to your terminal block or amplifier with set-screw connections. Bare wire is slid into the length of the ferrule and then crimped onto the wire. This keeps all copper strands held tightly together, with no splaying while tightening the terminal connection. Install Bay wire ferrules can be found here.
