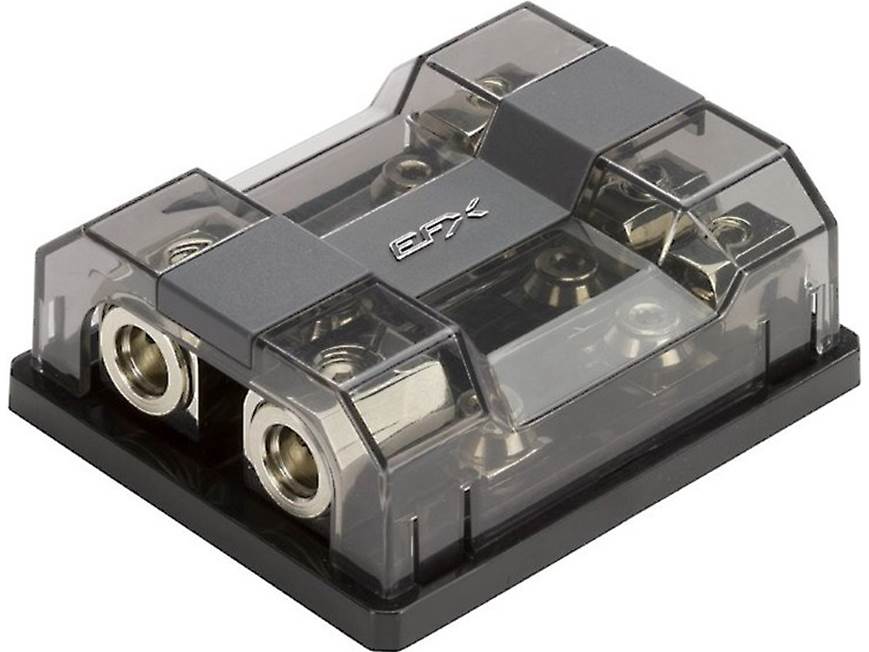

EFX Quad Mini-ANL Fused Distribution Block For power or ground cables — two 1/0- to 4-gauge inputs, four 4- to 8-gauge outputs (fuses not included)

Item # 142FDBUQM

EFX's Quad Mini-ANL Fused Distribution Block can handle the high-power distribution for your multi-amp sound...

EFX's Quad Mini-ANL Fused Distribution Block can handle the high-power distribution for your multi-amp sound...

1 question - 2 answers

Item # 142FDBUQM

Shop all EFX Power Distribution Blocks

About the EFX Quad Mini-ANL Fused Distribution Block

Buck Pomerantz

Keep your wiring system safe and secure

EFX's Quad Mini-ANL Fused Distribution Block can handle the high-power distribution for your multi-amp sound system, ensuring that your amp wiring's connected securely, neatly, and safely. The input accepts a 1/0-gauge, or a 4-gauge wire using the supplied insert. The four outputs can take either 4- or 8-gauge wiring. A second 1/0-gauge input lets you daisy chain another distribution block or amplifier into your system.

Keep your wiring system safe and secure

EFX's Quad Mini-ANL Fused Distribution Block can handle the high-power distribution for your multi-amp sound system, ensuring that your amp wiring's connected securely, neatly, and safely. The input accepts a 1/0-gauge, or a 4-gauge wire using the supplied insert. The four outputs can take either 4- or 8-gauge wiring. A second 1/0-gauge input lets you daisy chain another distribution block or amplifier into your system.

This distribution box can be used for ground distribution as well — the package includes a ground plate that'll help connect the block directly to your vehicle's metal chassis. A tough polycarbonate cover protects the electrical connections from dirt and weather.

READ LESS

Product highlights:

  • one-in, four-out fused distribution block (mini-ANL fuses not included)
  • two 1/0-gauge inputs, four 4-gauge outputs
  • two 4-gauge and four 8-gauge inserts included
  • ground plate included
  • 3 mm hex wrench and mounting screws
  • warranty: 1 year
  • MFR # EFXFDBUQM

What's in the box:

  • 2-in 4-out Quad Mini-ANL distribution block
  • Two 0/4 reducers (1/0 gauge to 4 gauge)
  • Four 4/8 reducers (4 gauge to 8 gauge)
  • Two 2-way jumper plates
  • One 4-way jumper plate
  • 3mm Allen wrench
  • 2 Self-tapping mounting screws (length=1/2")

Customer reviews for EFX Quad Mini-ANL Fused Distribution Block

Loading reviews...

Average review:

5.0 out of 5 stars
4 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the EFX Quad Mini-ANL Fused Distribution Block

Mark G.

Product Research

Features

Overview: The MESA FDBUQM is a quad Mini-ANL fused power distribution block, designed for use with car audio systems. It has a 2-in/4-out design, and can be configured for power (fused) or ground (non-fused) distribution. The unit includes a translucent polycarbonate protective cover with a reversible MESA logo plate.

Inputs: The distribution block has dual 0/4 inputs, each with a removable wire gauge reducer. With the reducer removed, the input will accept up to 1/0 gauge wire. With the reducer inserted, the input will accept up to 4 gauge wire. A 3mm Allen wrench (included) is required to tighten/loosen the set screws.

Outputs: The distribution block has four 4/8 outputs, each with a removable reducer. With the reducer removed, the output will accept up to 4 gauge wire. With the reducer inserted, the output will accept up to 8 gauge wire. The included 3mm Allen wrench is needed for the set screws.

Fuse Holder: One to four Mini-ANL fuses (sold separately) can be installed between the inputs and outputs. If used for ground distribution where no fuses are needed, the included jumper can be put into place to carry the signal between the contacts.

Installation: The distribution block can be installed using the 2 included self-tapping screws. Slots are provided on the base plate for attaching the unit using plastic wire ties, if desired.

Loading accessories...

Customer Q&A

1 question already asked

Q
Do I need fused power distribution block if my amplifiers don't have onboard fuses?
anthony p. jr.  May 05, 2018
2 answers
A
If you don't have a fuse from your battery to amp then you definitely need one at the distribution. Otherwise, it's just one more layer of protection.
josh  May 05, 2018
A
It's definitely a good idea. Not absolutely nessesary, but if you're gonna do the job right, a fuse/breaker somewhere in the power line is the right way to do it Simple answer: yes
matt  May 05, 2018
