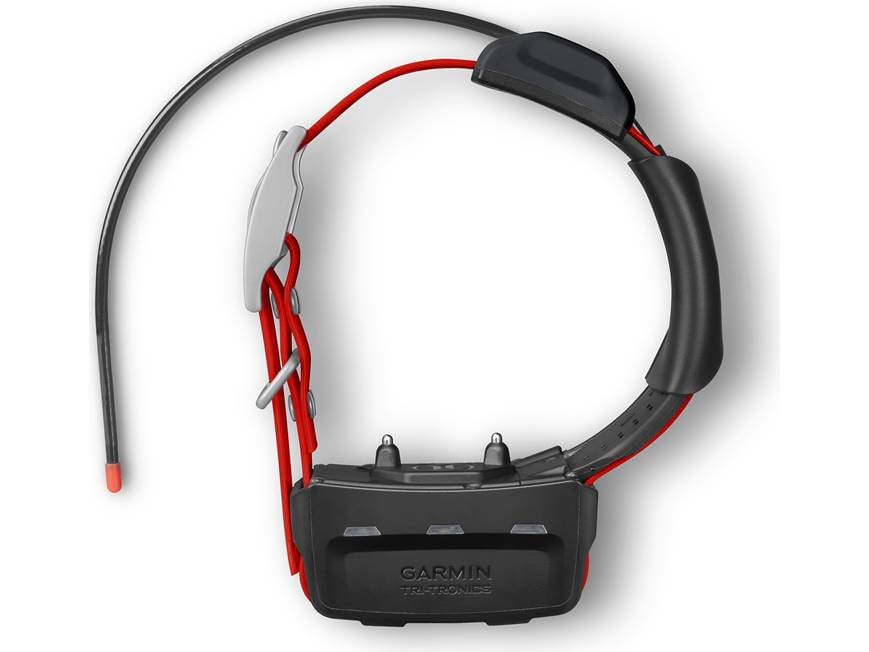

About the Garmin TT™ 15X Dog Collar
Product highlights:
- dog training and tracking device for use with compatible Garmin handheld systems
- top-mounted, high-sensitivity GPS/GLONASS receiver for better tracking than GPS alone
- range: 9 miles
- 18.5" standard antenna
- 22.5" extended-range antenna
- user replaceable red 1" collar strap fits minimum neck circumference of 9.5"
- water rating: 1 ATM (10 meters)
- remotely operable LED beacon lights to locate your dog in low-light situations
- compatible with Astro® 320 and 430 devices for tracking only
- compatible with various Garmin Alpha devices for training and tracking
- non-stimulating audible tone and vibration options
- traditional stimulation allows you to make quick changes (low, medium, or high) within a predetermined stimulation level (1-6)
- linear stimulation allows progressively more stimulation from levels 1-18
- cannot be tracked simultaneously by both Astro and Alpha devices
- powered by rechargeable lithium-ion battery (cable included)
- approximate battery life: up to 80 hours
- sleep mode disables active tracking (toggle on/off using handheld device)
- rescue mode conserves battery power when battery life is below 25%
- 3-1/2"W x 1-3/4"H x 1-7/8"D
- weight: 10 oz. (including collar)
- warranty: 1 year
- MFR # 010-02755-80
- Item # 1500275580
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Garmin TT™ 15X Dog Collar owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Dog tracking/training device on 25" x 1" red collar strap
- 2 Short contact points (installed)
- 21" Extended range antenna (installed)
- 18.5" Standard antenna
- Charging clip with 13" cable (right-angled female Mini-B USB plug)
- 68" DC vehicle battery charging cable with male Mini-B USB plug (DC output: 4.75-5.25 volts/1A)
- AC adapter with attached 5' DC output cable (DC output: 5V 1A)
- US 2-prong AC plug adapter
- 2 Long contact points
- Contact point wrench
- Contact point rubber cover
- Quick Start Manual
- Important Safety and Product Information
- Power Adapter Assembly Instruction
More details on the Garmin TT™ 15X Dog Collar
Product Research
Features
Overview: The Garmin TT 15X Dog Device is a long range dog tracking and training collar, with a sensitive GPS receiver, VHF radio transceiver, and corrective stimulation device. The TT 15X works with the Alpha 200i, Alpha 200, Alpha 100, Alpha 10, Astro 430, and PRO 550 Plus handheld devices (all sold separately). The collar comes with two sets of contact points, and a charging clip with AC and DC power adapters.
Dog Collar Device: The TT 15X's device is mounted to the top of a 1" wide red polyurethane-coated collar strap. This rugged device is water resistant with a 1 ATM rating (withstands pressures equivalent to a depth of 10 meters). With a compatible handheld device, you can track your dog up to 9 miles away. The collar comes with interchangeable antennas: a 21" extended range antenna (attached) and an 18.5" standard antenna. In addition to GPS tracking, the device can also be used to adminster corrective stimulation when training. Two sets of contact points (long and short) are included.
GPS Tracking: The TT 15X lets you track your dog's location from up to nine miles away. The device uses data from GPS (Global Positioning System) and GLONASS (Russia's version of GPS) satellites to pinpoint its location. The GPS data is transmitted via VHF radio frequencies to the handheld unit. The Alpha 200/200i handheld device lets you view your dog's location on a map. Up to 20 dogs collar devices can be linked to a single handheld device.
Dog Training: The TT 15X Dog Device can be an effective tool for training your dog, when used with an Alpha handheld device. The device can deliver tone, vibration, and corrective stimulation through the included contact points. Choosing the type and intensity of stimulation requires hours of experimentation through different stages of training.
LEDs: The TT 15X is equipped with three LEDs on its side. These LEDs show the status of the dog collar device by glowing or flashing different colors: Flashing (turning on), Solid Red (turning off or charging), Solid Green (charged), Double-blink or Triple-blink Green (acquired satellite signals), Flashing Green (ready to link to handheld device).
Collar Strap: The collar fits dogs with neck sizes of 9.5" in circumference and up. Additional 1" collar straps are available from the manufacturer in a wide variety of colors.
Power Options: The TT 15X is powered by a Lithium-ion rechargeable battery. Estimated battery life is up to 80 hours per charge, and can be charged via the charging clip and the AC or DC power adapters included. Battery life varies with the handheld device in use. The battery is user-replaceable when it becomes worn out. A replacement battery (item # 361-00029-04) is available from the manufacturer.
Software Updates: Updates to the TT 15X dog collar device can be downloaded using Garmin Express software, available for Mac and Windows.
Specifications:
- Operating Temperature Range: -4° to 140°F (-20° to 60°C)
- Charging Temperature Range: 32° to 104°F (0° to 40°C)
- Wireless Frequencies: 152-169 MHz @ 24.2 dBm maximum, 2.4 GHz @ 6.9 dBm maximum
- Dimensions: 3.466" length x 2.119" height (including points) x 1.873" width
- Device Weight: 7.3 ounces (10 ounces with the collar)
