Shure BLX14/CVL Wireless lavalier microphone system — includes BLX4 wireless receiver, BLX1 bodypack transmitter, and CVL lavalier microphone (542-572 MHz, Band H10)

Name: Shure BLX14/CVL
Brand: Shure
SKU: 183BL14CVH
Price: 359.0 USD
Availability: InStock
Rating: 5.0 (3 reviews)

Item # 183BL14CVH

Shure's BLX14/CVL wireless lavalier system includes the CVL lavalier microphone, a BLX1 bodypack transmitter, and...

Front

1/8

2/8

Only at Crutchfield

3/8

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Back

Shure's BLX14/CVL wireless lavalier system includes the CVL lavalier microphone, a BLX1 bodypack transmitter, and...

Item # 183BL14CVH

Free 1-day shipping to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$359.00

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-555-9369

by Crutchfield's Bob Bihlmayer

You won't see me

Shure's BLX14/CVL wireless lavalier system includes the CVL lavalier microphone, a BLX1 bodypack transmitter, and the BLX4 single-channel receiver. This package offers discreet amplification and freedom of movement for instructors, educators, and any speaker who doesn't want to be tethered to a mic onstage.

Start me up

It's simple to set up the system's transmitter and receiver. Press the Group button on the receiver and it automatically scans for the clearest group and channel. Then just set the transmitter to the same group and channel settings and you're ready to go. You can also set the Group and Channel manually, plus you can run up to 12 systems simultaneously depending on channel availability and RF environment. The transmitter will run for up to 14 hours on two AA batteries.

I'm set free

The CVL lavalier microphone offers unobtrusive miking for spoken-word applications, while the BLX1 bodypack transmitter completes a light and portable wireless solution. The BLX14/CVL system offers understated appearance and freedom of movement, delivering Shure sound quality in a simple package.

When considering a wireless system, you'll want to pick the frequency band with the least interference from local TV stations. Shure's Wireless Frequency Finder will show you the TV stations in your area, along with a list of recommended channels. Choose the frequency band that gives you the most open channels.

Highlights:

wireless lavalier mic system with bodypack transmitter and single-channel receiver
lavalier electret condenser microphone for spoken word applications
includes 2 windscreens, clothing clip, power supply, and 2 AA batteries
operating range: 300' (line of sight)
battery life: up to 14 hours
transmitter LED indicates battery status
locking transmitter and receiver controls

Electronic features:

receiver XLR and 1/4" outputs
frequency response: 50-15,000 Hz
gain adjustment range: 26 dB

General features:

dimensions:
- BLX1: 4.33" L x 2.52" W x 0.83" D
- BLX4: 1.47" H x 6.98" W x 4.58" D
weight:
- BLX1: 2.6 oz.
- BLX4: 8.5 oz.
warranty: 2 years
MFR # BLX14/CVL-H10
Item # 183BL14CVH
California customers: Please click here for your Proposition 65 WARNING.

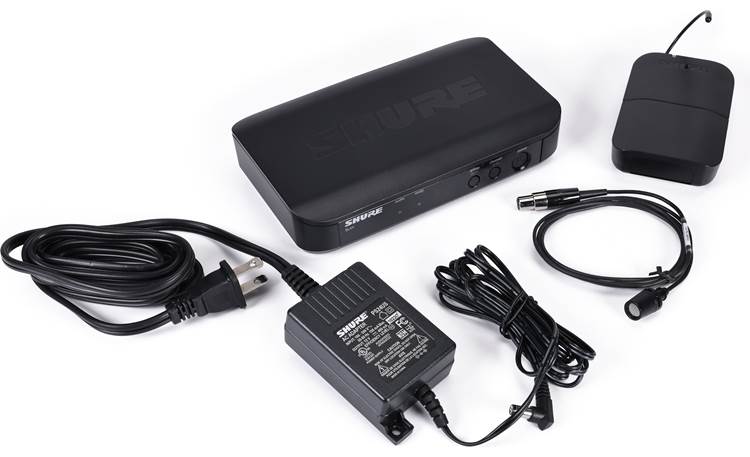

What's in the box:

Shure BLX14/CVL owner's manual

BLX4 Single-channel receiver
BLX1 Bodypack transmitter
CVL Lavalier microphone with attached 52" cable (TA4F plug)
2 Foam windscreens
Clothing clip

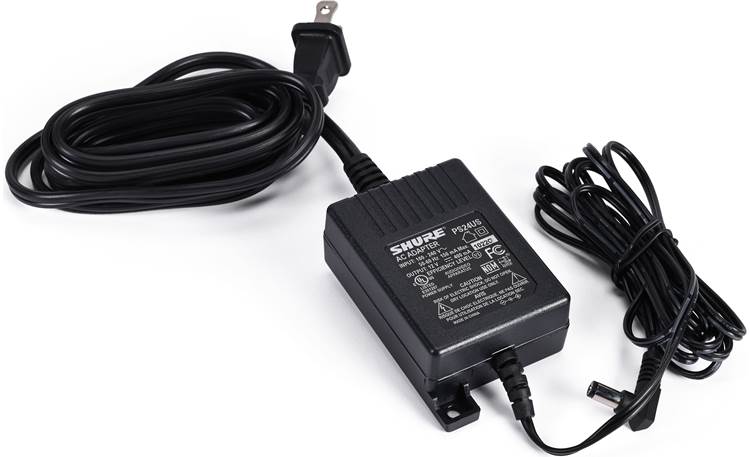

PS23US Power supply (DC output: 12V 400mA)
2 AA alkaline batteries
User Guide (BLX)
User Guide (CVL)
Limited Warranty

Researched by Crutchfield's Russ B.

Product Research

Features

Overview: The Shure BLX14/CVL Wireless Microphone System consists of the BLX4 Wireless Receiver, the CVL Lavalier Condenser Microphone and the BLX1 bodypack transmitter. You can operate up to 12 compatible systems per frequency band (depending upon your region). This system operates on the H10 frequency band (542 to 572 MHz), and has a transmitting range of approximately 300 feet.

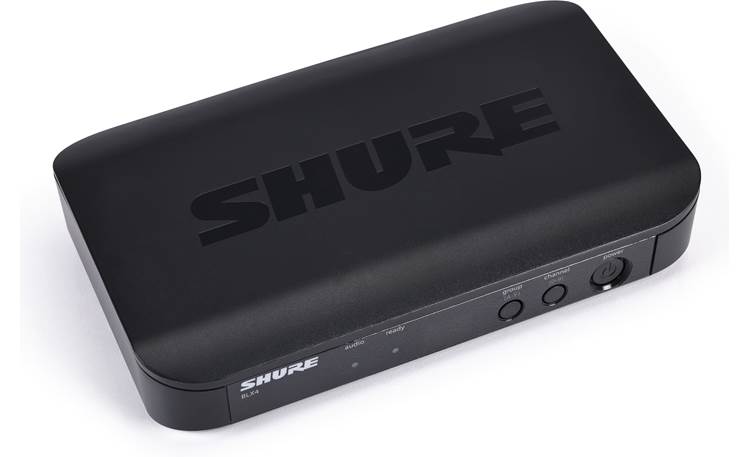

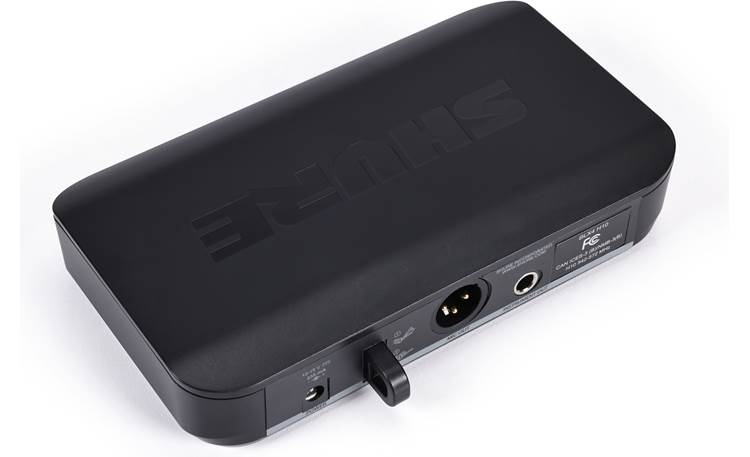

BLX4: The BLX4 Single Channel Wireless Receiver features one-touch QuickScan frequency selection to help you find the best open frequency for less interference. You can also manually change the group and channel assignments, if needed. It has an XLR mic output, as well as a 1/4" instrument-level output jack. The BLX4 is simple to set up, and has a microprocessor-controlled internal diversity antenna system. It has two LED indicators: an Audio LED to indicate the strength of the incoming signal (glows green for normal and red for overload), and a Ready LED to indicate the system is ready for use and receiving the transmitter signal. It is powered by the supplied 12-volt DC power supply.

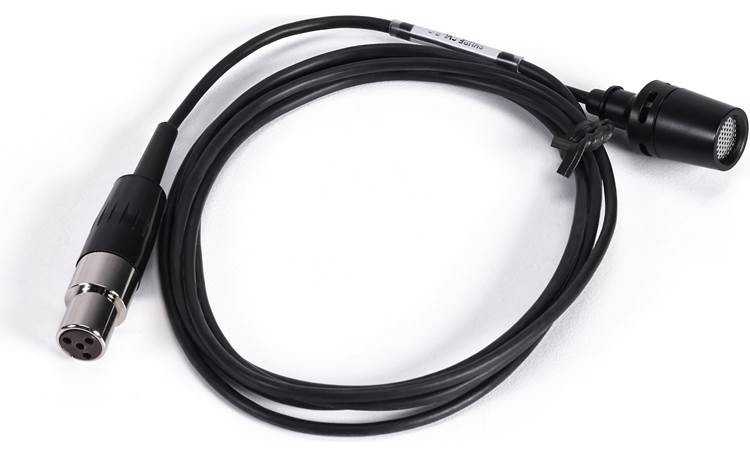

CVL Lavalier Mic: The CVL Lavalier Condenser Microphone is ideal for speech and other applications. The mic is unobtrusive, and can be attached to your clothing. Its unidirectional cardioid polar pattern provides excellent off-axis rejection for higher gain-before-feedback when used with a stage monitor. The CVL comes with two foam windscreens and a clothing clip to keep the cable secure. The 52" cable is terminated by a 4-pin TA4F connector that plugs into the BLX1 bodypack transmitter.

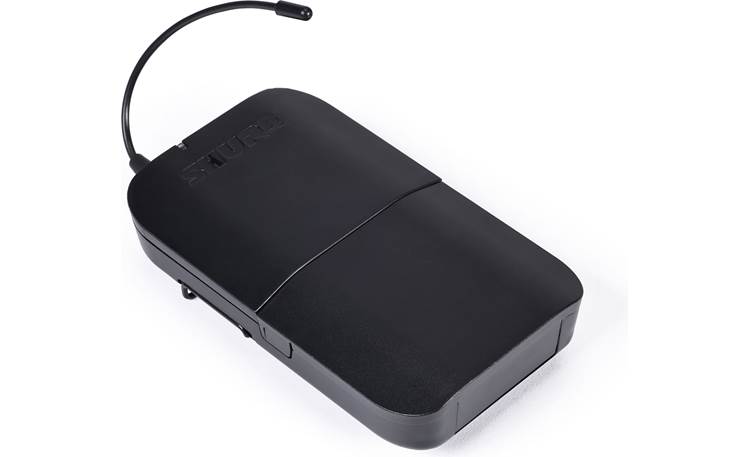

BLX1: The CVL is paired with the BLX1 bodypack transmitter. It is powered by 2 "AA" alkaline batteries (included), which provide approximately 14 hours of battery life. The BLX1 has independent group and channel buttons for easy setup. The transmitter has a convenient clip for attaching it to a belt or pocket.

Specifications:

Frequency Response:
- BLX4 Receiver/BLX1 Transmitter: 50-15,000 Hz
- CVL: 60-12,000 Hz
Maximum SPL (CVL): 139 dB
Output Impedance (CVL): 600Ω
Gain Adjustment Range (BLX1): 26dB
RF Transmitter Output (BLX1): 10mW, typical
Dimensions/Weight:
- BLX4: Width 6.985", Height 1.475", Depth 4.584", Weight 8.5 ounces
- CVL: Diameter 0.51", Length 1.088", Weight 0.88 ounces
- BLX1: Width 2.52", Height 4.33", Depth 0.83", Weight 2.6 ounces
