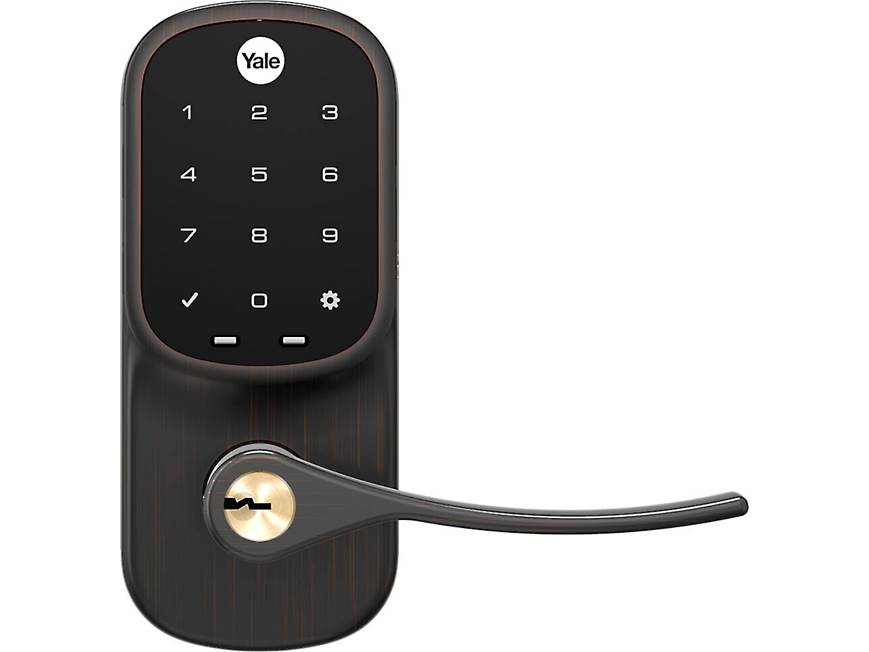

Yale Assure Lever Touchscreen with Z-Wave Smart lock and lever with Z-Wave (Oil-rubbed bronze)

Item # 198L226ZBP

Reduce the hassle of managing access to your home and get smart features that make your life easier.

Reduce the hassle of managing access to your home and get smart features that make your life easier.

California customers:
Please click here for your Proposition 65 warning.

Item # 198L226ZBP

In stock
$229.99

Other options

About the Yale Assure Lever Touchscreen with Z-Wave

Ned O.

Smart lever lock with app control

Want to add convenient security to a side entrance, basement door, or interior room? This Assure Lever Touchscreen lock from Yale is designed specifically for those types of single-hole doors — in other words, doors without deadbolts. It gives you flexible control over who gets access to your home — and when — along with other smart conveniences.

Smart lever lock with app control

Want to add convenient security to a side entrance, basement door, or interior room? This Assure Lever Touchscreen lock from Yale is designed specifically for those types of single-hole doors — in other words, doors without deadbolts. It gives you flexible control over who gets access to your home — and when — along with other smart conveniences.

Z-Wave included for access from just about anywhere

This lock also comes with the Yale Z-Wave Plus Smart Module that fits into the slot above the battery compartment. It connects to your home network for expanded smart features, with control from anywhere using your smartphone. You'll just need an internet connection and a Z-Wave hub like the one that comes with Ring Alarm systems, which include a hub built into their base station.

Z-Wave is a proven smart home automation protocol that operates as a mesh network on much lower frequencies than Wi-Fi, Bluetooth, Zigbee, and others. Using it to control smart devices can reduce congestion on your Wi-Fi network. Check out our article on the best smart locks to learn more.

Coded touchscreen access

This smart lock features an illuminated touchscreen for easy coded access. And you can create and manage up to 250 unique entry codes for giving access to different people.

Smart alerts

Get notifications on your phone that show you who's coming and going and when, or if the door is left ajar — thanks to the included DoorSense™ unit.

Share access

You can also set schedules and routines, giving family, friends, and workers unique codes and time windows for access. That means they'll have keyless access when you allow it, and none when you don't.

READ LESS

Product highlights:

  • smart door lock and lever for single-hole doors (without a deadbolt)
  • voice guidance walks you through setup and customization
  • create up to 250 unique passcodes between 4 and 8 digits in length
  • easy-to-read illuminated touchscreen
  • locks with one touch anywhere on the touchscreen
  • includes Yale Z-Wave Plus Smart Module
  • integrates with smart home automation and alarm systems including Ring, Samsung SmartThings, Honeywell, ADT, Wink, and more
    • monitor, lock, and unlock from anywhere
    • schedule access for different users' codes
    • receive notifications and view access history
Door compatibility:
  • fits doors 1-3/8" to 1-3/4" thick
  • fits doors with a backset distance of 2-3/8" or 2-3/4" (measurement from the edge of the door to the center of the bore hole)
  • face bore hole: 2-1/8"
  • edge bore hole: 1"
Specs and warranty:
  • powered by 4 replaceable "AA" batteries (included)
  • exterior: 2-9/16"W x 6-1/16"H x 2-7/16"D (lever length: 4-1/4")
  • interior: 2-3/4"W x 6-7/16"H x 3"D
  • warranty: limited lifetime warranty for finish and mechanical; one year for electronics
  • MFR # YRL226-ZW2-0BP

What's in the box:

  • Interior lock assembly (Oil Rubbed Bronze) with attached battery cover
  • Interior mounting plate (attached)
  • Touchscreen assembly (Oil Rubbed Bronze) with attached 6" cable
  • 2 Levers (Oil Rubbed Bronze)
  • Z-Wave Plus Smart Module
  • Latch assembly
  • Strike plate
  • Battery cover key
  • 4 AA alkaline batteries
  • 4 Combination screws (#7 Wood + #8-32 machine x 20mm)
  • 2 Machine screws (#8-32 x 5/16")
  • 2 Pan Head Machine screws (M4 x 22mm)
  • 2 Wood screws (length 3")
  • Keyed lock cylinder
  • 1 Key
  • Installation and Programming Instructions
  • Door marking template
  • Support/Registration sheet (yellow)
  • Smart Module Installation Guide

Customer reviews for Yale Assure Lever Touchscreen with Z-Wave

We don't have any reviews, yet.
Submit a review and then enter to win a $350 gift card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Yale Assure Lever Touchscreen with Z-Wave

Mark G.

Product Research

Features

Overview: The Yale Assure Lever Touchscreen with Z-Wave Plus (YRL226-ZW2) is a push-button lever lock for single-hole doors (without a separate dead-bolt), including side entries, garages, basements, and more. The lock offers keyless entry through the use of the backlit touch-sensitive keypad, or keyed entry, if desired. One key is included. The lever lock includes the Yale Smart Module with Z-Wave technology to integrate the lock into compatible home automation and alarm systems. You can store up to 250 unique entry codes, between 4 and 8 digits, to gain entry to your door. The Yale Assure smart lock is powered by 4 "AA" alkaline batteries (included). The Assure Lever Touchscreen comes with a Satin Nickel, Oil Rubbed Bronze, or Black Suede finish and is covered by a Limited Lifetime warranty for the finish and mechanical operation of the lock. The electronics are covered for one year.

Door Compatibility: You can install the Yale Assure Lever Lock on doors with a thickness of 1-3/8" to 1-3/4". The door should have a backset distance of 2-3/8" or 2-3/4" (from the edge of the door to the center of the bore hole), with a face bore hole of 2-1/8" and an edge bore hole of 1".

Installation Overview: The Yale Assure Lever Touchscreen fits left-handed or right-handed doors. Once you have removed the existing door hardware, you should use the included template to be sure your door is compatible (with the proper door thickness, backset placement, and bore hole size). The new latch and strike plate are installed in the bore holes. There are two components of the door lock -- the external escutcheon with the touchscreen, and the internal escutcheon with the battery compartment and Smart Module. The external unit is mounted to the door and attached to the inside mounting plate on the other side with the long through screws. The two units plug together via the 10-pin cable attached to the touchscreen unit. The internal escutcheon mounts to the mounting plate via two short screws. Once the levers and other hardware are installed and tested mechanically, you can install the 4 "AA" batteries into the slot in the battery compartment.

Yale Assure Lock Features: The Yale Assure Lock offers the following general features:

  • Master Entry Code: The Lever Lock is protected by a Master Entry Code which must be created before you can program the lock. The code should be between 4 and 8 digits. You can create unique entry codes for friends and family and remove codes whenever you need to.
  • Automatic Re-lock: You can program the Lever Lock to automatically re-lock after a preset amount of time: 30 seconds, 60 seconds, 2 minutes, or 3 minutes. The default setting is "disabled."
  • Inside Indicator Light: The indoor escutcheon has an LED indicator to show you at a glance if the door is locked or unlocked. The default setting is "enabled."
  • One Touch Locking: When the latch is retracted, you can press any key on the touchscreen to immediately lock the door. The default setting is "engaged."
  • Audio Mode: When an Entry Code is entered correctly, the Lever Lock will sound a confirmation tone. If you wish to defeat the tones, you can disable the feature through programming.
  • All Code Lockout: This mode restricts access to all users except with the Master Entry Code. When one of the other Entry Codes is entered, the touchscreen flashes 8 times, and beeps 3 times.
  • Shutdown Time: The lock will shut down for 60 seconds and not allow operation after the incorrect code entry limit has been reached (5 attempts).
  • Battery Backup: If the lock's batteries are exhausted, you can gain entry with the use of the included key. You can also touch a 9-volt battery to the battery contacts on the touchscreen to temporarily power the lock to gain entry.
  • Grade 2 Rated: The Yale Assure Lock is certified as a Grade 2 lock by ANSI for construction and durability. Grade 2 locks require a key in knob/lever, and must hold up to 225 lb-in. It must also complete 400,000 operating cycles without fail during testing.

Z-Wave Plus Smart Module: The Yale Assure Touchscreen Lock includes the Yale Z-Wave Plus Smart Module (AYR202-ZWV-USA). The Smart Module features wireless Z-Wave technology and connects to compatible Z-Wave smart home hubs, including Ring Alarms, Samsung SmartThings, Wink, Arlo, Honeywell, and ADT. The module allows you to lock and unlock your door from anywhere through the system's app. You can create multiple pin codes for family members and friends, receive notifications, and view an access log to see who's coming or going. The Smart Module also lets you lock the door using voice commands with Amazon Alexa when used with Samsung SmartThings or Wink.

Dimensions: The Yale Assure Lever Lock's main components have the following dimensions:

  • Outdoor Escutcheon: Width 2.613", Height 6.057", Touchscreen Depth 0.717" Overall Depth 4.34", Weight 15.45 ounces
  • Indoor Escutcheon: Width 2.752", Height 6.406, Battery Compartment Depth 1.362" Overall Depth 4.755", Weight 25.6 ounces (w/batteries)
