Kicker 49L7X121 SoloX L7X 12" dual 1-ohm voice coil component subwoofer

Name: Kicker 49L7X121
Brand: Kicker
SKU: 20649L7121
Price: 749.99 USD
Availability: InStock
Rating: 4.0 (3 reviews)

Item # 20649L7121

This competition-grade sub will deliver bass so big you'll hardly believe it.

Front

1/6

Back

2/6

Only at Crutchfield

3/6

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

This competition-grade sub will deliver bass so big you'll hardly believe it.

Item # 20649L7121

Ships free

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$749.99 each

Add to cart

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Bob Bihlmayer

Top-quality low end

Kicker's Solo-Baric square-cone subwoofer technology has been turning heads and popping ears for decades. The square cone offers more surface area than a conventional square cone, and that means more bass. Now they've created the SoloX^® L7X™ — their ultimate competition subwoofer — capable of extreme power-handling and massive output and made for quick servicing in the field.

Designed to excel

The 49L7X121 starts with a cast aluminum basket that supplies the rigidity needed for solid output. Its double-pressed pulp cone and Santoprene rubber surround are designed with Kicker's square cone technology, with ribbed corners for consistent movement. Its 3" aluminum voice coil stays cool while dishing out the heat. This sub will handle up to 2000 watts RMS, so you'll produce prize-winning bass at volume levels no one else can touch.

Totally wired

Kicker's unique SoloX wiring terminals make it easy to connect your sub. Each spring-loaded terminal accepts up to 8 AWG wire, and a dual 8 AWG terminal block above it makes series or parallel wiring a breeze.

Recone in the field

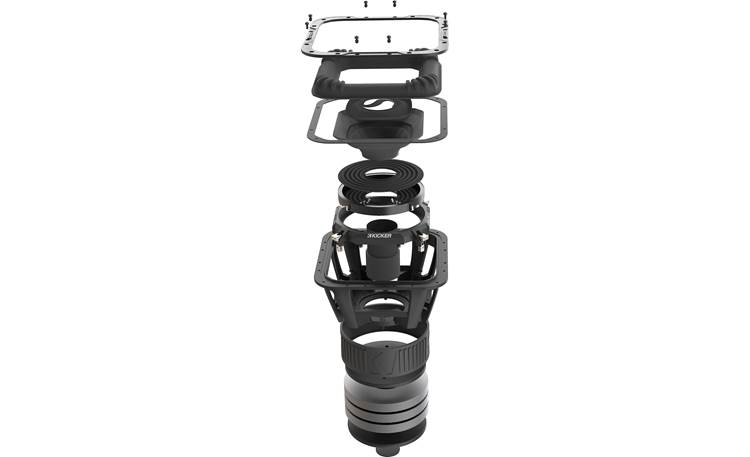

The L7X is designed to allow a quick recone in the field. The 49L7X121RK Field-Replaceable Recone Kit for the 49L7X121 (sold separately) includes its exclusive surround compression system, bolt-on spider landing, and helpful alignment shims to allow you to reboot your blown sub in minutes with no gluing required.

With its combination of rugged construction, serious power handling, and user serviceability, the 49L7X121 is ready to send your bass sound to the top of the charts.

Product highlights:

12" subwoofer with dual 1-ohm voice coils
double-pressed pulp cone with Santoprene rubber surround
dual-spider suspension
cast aluminum basket
power handling: 2000 watts RMS (4000 watts peak)
frequency response: 20-100 Hz
sensitivity: 85.63 dB
top-mount depth: 10.125"
cutout width: 11.06"
ported box volume: 3 cu. ft.
Field-Replaceable Recone Kit available (sold separately)
grille not included
warranty: 2 years
MFR # 49L7X121
Item # 20649L7121

What's in the box:

Kicker 49L7X121 owner's manual

One square 12" Dual 1-ohm voice coil subwoofer
Information sheet with QR code to owner's manual
2 Kicker decals
Template on box lid

Researched by Crutchfield's Pat M.

Features & specs

Features and Specs
Size	Square 12-inch
Impedance (Ohms)	0.5, 2
Cone Material	Pulp
Surround Material	Santoprene Rubber
Basket Material	Cast Aluminum
Grille	None included
Free-Air	No
Dual Voice Coil	Yes
Sensitivity	85.63 dB at 1 watt
Frequency Response	20 - 100 Hz
Max RMS Power Handling	2000
Peak Power Handling (Watts)	4000
Top Mount Depth (inches)	10 1/8
Bottom Mount Depth (inches)	N/A
Cutout Diameter or Length (inches)	11 1/16
Frame Width	12.604
Frame Length	12.604
Vas (liters)	18.0484
Fs (Hz)	40.3
Qts	0.487
Xmax (millimeters)	31.25
Parts Warranty	2 Years
Labor Warranty	2 Years
Box Requirements
Ideal Sealed Box Volume (cubic feet)	N/A
Minimum Sealed Box Volume (cubic feet)	N/A
Maximum Sealed Box Volume (cubic feet)	N/A
Ideal Ported Box Volume (cubic feet)	3
Minimum Ported Box Volume (cubic feet)	2
Maximum Ported Box Volume (cubic feet)	3.6
Port diameter (inches)	N/A
Port length (inches)	N/A

Product Research

Features

Dual Voice Coils: For increased system flexibility, the woofer has two 1Ω voice coils. When the voice coils are wired in parallel, the woofer presents a ½Ω load; when wired in series, the woofer presents a 2Ω load.

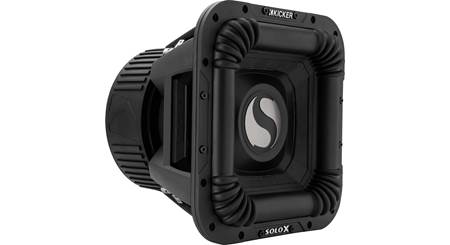

Square Design: By making the SoloX square, Kicker is giving you the most possible cone area (Sd) for a given size baffle, 16% to 20% more area than a conventional round subwoofer. More cone area means the cone moves more air, resulting in louder, deeper bass.

Terminals: There are two set screw terminals shorted to each spring terminal, making it easy to connect multiple subwoofers. Each terminal accepts bare wire up to 8-gauge.

Break-in Period: Due to the complex nature of Kicker's subwoofers, they require a break-in period in order to produce optimum bass response. The high-performance suspension system makes the speakers very stiff out-of-the-box. Approximately two weeks of daily playing will allow the suspension to break-in and reach its optimum equilibrium. A broken-in subwoofer will exhibit stronger bass performance, smoother response, and greater low-bass extension.

Enclosure: Kicker recommends a 3 ft³ ported enclosure with a 13" x 3½" x 36½" slot port, yielding a tuning frequency of 31 Hz.

Cutout: The woofer will not mount in a standard enclosure with a round cutout. Instead, the woofer must be mounted in an enclosure with a 11.06" x 11.06" square opening.

Loading accessories...

2 questions already asked

What amplifier is recommended for this subwoofer?

lawrence Jun 12, 2025

1 answer

Greeting. Thank you for your question. This Kicker subwoofer would be wired to be 2 ohms. You would want an amplifier that can do close to 2000 watts at 2 ohms. The Kicker LX3000.1 will do the 2000 watts at 2 ohms. https://www.crutchfield.com/p_20651LX300/Kicker-51LX3000-1.html?tp=35834

thomas Jun 12, 2025 (Staff)

How much does the speaker weigh?

carl1111 May 15, 2024

1 answer

Greetings Brian. Thank you for your question. All I have for you is the shipping weight including all the packaging materials at 69 pounds.

thomas May 15, 2024 (Staff)
