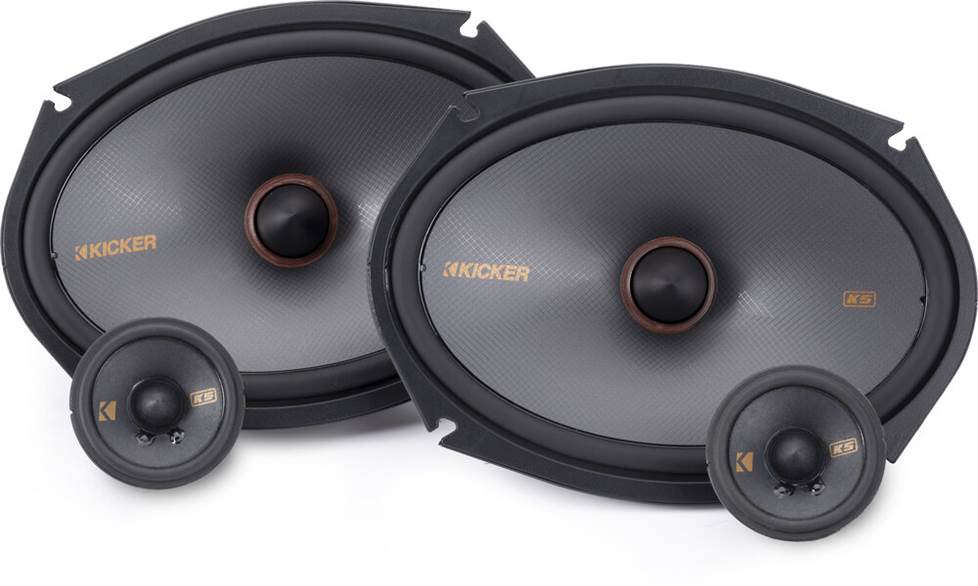

About the Kicker KSS269
Product highlights:
- component speaker system includes 2 woofers and 2 dash speakers
- 6"x9" woofer cone with rubber surround
- 2-3/4" tweeter with inline crossover
- handles up to 100 watts RMS (200 watts peak power)
- frequency range: 30-20,000 Hz
- sensitivity: 92 dB
- tweeter top-mount depth: 1.246"
- woofer top-mount depth: 2.922"
- tweeter brackets included to fit select vehicles
- grilles not included
- impedance: 4 ohms
- warranty: 2 years
- MFR # 51KSS269
- Item # 20651KSS26
What's in the box:
- Two KSS690 6x9 Woofers

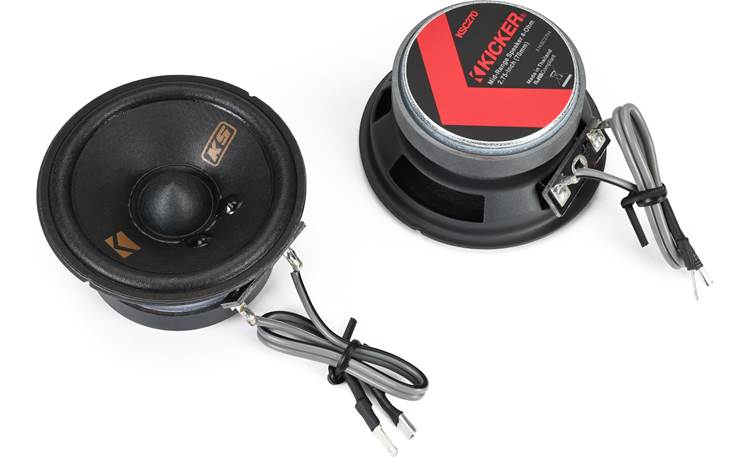

- Two KSC270 2-3/4 Tweeters

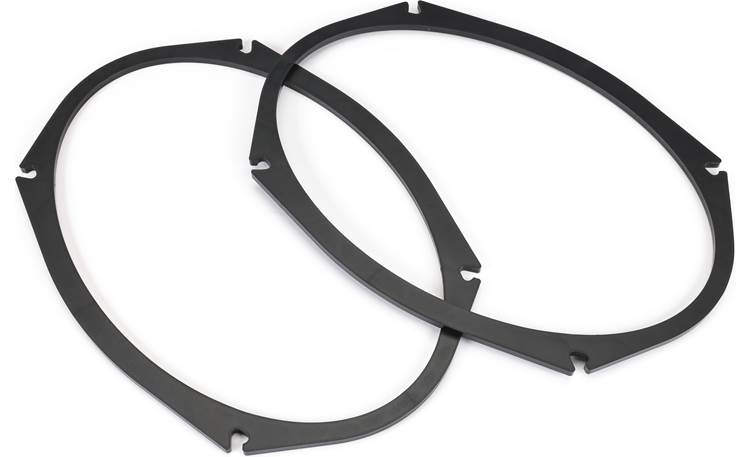

- Two 6x9 Spacers

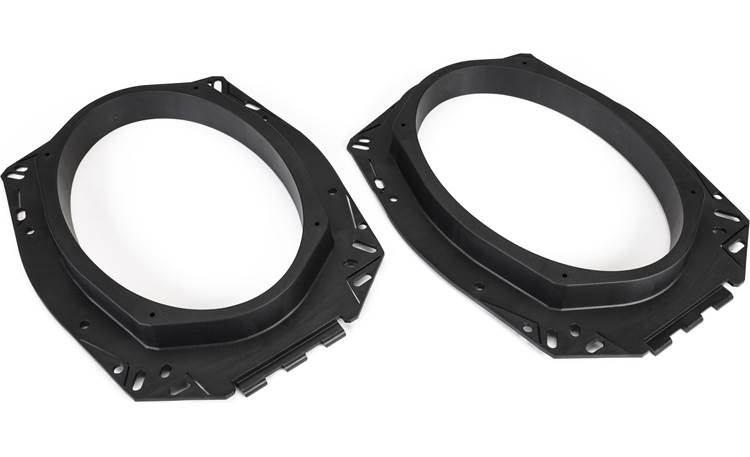

- Two 6x9 Multi-purpose adapter brackets (include GM and Toyota applications)

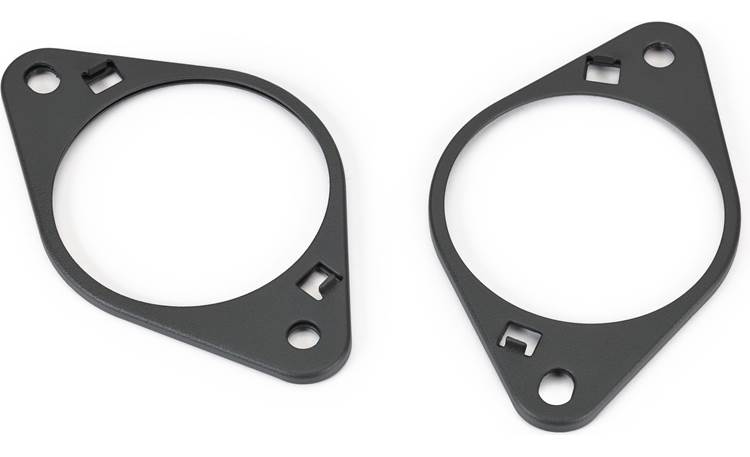

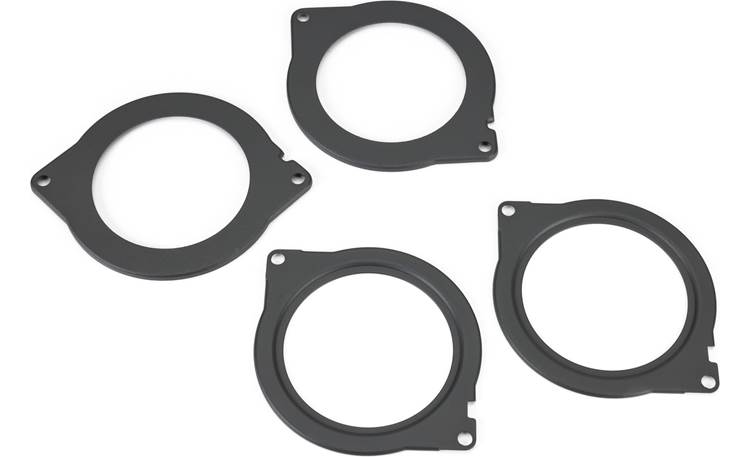

- 2 GM/Mopar tweeter brackets
- 2 Chrysler/Jeep tweeter brackets
- 2 Toyota/Subaru tweeter brackets

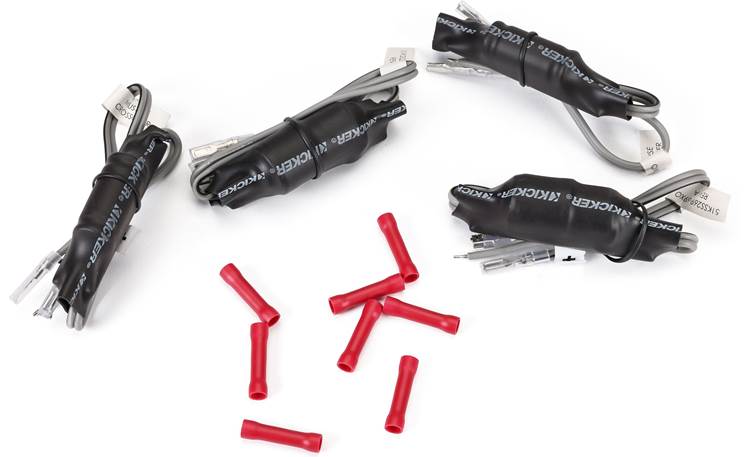

- Two 12" Lengths of woofer wire with in-line crossovers (each has bare wire on the input end and female quick-slides on the output end)
- Two 14" Lengths of tweeter wire with in-line crossovers (each has bare wire on the input end and male/female quick-slides on the output end)
- Twelve 1-1/8" Screws
- 8 Red plastic wire caps
- 2 Adhesive backed foam strips
- Quick-Start guide (English/ Spanish/ German/ French)
- 6x9 Template
More details on the Kicker KSS269
Features & specs
| General | ||
|---|---|---|
| Speaker Size | Vehicle-specific | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Polypropylene | |
| Woofer Surround | Rubber | |
| Midrange Design | --- | |
| Midrange Material | --- | |
| Tweeter Design | Cone | |
| Tweeter Material | Composite Paper | |
| Super Tweeter Design | --- | |
| Super Tweeter Material | --- | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | No | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 92 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 30 - 20k Hz | |
| Maximum RMS Wattage | 100 | |
| Peak Power Handling (Watts) | 200 | |
| Top-mount Depth (Inches) | 2 15/16 | |
| Bottom-mount Depth (Inches) | 3 3/16 | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.242 | |
| Frame Width | 6.652 | |
| Frame Length | 9.217 | |
Product Research
Features
Custom Brackets: The KSS269 is designed as a factory replacement speaker system. The included 6x9 woofers are typically installed in the front doors. The included mounting brackets are compatible with many Chrysler, GM, Jeep, Subaru and Toyota vehicles. The multi-purpose brackets are scored for trimming to fit several applications. Please enter your vehicle information to confirm fit.
Spacers: The included 6x9 spacers can be used to adjust the woofers' depth when top or bottom mounting. The adjusted measurements become:
- Top Mount:
- Depth: 2.761"
- Height: 0.403"
- Bottom Mount:
- Depth: 3.307"
- Tweeter Protrusion: 0.0"
Tweeters: The included 2¾" speakers replace the factory tweeters. Three sets of brackets are included, so they're drop-in replacements for many Chrysler, GM, Jeep, Subaru and Toyota vehicles.
Crossover Network: Individual crossovers are included for each of the woofers and tweeters, wired in-line with the included speaker wires. The output end of each woofer crossover wire has quick slides that plug directly onto the woofer terminals. The output end of each tweeter crossover wire also has quick slides; in this case they plug into the terminals of the wires attached to the tweeters. The woofers and tweeters have different terminals, so the crossovers cannot be mixed up. The input ends of the wires are not terminated.
The Kicker KSS269 replaces these items:
- 6"x9" woofer cone with rubber surround
- 2-3/4" speaker with inline crossover
- handles up to 100 watts RMS (200 watts peak power)
Loading...
Loading accessories...
Customer Q&A
2 questions already asked
Loading...
Loading articles...
Huge difference in my 2016 silverado. Wish I could share video of before and after sound difference. All the brackets and wiring they sent me for my truck was easy plug and play. Definitely recommend this system and this company a+++
Patrick from CEDAR RAPIDS, IA
