Morel Virtus Nano Carbon 42 Virtus Nano Carbon Series 4" 2-way component speaker system

Item # 210VNC42

You'll get the ground-breaking performance of the Virtus Nano woofer with the warm highs of Morel's silk dome tweeter.

Find what Fits your vehicle

Remove

Checking fit...

You'll get the ground-breaking performance of the Virtus Nano woofer with the warm highs of Morel's silk dome tweeter.

California customers:
Please click here for your Proposition 65 warning.

Item # 210VNC42

Ships free

On backorder
Expected: 5/26/2024

Deeply discounted installation gear

$619.00

Other options

About the Morel Virtus Nano Carbon 42

Alexander H.

A cool solution for difficult installations

The time has come to upgrade the audio in your classic or custom car, and Morel has the eye-popping solution. The Virtus Nano 42 Carbon provides hi-fi performance while still fitting the most challenging locations in all of "automobilia." The key player here is the famous Virtus Nano woofer, which rocks a mounting depth of only 11/16". Morel uses their unique Hexatech™ aluminum voice coil and sandwich carbon fiber dome-shaped woofer to help deliver satisfying low-end punch and a rich, natural sound.

A cool solution for difficult installations

The time has come to upgrade the audio in your classic or custom car, and Morel has the eye-popping solution. The Virtus Nano 42 Carbon provides hi-fi performance while still fitting the most challenging locations in all of "automobilia." The key player here is the famous Virtus Nano woofer, which rocks a mounting depth of only 11/16". Morel uses their unique Hexatech™ aluminum voice coil and sandwich carbon fiber dome-shaped woofer to help deliver satisfying low-end punch and a rich, natural sound.

Excellent sound quality

True to form, Morel's engineering team tested and improved this component system until it exceeded their uncompromising standards. You'll get the ground-breaking performance of the Virtus Nano woofer with the warm highs of Morel's MT120N silk dome tweeter. The external crossovers will ensure you enjoy an ideal blend of the highs and lows and an incredible stereo image.

READ LESS

Product highlights:

  • 4" component speaker system
  • sandwiched carbon fiber convex woofer cone with butyl rubber surround
  • 1.1" Acuflex-coated silk dome tweeter
  • external crossover with 2 tweeter level settings
  • black steel woofer grilles included
  • handles up to 90 watts RMS (300 watts peak power)
  • frequency response: 80-22,000 Hz
  • sensitivity: 88 dB at 2.83 V
  • woofer mounting depth: 11/16"
  • woofer grilles included
  • warranty: 2 years
  • MFR # 350332-105

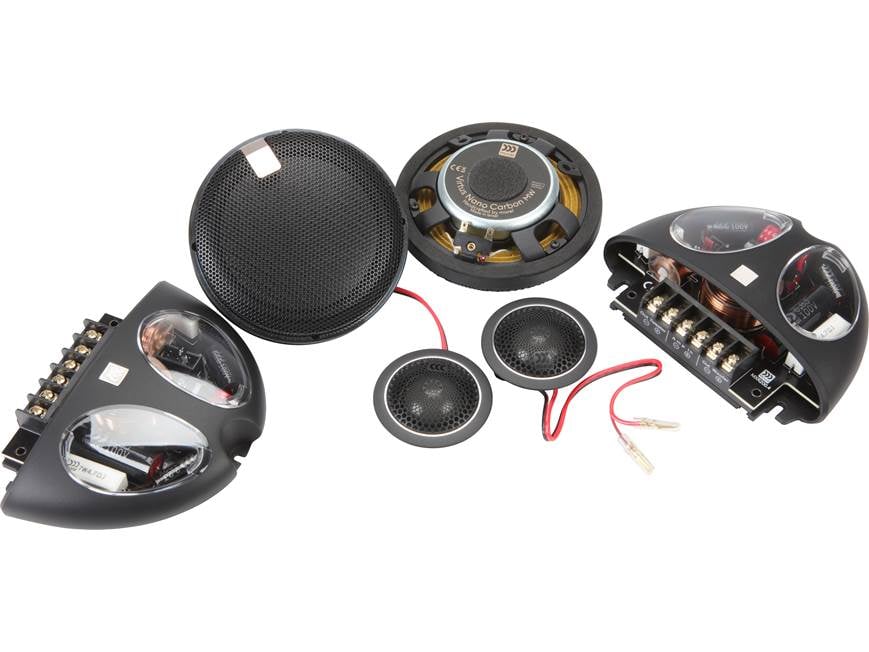

What's in the box:

  • Two Nano MW4 Woofers
  • Two MT 120N Tweeters (with attached 7" length of speaker wire)
  • 2 MXR200.4 Crossovers
  • 2 Woofer grilles
  • 2 Tweeter grilles (installed)
  • 2 Flush mount tweeter housings (tweeters installed)
  • 2 Flush mount clamps
  • 2 Angled surface mount tweeter housings
  • 2 Rubber bases for surface mount housings
  • Eight 5/8" Screws
  • Four 1" Screws
  • Six 3/4" Screws
  • 8 Speed clips
  • 8 Crimp-on female quick slides
  • Grille putty
  • Installation guide
  • Warranty card
  • Genuine product verification instructions

Customer reviews for Morel Virtus Nano Carbon 42

Loading reviews...

Average review:

5.0 out of 5 stars
1 review

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Morel Virtus Nano Carbon 42

Pat M.

Features & specs

General
Speaker Size 4
Design 2-way
Tweeter Design Dome
Impedance (Ohms) 4
Tweeter Composition Silk
Woofer Composition Carbon/Foam Core
Woofer Surround Rubber
Parts Warranty 2 Years
Labor Warranty 2 Years
Specifications
Sensitivity (1W at 1 meter) N/A
Sensitivity at 2.83 volts 88
Frequency Response 80 - 22k Hz
Minimum RMS Wattage ---
Maximum RMS Wattage 90
Peak Power Handling (Watts) 300
Top-mount Depth (Inches) 0 9/16
Bottom-mount Depth (Inches) 0 7/8
Cutout Diameter or Length (inches) 3 5/8
Mounting Height (Inches) 0.706
Frame Width 4.282
Frame Length 4.282

Product Research

Features

Woofer Dome: Morel describes the woofer as a Grand Dome, having a Triple Layer design; two exterior carbon fiber layers sandwiching a layer of Rohacell (a high strength, lightweight foam).

Controlled Acoustic Resistance: Car speakers are typically installed in free-air applications, providing minimal acoustic loading. Controlled Acoustic Resistance (C.A.R. Filter) improves the acoustic loading by controlling airflow within the driver, mimicking the effects of an enclosure. This provides greater control over the cone movement for improved bass dynamics.

Tweeters: The silk dome tweeters are coated with Acuflex, a damping compound designed to minimize distortion. The tweeters can be surface or flush mounted using the included adapters. The surface mount housing angles the tweeters at approximately 40°. The dome is very delicate, so the mesh grille should always be used.

Tweeter Dimensions:

  Flush Mount Angled Surface Mount
Mounting Height 0.305" 1.3"
Mounting Depth 0.75" screw depth
Cutout Diameter 1.815" N/A
Frame Diameter 2.2" N/A
Frame Width N/A 2.13"
Frame Depth N/A 2.7"

Crossover: The outboard crossovers have screw terminal inputs and outputs (0.315" wide). A jumper inside each crossover allows you to adjust the tweeter output level; choose -2 dB, 0 dB, or +2 dB. The crossover is slope 12 dB/octave at 2.2 kHz.

Crossover Dimensions:

  • Width: 5.55"
  • Height: 1.40"
  • Depth: 4.17"
