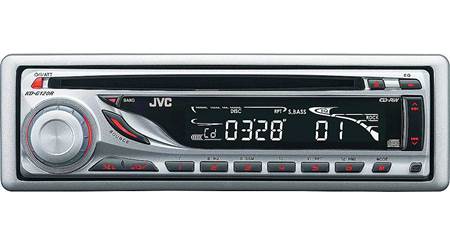

About the JVC KD-G120
Give your system a dose of clean, clear sound with JVC's KD-G120 CD player. Not only will it drive your speakers with its high-powered amplifier, it comes loaded with cEQ, a tone shaping tool that lets you tweak the sound to suit your car. Best of all, the KD-G120's detachable silver faceplate features clean, simple lines that will match just about any interior style.
Building a system? A set of preamp outputs offers a convenient connection for an external amplifier or a powered sub. And you'll be able to manage your bass right from the front seat with JVC's Super Bass Control feature and the KD-G120's subwoofer level control.
Product highlights:
- CD player with built-in amplifier (17 watts RMS/45 peak x 4 channels)
- plays CDs, CD-Rs, and CD-RWs
- Custom Equalizer (cEQ) — offers six preset tone settings (each setting can be adjusted to your taste) and a 2-band EQ
- detachable face
- one set of preamp outputs with subwoofer level control
- Super Bass Control
- CEA-2006 compliant
- 18 FM/6 AM presets
- clock
- CD frequency response: 5-20,000 Hz
- CD signal-to-noise ratio: 98 dB
- FM sensitivity: 11.3 dBf
- warranty: 1 year
- MFR # KDG120
What's in the box:
- AM/FM/CD receiver with 15-amp fuse inserted into chassis
- Sleeve
- Face
- Hard plastic face case
- Trim ring
- Wiring harness
- 1 Face security screw
- 2 Radio removal tools
- 1 Rear support stud
- 1 Flat washer
- 1 Hex nut
- 1 Rubber bushing
- Instructions (English/Spanish/French)
- Installation/Connection Manual (English/Spanish/French)
- "Before Electrical Connections" instruction sheet (English/Spanish/French)
- US warranty sheet
- Canadian warranty card
- Product Registration Card/Questionnaire
- Face security screw note
- "Caution" note (attached to wiring harness)
More details on the JVC KD-G120
Features & specs
| Expandability | ||
|---|---|---|
| AUX Input | No | |
| Audio/video Input | --- | |
| USB Input | --- | |
| USB Port Power | --- | |
| Backup Camera Input | No | |
| Second Camera Input | No | |
| CarPlay | No | |
| Android Auto | No | |
| Siri Control | No | |
| Alexa Voice Control | ||
| Android Control | No | |
| Memory Card Slot | No | |
| Bluetooth Compatible | --- | |
| Satellite Radio Ready | No | |
| HD Radio | --- | |
| Navigation | --- | |
| iPod Compatibility | ||
| Full size | --- | |
| Nano | --- | |
| Touch | --- | |
| iPhone | --- | |
| General | ||
| RMS Power (CTA-2006) | 17 watts | |
| RMS Power (Manufacturer) | --- | |
| Peak Output | 45 watts | |
| RMS Power Bandwidth | 40-20kHz | |
| Preamp Outputs | 2-channel | |
| Sub Preamp Outputs | No | |
| Switchable Rear Preamp Outputs | Yes | |
| Video Screen | No | |
| Navigation App Compatible (iOS) | ||
| Navigation App Compatible (Android) | ||
| Preamp Voltage | 2 volts | |
| Screen Size | --- | |
| Screen Type | --- | |
| Display Color | White | |
| Key Button Color | Red | |
| EQ Bands | None | |
| Wireless Remote | No | |
| Steering Wheel Control Compatible | --- | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Tuner | ||
| FM Sensitivity | 11.3 dBf | |
| European Tuning | Yes | |
| Seek/Scan | Seek | |
| Radio Data System | No | |
| File Playback | ||
| Music File Playback | ||
| High-res Playback | ||
Product Research
Features
Custom Equalizer (cEQ): In addition to manual bass and treble settings (-6dB to +6dB @ 100Hz and 10kHz), this unit also has six selectable preset tone control and loudness setting combinations. Each of the sound modes may be adjusted to your preference and stored in memory. The preset Custom Equalizer modes are:
- Rock: Bass = +3, Treble = +1, Loudness = On
- Classic: Bass = +1, Treble = -2, Loudness = Off
- Pops: Bass = +4, Treble = +1, Loudness = Off
- Hip Hop: Bass = +2, Treble = 0, Loudness = On
- Jazz: Bass = +2, Treble = +3, Loudness = Off
- User: Bass = 0, Treble = 0, Loudness = Off
Amplifier Gain Control: When you are using the KD-G120 with factory speakers (or those rated to less than 50 watts peak), the Amplifier Gain Control can limit the amount of power being sent to those speakers. When the Amp Gain Control is set to "low," the volume control ranges from 0 (minimum) to 30 (maximum). When using speakers rated higher than 50 watts peak, you can set the Amp Gain Control to "high," and the volume control will range from 0 to 50.
Switchable Rear Channel/Subwoofer Output: The preamp outputs can be set to "Rear" for full range output with full fading capability, or a non-fading "Woofer" output with output level adjustment. When "Woofer" is selected, you can adjust the subwoofer gain from 0 to +8.
Preferred Setting Mode: By activating the Preferred Setting Mode (PSM), you can set the clock, switch between US standard and European tuning spacing, and set the Amplifier Gain control (high/low).
Direct Track Access: You can directly access CD tracks 1-12 by pressing the station preset buttons. If a preset button is pressed for less than 1 second, the track corresponding to the number on the preset button is selected (for tracks 1-6). When a preset button is pressed for more than 1 second, the track corresponding to the number above the preset button is accessed (for tracks 7-12).
Clock Display: While playing a CD, you can switch between the clock display and the CD elapsed time display (the track number always appears). While listening to the radio you can switch between the clock display and the station frequency display. When you press the Display button during power off, the unit will turn on, display the clock for 5 seconds, then shut off. This can be done with the ignition on or off.
