Revel Performa3 M105

Features

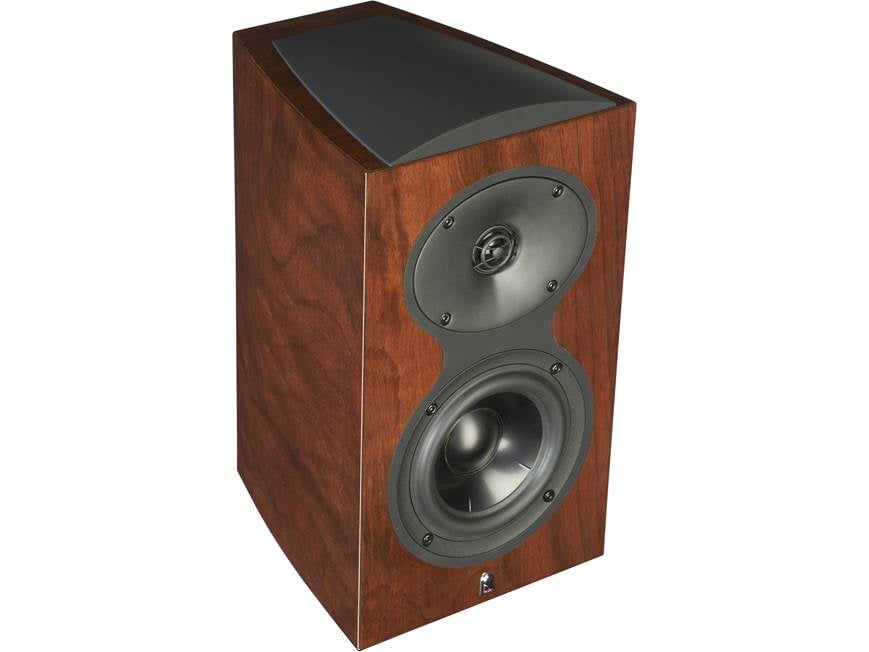

Two-Way Bookshelf Loudspeaker: The Revel by Harman Performa3 M105 bookshelf loudspeaker is full-range, two-way loudspeaker that delivers an impressive combination of wide frequency range, uncompressed dynamic range and low distortion across the entire audible spectrum.

• 1" Tweeter w/ Integrated Acoustic Lens Waveguide: The Performa3 M105 loudspeaker is equipped with a single 1" aluminum dome tweeters that feature an integrated acoustic lens waveguide. The newly designed acoustic lens waveguide accurately matches the dispersion of the tweeter and woofer in the crossover region and provide consistent sound over a wide listening area. It also generates extremely smooth, far off-axis sound, a critical factor in overall sound quality. Unlike previous waveguide designs, this new acoustic lens waveguide design actually increases dispersion at the highest frequencies, when compared to conventional tweeters. The result is a noticeably improved sense of air and detail, contributing to greater musical enjoyment.
• 5.25" Aluminum Woofer: The Revel Performa3 M105 loudspeaker features one 5.25" woofer that incorporates several performance-enhancing advances which eliminate common sources of resonance and distortion that can compromise sound quality - even at high volume levels. The 5.25" woofer features a ribbed aluminum cone that achieves ideal, piston-like behavior, cast-aluminum frames for excellent rigidity, and a motor-system distortion-reduction mechanism that stabilize the flux field during operation.

High-Order Crossover: A high-order crossover dramatically reduces distortion and dynamic compression in this Performa3 Series loudspeaker. This reduction results in cleaner sound and consistent sound quality over a wide dynamic range. These advanced crossover also optimizes timbre accuracy, enhancing the listener's musical enjoyment both on axis and throughout the room. The carefully selected crossover components help Performa3 loudspeakers achieve exceptional performance.

Elegant Enclosure: The Revel Performa3 bookshelf loudspeaker's fully-curved enclosure is inherently stiffer than conventional box shapes and are formed with contiguous wood layers that prevent splitting. The enclosure also features strategically-oriented bracing that eliminates the possibility of enclosure-induced coloration. The beautiful, modern enclosure is finished in Piano Black or High Gloss Walnut in a process (developed and overseen by Italian luxury cabinet makers) that exceeds automotive finish quality. A magnetic grille eliminates unattractive hardware on the baffle and also minimizes diffraction and veiling.

Rear-Firing Bass Port w/ Port Plug: The M105 bookshelf loudspeaker employs a sophisticated fluid-model designed low-frequency port with identical flares on both ends. This greatly minimizes dynamic compression and port-generated noise, assuring low-distortion low-frequency performance. The Revel Performa3 bookshelf loudspeaker includes a foam port plug that can be used to adjust the loudspeaker's low-frequency performance in certain installation situations.

• If the bookshelf speaker is built into an entertainment center or shelving unit, or if the speaker is located less than about 2' (0.61m) from walls or other large objects, inserting the port plug into the loudspeaker's port opening can reduce the overly-aggressive bass output that can be created by the speaker's proximity to large surfaces that reflect bass energy.
• Insert the port plug into the loudspeaker's port tube opening far enough so that the end of the plug is flush with the inside end of the port tube's flared section. Be careful not to insert the port plug so far into the port tube that it falls inside of the speaker.

Binding Post Terminals: The M105 bookshelf speaker features gold-plated binding-posts that provide secure connection for speaker cables terminated with banana plugs (single only), spade lugs, pin connectors, or bare wire (up to 10AWG). You will need to remove the binding post's rubber inserts in order to use banana plugs.

Mounting & Placement Options: Optional Performa3 M STAND pedestal stands (sold separately - see accessories tab) are available for the M105 that place the speaker at the proper height for seated listeners. There are three 1/4"-20 threaded inserts on the bottom of M105 for securing the speaker to the M Stands. The speaker does not offer any rear-panel threaded inserts, keyhole slots, or integrated bracket for wall mounting. For best stereo image and performance, follow these guidelines -

• Place the speaker so the tweeter is aligned with a seated listener's ears, approximately 36" (91cm) above the floor.
• Place the loudspeakers so that they are both the same distance from the primary listening position and so they are both the same distance from the side walls.
• Angle the loudspeakers almost directly toward the primary listening position. If you wish to widen the stereo soundstage you can reduce the toe-in angle, even to the point at which the loudspeakers are pointing straight forward.
• Moving the loudspeakers farther from the front and side listening room walls will improve stereo imaging and the sense of spaciousness in the listening space.
• Moving the loudspeakers closer to the corners or walls of the listening room will increase bass response.

Note: Placing minimal acoustic treatment materials at the room's primary reflection points will reduce sonic degradations. Ideally, acoustic absorbers should be placed at the first reflection points on the front and side walls and either acoustic absorbers or diffusers should be placed at the first reflection points on the rear wall. Check out the Accessories Tab for acoustic panels & treatments (sold separately).

Position-Independent, Double-Blind Listening Tests: Every Revel by Harman loudspeaker is compared head-to-head with competitors' models in a position-independent, double-blind listening facility. True research-quality processes assure the validity of the listening tests, which employ the latest psychoacoustic research.
