Deliver big-screen impact with video content

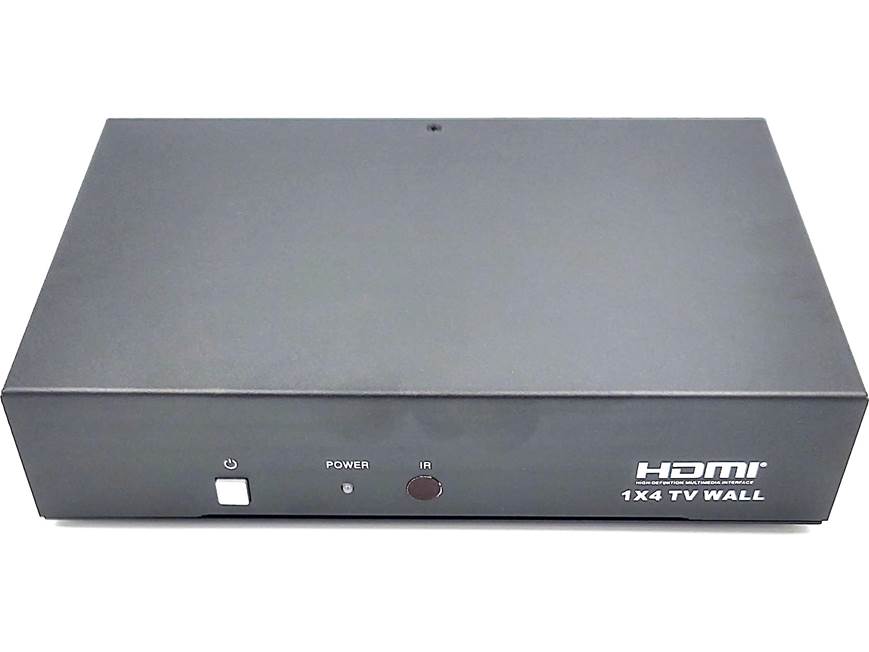

Have you ever seen one of those cool multi-screen video walls where a piece of content plays seamlessly across several displays at once? That's what a video wall processor like the Simplified MFG VW1 can do. This handy device presents a single video source across multiple monitors or TVs, in your choice of selectable landscape or portrait orientations.

KEEP READING

Deliver big-screen impact with video content

Flexible source and display options

The VW1 has inputs for a variety of source formats, including HDMI, VGA, and composite video. A USB port lets you plug in a thumb drive loaded with MPEG videos, and the VW1's built-in media player will loop your content. Four HDMI outputs feed the selected source to your choice of displays, with up to four screens showing content at the same time.

You can also "cascade" two VW1 processors together (additional unit sold separately) to create even larger, more impactful video presentations across up to nine displays.

Control it through your browser

This unit is controllable through your device's browser (requires an Ethernet connection to your network), or via RS-232 and infrared (IR) connections with optional third-party control systems.

Important note: The VW1 uses an older version of digital copy protection (HDCP 1.4) — newer commercial content sources may not play through it.

READ LESS

Product highlights:

video wall processor with built-in USB media player
seamlessly distribute content from a connected video source across up to four displays simultaneously
- supports portrait (vertical) and landscape (horizontal) presentations up to 2x2 in size
- supports "cascading" two VW1 units together for expanded grid options up to 3x3 in size
ideal for an auditorium, sports bar, retail space, or other commercial application
supports video resolutions up to 1080p

HDMI features:

compatible with HDMI sources like a Blu-ray player, cable or satellite box, security system, or computer
HDCP 1.4 and HDMI 1.3b compliant
- Important note: This system uses an older version of digital copy protection (HDCP 1.4) — newer commercial content sources may not play through this unit
1 HDMI input and 4 HDMI outputs
- an additional HDMI "loop" output allows expanded display options when paired with an additional VW1 (sold separately)
supports a broad range of audio formats, including stereo PCM, Dolby®, and DTS®

Connections and control:

1 composite video input with stereo RCA audio connections
1 VGA input with 3.5mm stereo mini audio connection
1 USB Type-A input
1 coaxial digital and one 3.5mm stereo mini output for sending signal to an optional external sound system
RJ-45 Ethernet port for connection to a local network
- browser-based setup tool for convenient settings changes
RS-232C and IR (infrared) remote connections for use with optional third-party controllers
