Overview: The Soundtube CM62-EZS-WH is a 2-way, blind-mount, in-ceiling speaker featuring a coaxially mounted 6.5" woofer and a 1" tweeter. The speaker features transformer tap settings for 25, 70, and 100 volt operation, and also includes a 16-ohm bypass. Designed specifically for indoor paging and background music, the CM62-EZS-WH is ideal for hotels, restaurants, airports, churches, and similar applications.

Drivers: The CM62-EZS-WH features a 6.5" treated fiber woofer cone with a cloth surround and with a 1" silk dome tweeter, all mounted in a sealed steel backcan enclosure. This combination delivers high efficiency and performance across the operating bandwidth with a frequency response of 135 Hz to 22 kHz (@ -3db). Able to handle up to 50 watts RMS (100 watts Program power) and with a sensitivity of 87.5 dB (1 W/ 1 M), the CM62-EZS-WH can provide clear powerful sound with a coverage angle of up to 140° @ 2kHz (105° @ 10 kHz).

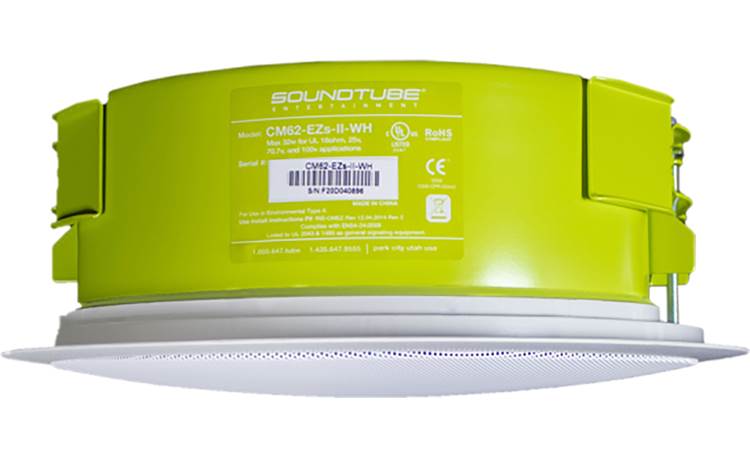

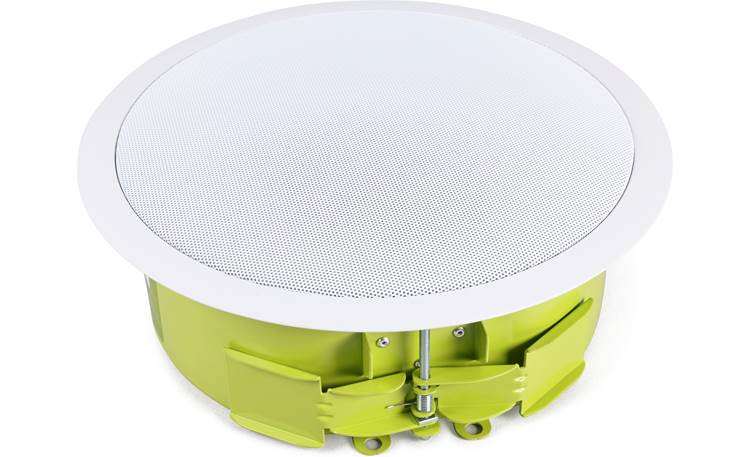

Enclosure: The CM62-EZS-WH is housed in a drawn steel backcan with an ABS plastic front baffle along with a painted steel-mesh grille. The grille can be painted to match the room color and includes an attached safety restraint lanyard.

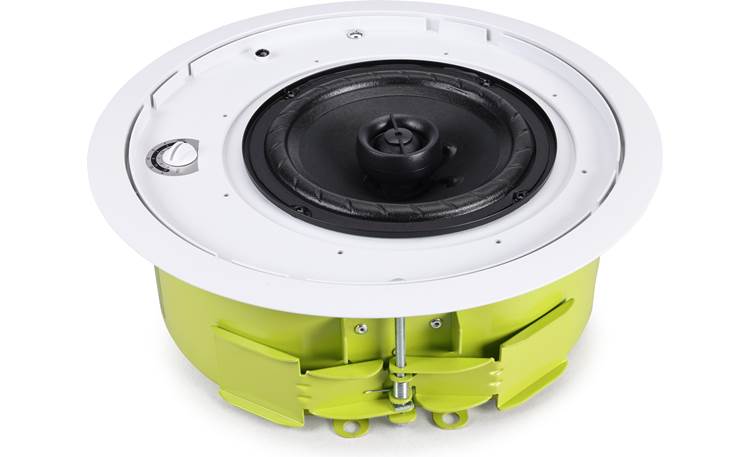

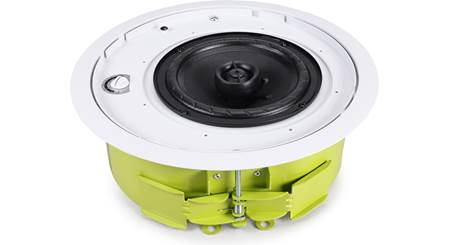

Mounting: Installation of the speaker is done blind-mount using Soundtube's proprietary SpeedWing mounting arms. Two constant-tension, winged assemblies come pre-mounted to the speaker. Once the speaker is set in the ceiling opening, two Phillips-head screws on the front of the speaker can be tightened, expanding the SpeedWing mounting arms and providing tension on the backside of the mounting surface. The CM62-EZS-WH can be mounted to ceilings ranging in thickness from 0.04 to 1.6 inches, including drop-ceilings using the optional Tile Bridge. Additional attachment points are provided on the back of the speaker for an additional safety line (not included).

25/70/100 Volt: The CM62-EZS-WH can be used in 25, 70, and 100 volt applications and includes a 16-ohm bypass selection. A tap selection dial on the front of the speaker allows for easy configuration without having to remove the speaker from the ceiling. The following tap settings are available:

• 25 Volt: 0.3 W, 0.5 W, 1 W, 2 W, 4 W
• 70 Volt: 2 W, 4 W, 8 W, 16 W, 32 W
• 100 Volt: 4 W, 8 W, 16 W, 32 W
• 16-ohm Bypass

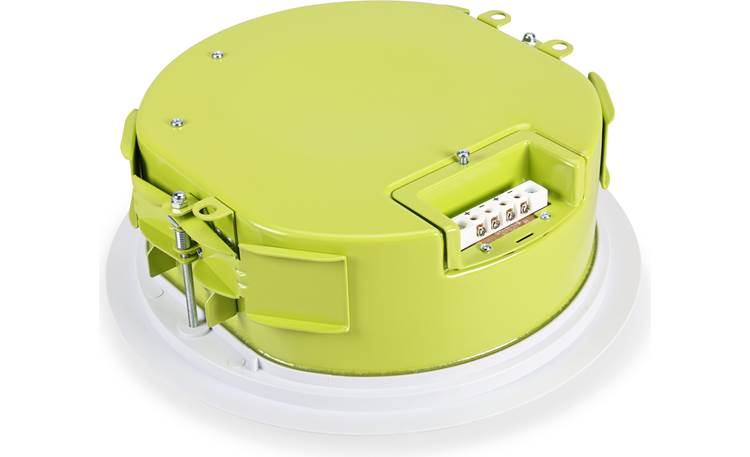

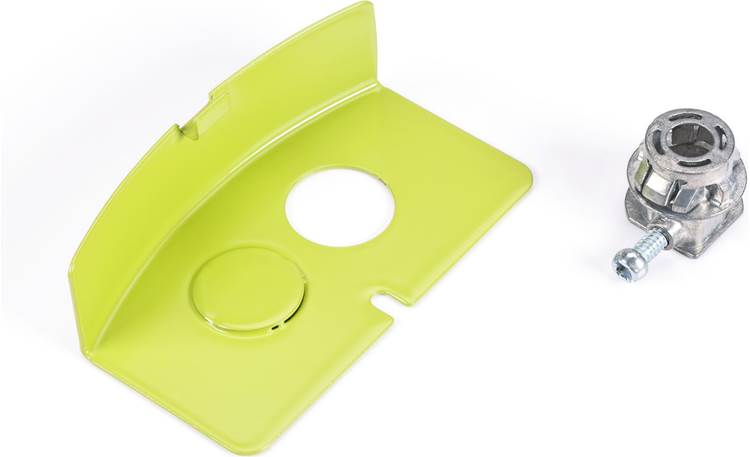

Connections: The Soundtube in-ceiling speaker features a set-screw terminal strip that can accept speaker wire up to 14-gauge. One set of +/- terminals acts as the input while a parallel set of terminals provides a pass-thru for daisy-chaining additional speakers.

Specifications:

• Speaker Type: 6.5", coaxial, in-ceiling
• Woofer: 6.5" Treated fiber cone with cloth surround
• Tweeter: 1" Silk dome
• Impedance (nominal): 16-ohms
• Sensitivity (1W @ 1M): 60.5 dB
• Frequency Response (-3 dB): 135 Hz - 22 kHz
• Maximum Program Power: 100 W
• Maximum Continuous Power: 50 W
• Coverage Angle (+/- 6 dB @ 2 kHz): 140°
• Coverage Angle (+/- 6 dB @ 10 kHz): 105°
• Crossover Frequency: 4.0 kHz
• Enclosure Material: Sealed drawn-steel backcan, ABS front baffle
• Grille: Painted steel-mesh
• Input: Set-screw terminal strip with pass-thru
• Dimensions: Diameter = 11.725", Depth (incl. grille) = 4.450"
• Mounting Depth: 3.907"
• Mounting Height: 0.67"
• Cutout Diameter: 10.50"
• Maximum Ceiling Thickness: 0.04" to 1.60"
• Weight: 7.0 lbs.
