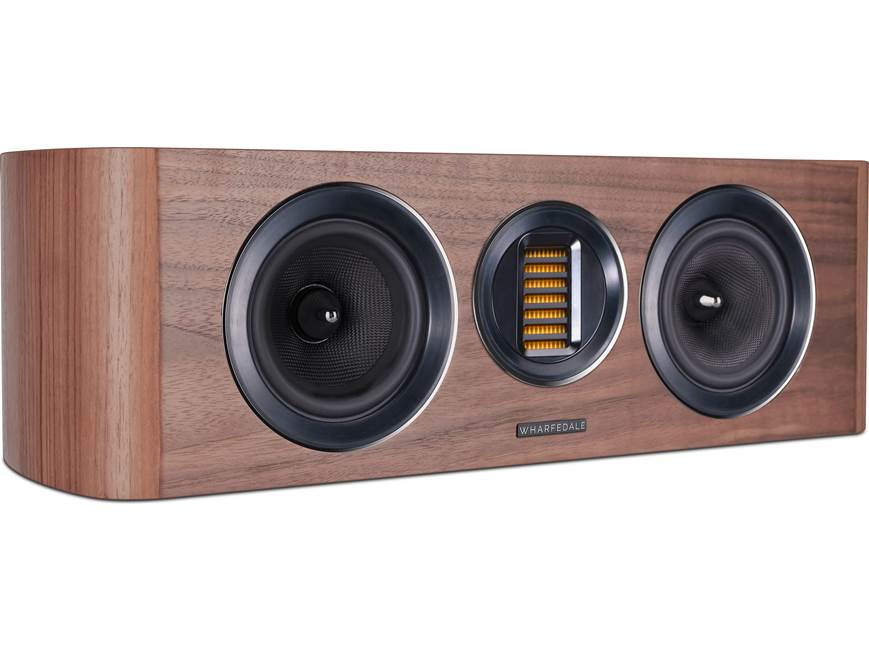

Wharfedale EVO4.CS Center channel speaker (Walnut)

Item # 336EV4CSWN

A high-quality two-way center channel speaker housed in a relatively compact cabinet.

A high-quality two-way center channel speaker housed in a relatively compact cabinet.

1 question - 1 answer

Item # 336EV4CSWN

Ships free

Temporarily out of stock
$699.00 -$34.95 Outlet savings
$664.05 each

Other options

About the Wharfedale EVO4.CS

Eric A.

A more compact EVO center channel for tighter spaces

The Wharfedale EVO4.CS brings TV dialogue, music, and sound effects front and center for an immersive, satisfying experience. And it doesn't hurt that the speaker's two-way driver design is housed in a fine-looking cabinet that brings a touch of class to your surround sound speaker setup.

A more compact EVO center channel for tighter spaces

The Wharfedale EVO4.CS brings TV dialogue, music, and sound effects front and center for an immersive, satisfying experience. And it doesn't hurt that the speaker's two-way driver design is housed in a fine-looking cabinet that brings a touch of class to your surround sound speaker setup.

This speaker is the little brother of Wharfedale's three-way EVO4.C center channel. The smaller, two-way EVO4.CS trims off just over 2-1/2" in height, making it an easier fit into some space-challenged setups.

High-performance design

Wharfedale's EVO4 lineup uses technology and design elements developed for the company's flagship Elysian line. The 4.CS features an advanced folded ribbon tweeter that produces silky-smooth high frequencies, plus two 5" woven Kevlar® woofers for solid bass and midrange. The drivers are housed in a curved bass-reflex cabinet that's carefully designed with internal bracing to damp sound-muddying vibrations.

Part of a complete home theater system

Combine the EVO4.CS with other models from Wharfedale's EVO4 Series for voice-matched sound:

Floor standing speakers: Wharfedale EVO4.4 or Wharfedale EVO4.3

Bookshelf speakers: Wharfedale EVO4.1

Surround speakers: Wharfedale EVO4.S

Got wire?

Most speakers don't include any. Read our article about choosing and installing speaker wire.
Shop our selection of speaker wire.


Product highlights:

  • Air Motion Transformer (AMT) tweeter
  • two 5" woven Kevlar cone woofers
  • frequency response: 50-22,000 Hz (±3dB)
  • recommended amplifier power: 25-100 watts
  • sensitivity: 89 dB
  • nominal impedance: 8 ohms
  • bass reflex design with rear-firing ports
  • dual sets of binding post speaker terminals with bi-amp/bi-wire capability
  • removable grille
Dimensions and warranty:
  • 23-1/16"W x 7-5/16"H x 12-1/4"D
  • weight: 25.57 lbs.
  • warranty: 5 years

What's in the box:

  • Center-channel loudspeaker
  • Grille
  • 2 Foam port plugs (pre-installed)
  • 2 Jumper-bars (pre-installed)
  • 4 Self-adhesive rubber feet
  • Pair of white cloth gloves
  • User Manual

See the difference between "Open Box" and "Scratch & Dent" Outlet items

Featured video:

Customer reviews for Wharfedale EVO4.CS

Loading reviews...

Average review:

4.0 out of 5 stars
12 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on

This review was collected as part of a promotion



Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Wharfedale EVO4.CS

Stacey B.

Features & specs

Enclosure Ported
Color Walnut
Tweeter Type AMT (Ribbon)
Tweeter Size (inches) 1.1875 x 2.375
Midrange size (inches) N/A
Woofer size (inches) 5
Connector Type Binding post
Power Range 25-100
Sensitivity 89 dB
Impedance (Ohms) 8
Frequency Response 50-22k Hz
Height (inches) 7-5/16
Width (inches) 23-1/16
Depth (inches) 12-1/4
Weight 25.57 lbs
Wall-mountable No
Bracket Included No
Parts Warranty 5 Years
Labor Warranty 5 Years

Product Research


AMT (Air Motion Transformer) Transducer: The Wharfedale EVO 4.CS center-channel loudspeaker employs a specially engineered 1.1875" x 2.375" AMT (Air Motion Transformer) transducer for its proprietary, silky smooth high frequency reproduction. By design, the AMT allows for a higher volume of air to be moved during performance than with a conventional soft dome tweeter. This higher-pressure action, encouraged by the principles of AMT design, offers an improved point-source HF reproduction with lower distortion properties than conventional tweeters. This is evident in the stunning and sheer clarity of the musical performance of the EVO 4.CS center-channel loudspeaker.

Dual Kevlar Woofers: Articulate and accurate bass is perfected by the EVO 4.CS's two bi-directional weaved Kevlar cone 5" woofers. Kevlar is a material that is naturally self-damping to reduce and distribute resonances to virtually negligible levels. In addition, a fixed, profiled phase plug ensures smooth acoustic roll off, further aiding integration with the loudspeaker's AMT high-frequency transducer and soft-dome midrange driver.

Optimized Crossover Network: The output of the tweeter and woofers is carefully combined by a thoroughly researched crossover developed using Wharfedale's Computer Aided Optimization technology. Each crossover is carefully evaluated using a wide range of music, with the emphasis being on the lifelike reproduction of voices and instruments in addition to the dynamics of the musical performance.

Purpose-Built Cabinet Design: The Wharfedale EVO 4.CS's cabinet is purpose-designed from the ground up to ensure sonic character and great looking aesthetics. The cabinet is constructed of high quality materials and composites with internal damping and bracing. The curved design of the cabinet accurately disperses sound from the drivers into your listening room and prevents standing waves inside the enclosure which can color and muddy the sound. The cabinet is available in a black, white, and walnut wood-grain finish. It comes with an acoustically transparent cloth grille that magnetically attaches to the front of the speaker cabinet.

Rear-Firing Bass Ports: Exiting the rear cabinet of the EVO 4.CS center-channel loudspeaker are two bass ports (one for each woofer) which increases the center speaker's efficiency and delivers more bass output. Two pre-installed foam port plugs seal the cabinet for more tighter, accurate bass. Remove the foam port plugs for extended bass performance.

Dual Binding Posts: The EVO 4.CS center-channel speaker has two sets of binding posts connected by jumper-plates. The binding posts will accept bare wire (up to 10AWG), pin connectors, spade connectors, & banana plugs (single only). Using these dual binding posts, you can bi-amp or bi-wire the speakers. Bi-wiring or bi-amping the speaker provides improved bass & treble performance.

  • Bi-Wiring: Bi-wiring can provide noticeable improvements in the overall transparency of your loudspeakers. Run separate speaker wires to the low & high frequency drivers from a single amplifier (the upper set of binding posts are for the high frequency drivers; the lower set of binding posts are for the low frequency drivers).
  • Bi-Amping: Bi-amping allows you to use separate amplifiers for the high & low frequency sections of your loudspeaker for greater dynamic range & lower distortion. We recommend that your separate amplifiers have identical gain to preserve the speaker's voicing balance.

Note: If you decide to bi-wire or bi-amp, you must remove the jumpers between the terminal posts (failure to do this could result in damage to your amplifier and loudspeakers).

Application: The Wharfedale EVO 4.CS is designed to be used as a center-chanel loudspeaker for your home theater speaker application, enhancing clarity of dialog in your movies.

  • Placement Options: The center channel loudspeaker should be positioned centrally between your front loudspeakers, close to the television and mounted above or below the center of the screen. If you mount the the center speaker above the television, move it forward so that the front grille sits slightly in front of the screen and the top of the cabinet.
  • Mounting Options: The center-channel speaker can simply be mounted on on a shelf, piece of AV furniture, other rigid flat surface. Four rubber feet are pre-installed to isolate the speaker cabinet from the mounting surface and to protect the surface of your furniture. Self-adhesive rubber feet are included to help secure the speaker to the mounting surface, isolate the speaker from your mounting surface, and protect the mounting surface from scratches. The rubber feet add approximately 0.375" to the overall height of the speaker.

Note: The Wharfedale EVO 4.CS does not include any type of bracket, keyhole slot, or threaded insert to wall mount the speaker.

EVO4 Series: Following the concept of the best-selling EVO series from Wharfedale that came before it, the EVO4 fuses the EVO concept of great sound and beautiful aesthetics with trickle down technology from the new flagship Wharfedale ELYSIAN series. From the cabinet design to the materials employed in its distinct driver design, the EVO4 sounds and looks amazing. The EVO4 Series consists of two floorstanding loudspeakers (EVO 4.4 / EVO 4.3), two bookshelf loudspeakers (EVO 4.2 / EVO 4.1), two center-channel loudspeaker (EVO 4.C / EVO 4.CS), and one surround loudspeaker (EVO 4.S).

Loading accessories...

Customer Q&A

1 question already asked

Is the white finish gloss?
chris  Mar 27, 2021
1 answer
I didn't get the white finish so I can't answer your question. The black finish, which I purchased, is not glossy.
william  Mar 27, 2021
