Ethereal CS-44MQ 4K-compatible HDMI matrix (4 in/4 out) with audio breakout and EDID management

Item # 340CS44MQ

This high-performance matrix switch can send audio and 4K video from up to four sources to as many as four displays.

This high-performance matrix switch can send audio and 4K video from up to four sources to as many as four displays.

California customers:
Please click here for your Proposition 65 warning.

Item # 340CS44MQ

Low stock
$999.00

Other options

About the Ethereal CS-44MQ

Steve Kindig

Send multiple 4K video sources to multiple 4K displays

This high-performance matrix switch can send audio and 4K video from up to four sources to as many as four TVs or monitors at the same time. You can quickly and easily assign any of the HDMI inputs to any HDMI output using the front-panel selector buttons, the provided IR remote control, or by using the built-in web GUI (Graphical User Interface) from a LAN-connected computer.

Send multiple 4K video sources to multiple 4K displays

This high-performance matrix switch can send audio and 4K video from up to four sources to as many as four TVs or monitors at the same time. You can quickly and easily assign any of the HDMI inputs to any HDMI output using the front-panel selector buttons, the provided IR remote control, or by using the built-in web GUI (Graphical User Interface) from a LAN-connected computer.

Flexible compatibility and control

Each input and output supports up to 4K/60 4:4:4 resolution and HDCP 2.2 copy protection. The outputs can also be individually scaled to 1080p for HD displays. De-embedded audio is available via analog mini stereo and coaxial digital connections for all four outputs. Advanced EDID management lets you ensure that your sources and displays will be on the same page.

READ LESS

Product highlights:

  • distributes audio and video from 4 HDMI 2.0 sources to 4 HDMI 2.0 displays
  • passes 4K UHD (Ultra High Definition) content at up to 60 frames per second
HDMI features:
  • HDMI 2.0 and HDCP 2.2/1.4 compliant
    • four 18Gbps HDMI 2.0 inputs support up to 4K/60 4:4:4 video resolution
    • four 18Gbps HDMI 2.0 outputs support up to 4K/60 4:4:4 video resolution
    • all four outputs can be individually scaled for 4K to 1080p
  • supports HDR-encoded content (HDR10, HDR10+, Dolby Vision®, HLG)
  • support for smart EDID ("HDMI handshake") management
  • supports a broad range of audio formats: PCM 2.0/5.1/7.1-ch., Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Control and connections:
  • four methods of control: front panel, supplied IR remote, RS-232, and TCP/IP
  • RS-232C and IR (infrared) remote connections for use with optional third-party controllers
  • RJ-45 port for TCP/IP control or accessing the built-in web GUI
  • includes IR (infrared) remote control
  • audio breakouts for sending signal to an external sound system
    • four coaxial digital outputs (supports PCM 2.0, Dolby Digital/Plus, DTS 2.0/5.1)
    • four 3.5mm stereo mini analog outputs (supports PCM 2.0)
    • ARC function can return display device audio to the coaxial output only
  • LED indicators for power and status
Warranty and dimensions:
  • 8-11/16"W x 1-3/4"H x 4-3/16"D
  • weight: 1.75 lbs.
  • warranty: 12 years
  • MFR # CS-44MQ

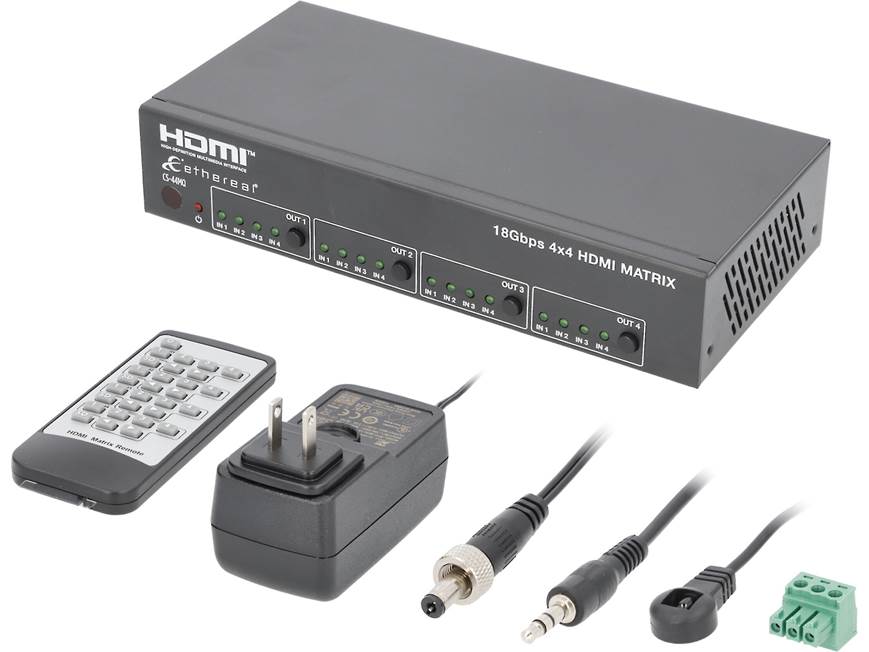

What's in the box:

  • HDMI matrix switch
  • AC power adapter (attached 5' DC cord)
  • 2-Prong AC adapter plug
  • Remote control (CR2025 battery installed)
  • 5' IR extender
  • 3-Pin eurblock connector
  • 2 Brackets
  • 8 Screws
  • User Manual

Customer reviews for Ethereal CS-44MQ

We don't have any reviews, yet.
Submit a review and then enter to win a $350 gift card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Ethereal CS-44MQ

Research Team

Product Research

Features

HDMI Matrix Switch: The Ethereal CS-44MQ HDMI Matrix Switch can switch any of its HDMI 2.0 input sources to any of its four HDMI 2.0 output displays. The four HDMI inputs can be quickly and easily assigned to any of the four HDMI outputs using the front-panel selector buttons, the provided IR remote control, or using the built-in Web GUI (Graphical User Interface) from a LAN connected computer. It supports transmission of video resolutions up to 4K@60Hz Ultra HD (4:4:4), and high resolution audio formats such as Dolby TrueHD and DTS-HD.

HDMI 2.0 (18Gbps): The Ethereal CS-44MQ is outfitted with four HDMI inputs and four HDMI outputs that meet HDMI 2.0 specifications with support for 18Gbps video bandwidth, 4K/60Hz video resolution, HDR (High Dynamic Range), HDCP 2.2, and multichannel high-resolution audio.

  • 4K/60Hz Resolution: The HDMI Matrix Switch supports video formats up to 4K @ 50/60Hz (YUV4:4:4). It also supports 1080i/p, 720p, and 480i/p video.
  • HDR (High Dynamic Range): The CS-44MQ offers support for HDR (High Dynamic Range) including all the popular HDR formats such as HDR10, HDR10+, Dolby Vision, & HLG.
  • HDCP 2.2: HDCP 2.2 is short for "High bandwidth Digital Content Protection" and is used for 4K video copyright protection for compatibility with Ultra HD Blu-ray players and 4K Satellite/Cable providers. It's also backward compatible with HDCP 1.4.

Notes:

  • For a 4K/60 video signal use a premium high-speed HDMI cable that is 10' or less.
  • For a 4K/30 video signal use a premium high-speed HDMI cable that is 30' or less.
  • For a 1080p/60 video signal use a premium high-speed HDMI cable that is 42' or less.

EDID Management With Down-Scaling: The HDMI Matrix Switch manages EDID (Extended Display Identification Data) communications from the source to the display, ensuring the best video resolution and audio format is automatically provided. Selectable EDID presets and user EDID options are available using the Web GUI interface, letting you override the EDID information and select a specific video and audio format for each HDMI output. Output scaling options include -

  • Bypass: No scaling is applied.
  • 4K-to-1080p: Downscales signal to 1080p.
  • Auto: Scale will match the connected display requirements.

Audio Pass-Thru & De-Embedding: The CS-44MQ's four HDMI inputs and outputs offer support for PCM (2.0/5.1/7.1ch) Dolby Digital, Dolby Digital Plus, Dolby Digital EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High-Res, and DTS-HD Master Audio. Each of the four HDMI outputs also includes its own coax SPDIF digital output and stereo minijack analog output for extracting the audio from the HDMI Output signal.

  • ARC (Audio Return Channel): The CS-44MQ's four HDM outputs support ARC (Audio Return Channel). The ARC function can return display device audio to coaxial port output only. When activated in the Web GUI, ARC audio is passed out the Coax digital port for that Output. When ARC is activated, the 3.5mm analog output is disabled.
  • Coaxial SPDIF Outputs: The four coax SPDIF digital outputs support PCM 2.0, Dolby Digital, Dolby Digital Plus, and DTS audio.
  • Analog Stereo Minijack Outputs: The four stereo minijack (3.5mm) outputs support a 2ch stereo analog audio signal.

Control Options: The Ethereal CS-44MQ can be controlled from its front-panel or the included IR remote. Front-panel controls include a source selection button for each output. A power LED, Source LEDs and IR receiver are also found on the front-panel. The supplied IR remote offers wireless operation of the HDMI Matrix Switch including power on/off, as well as source selection for each output. Make sure to point the remote at the IR window on the front-panel of the HDMI Matrix Switch.

  • IR Extender: The CS-44MQ features an IR input (3.5mm) and comes with an IR extender to extend the reach of the unit's IR command signals in case the HDMI Matrix Switch is located inside a cabinet or out of direct line of sight of front-panel IR receiver.
  • IP Control with Web GUI: The HDMI Matrix Switch also contains a RJ-45 LAN jack for IP control via an innovative web GUI (graphic user interface) that can be operated from your PC - allowing you to set scaling, EDID settings, and more.
  • RS-232 Port: In addition, the HDMI Matrix Switch features a 3-pin euroblock connector with support for RS-232 protocol standard, allowing control from a 3rd-party custom integration system (sold separately).

Mounting Options: The CS-44MQ HDMI Matrix Switch can simply tabletop mounted on the shelf of a piece of AV furniture or other flat mounting surface. Brackets are included to secure the HDMI Matrix Switch to your mounting surface.

  • Dimensions without Brackets: 8.6875" (w) x 1.75" (h) x 5.8125" (d)
  • Dimensions with Brackets: 9.875" (w) x 1.75" (h) x 5.8125" (d)

Power Requirements: The Ethereal CS-44MQ comes with an AC power adapter that will need to be plugged into the back of the HDMI Matrix Switch and into an AC power outlet or surge protector/line-conditioner (sold separately).
