About the Scanstrut ROKK Charging USB socket

Product highlights:
- rapid-charge waterproof USB charger
- dual-socket connectivity
- charges up to three times faster than standard USB ports
- designed for marine and outdoor use
- "click and lock" anti-snag cover
- IPX6 waterproof design
- moisture- and UV-resistant
- corrosion-resistant circuit boards
- 316 stainless-steel hinge and springs
- works with any USB Type-A connector
- output current: 4.2 amps (total)

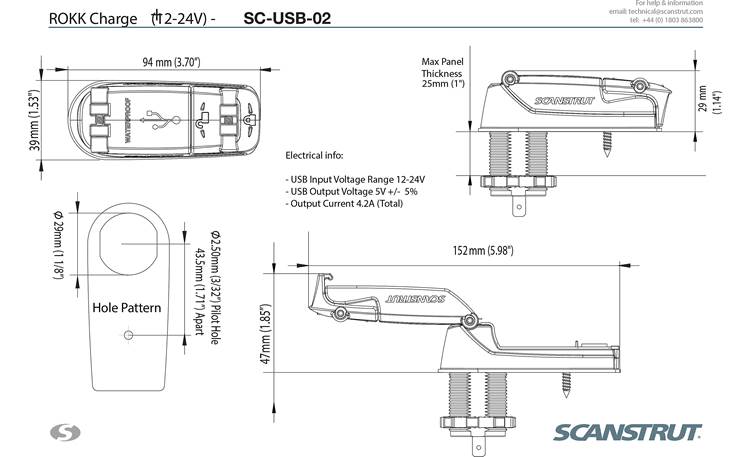

- dimensions: 1.53" (39mm) H x 3.7" (94mm) L
- warranty: 2 years
- MFR # SC-USB-02
- Item # 356SCUSB02

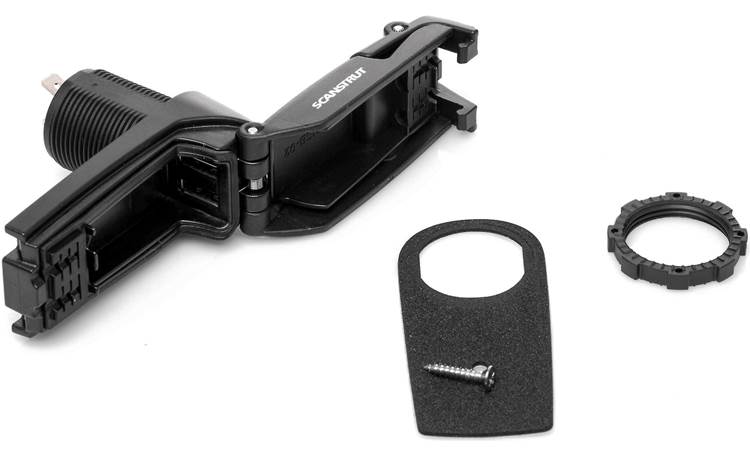

What's in the box:
Scanstrut ROKK Charging USB socket owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Weatherproof 12/24V USB charger
- Locking collar
- Gasket w/3M adhesive backing
- One 3/4" screw
More details on the Scanstrut ROKK Charging USB socket

Product Research
Features
Overview: The Scanstrut ROKK SC-USB-02 is a dual-socket, waterproof USB charger, with up to 3 times faster charging than with standard USB chargers. Designed for the marine environment, the SC-USB-02 can be mounted to a console or cabin wall, and can be powered from either 12V or 24V systems. A spring-loaded cover protects the USB sockets from the elements, and can even be closed with USB cables plugged in. Rubber seals in the base of the charger provide a tight seal around the USB cables (not included) when installed.
Note: Drilling a 1.14" (approx. 1-1/8") diameter hole in the mounting surface will be required for installation.
USB Charging x2: The SC-USB-02 features two USB type-A sockets, letting you charge 2 devices at the same time, up to 3 times faster charging than standard USB sockets. The waterproof charger can provide a total of 4.2A of output current for the two sockets (combined), and can be installed in either 12V or 24V electrical systems.

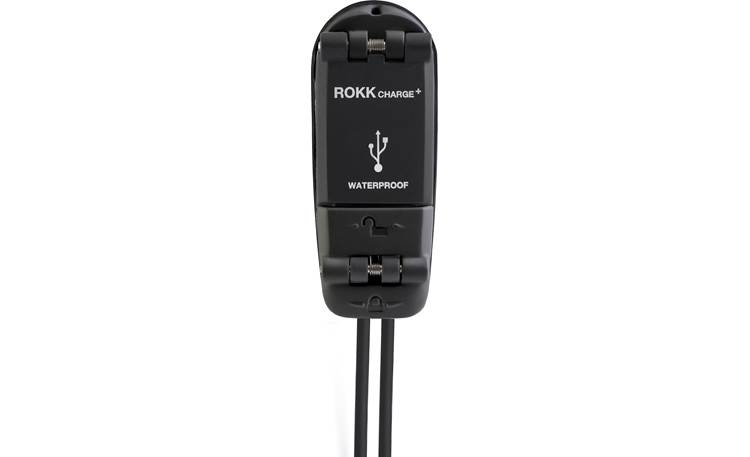

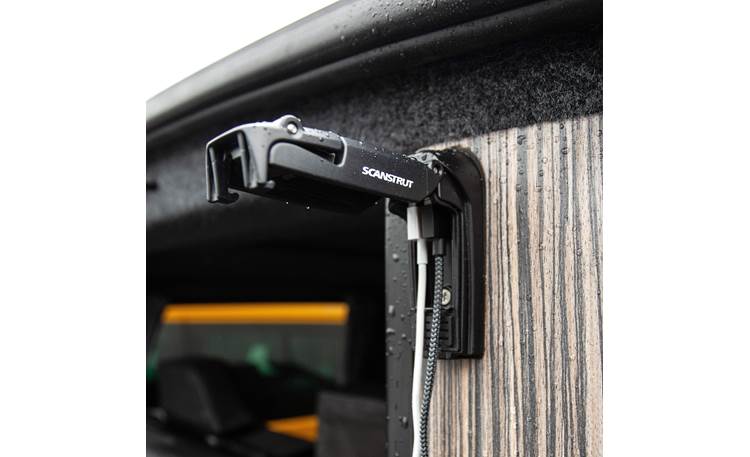

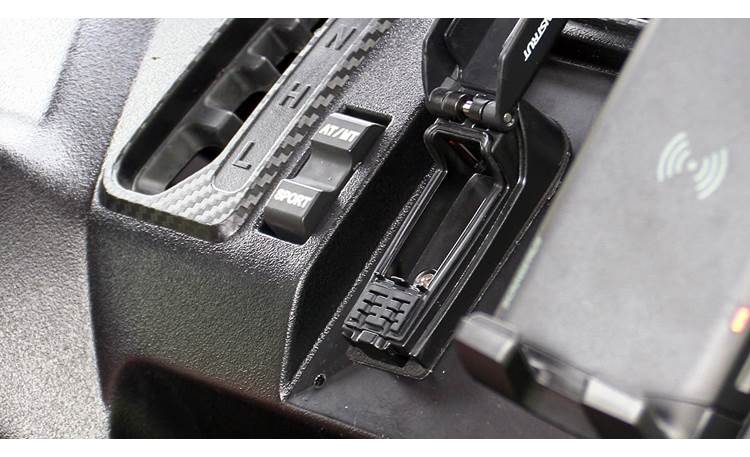

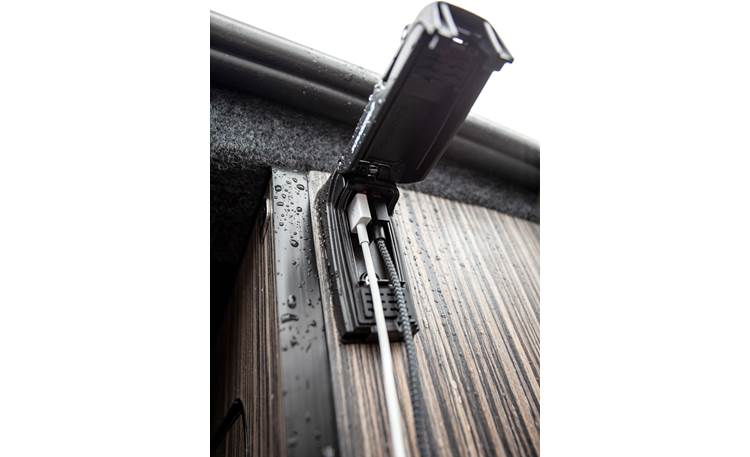

Waterproof Design: The ROKK USB dual USB charger features a spring-loaded "Click & Lock" lid that provides a watertight seal when closed, with or without USB cables installed. This not only keeps the connections free from water ingress, but also provides protection from the USB cables inadvertently getting unplugged. Rubber seals around the spring-loaded lid and the USB cable ports give the SC-USB-02 an IPX6 weatherproof rating when closed.

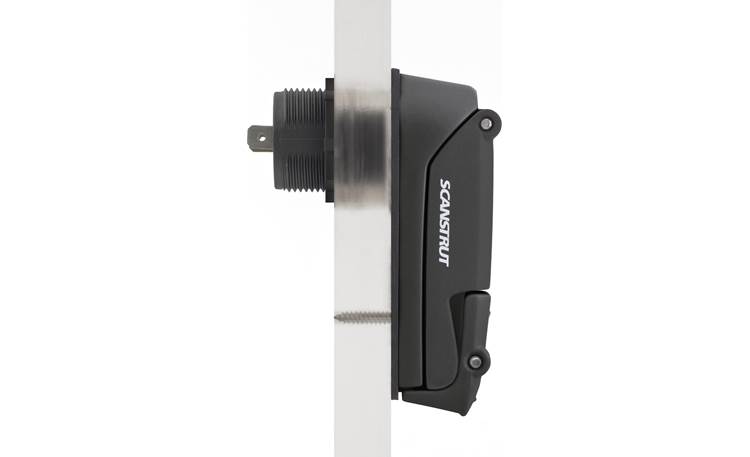

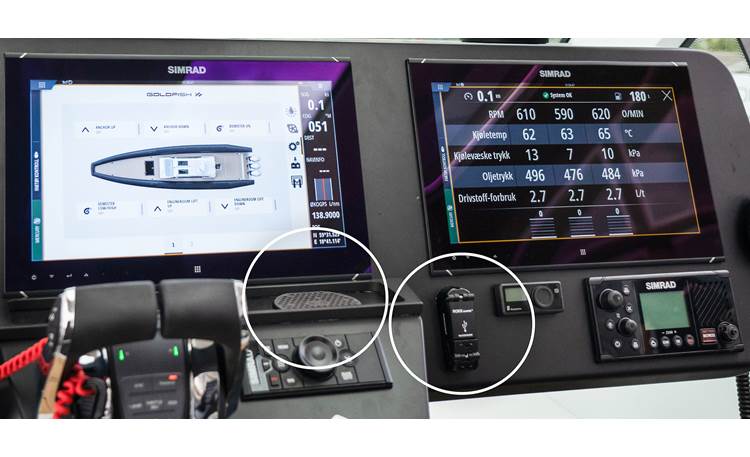

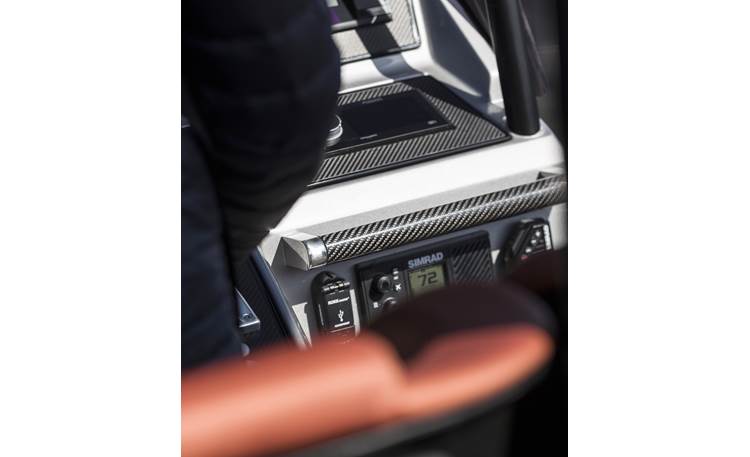

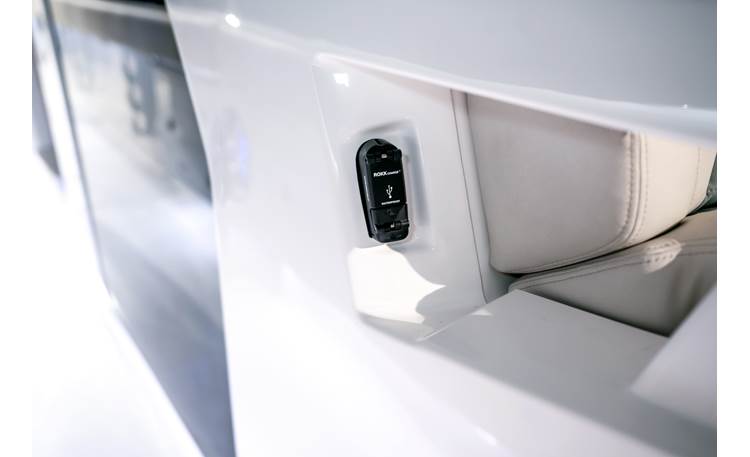

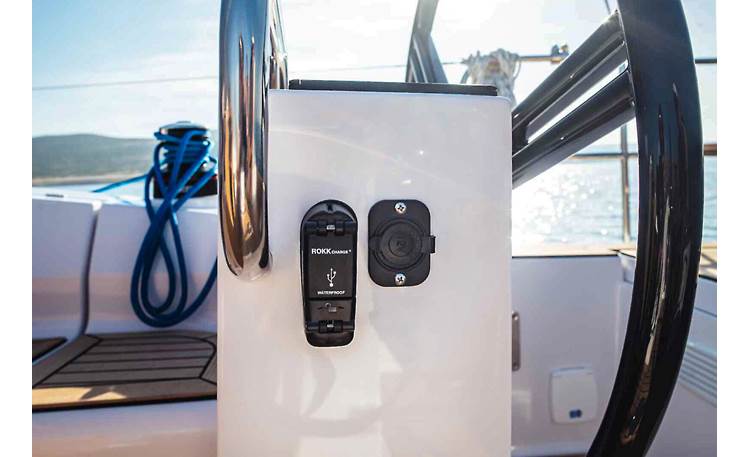

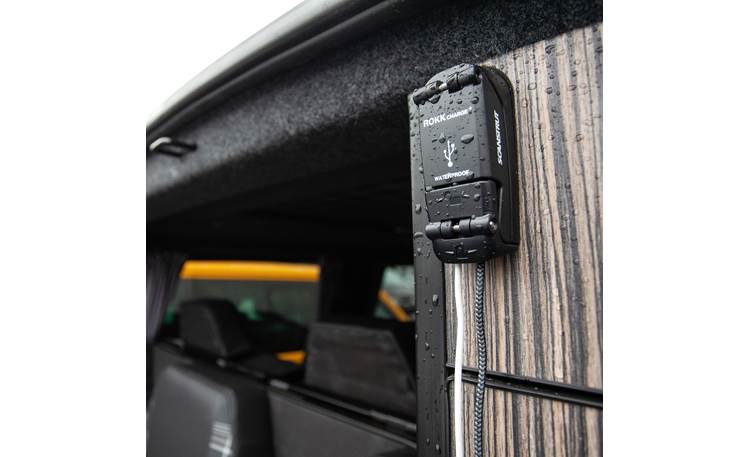

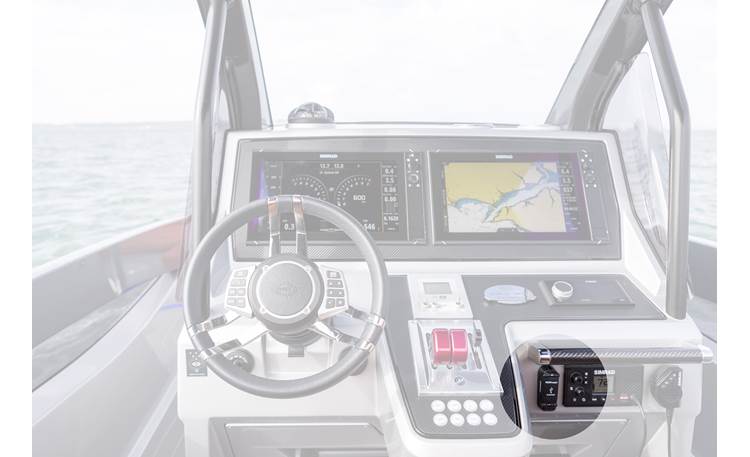

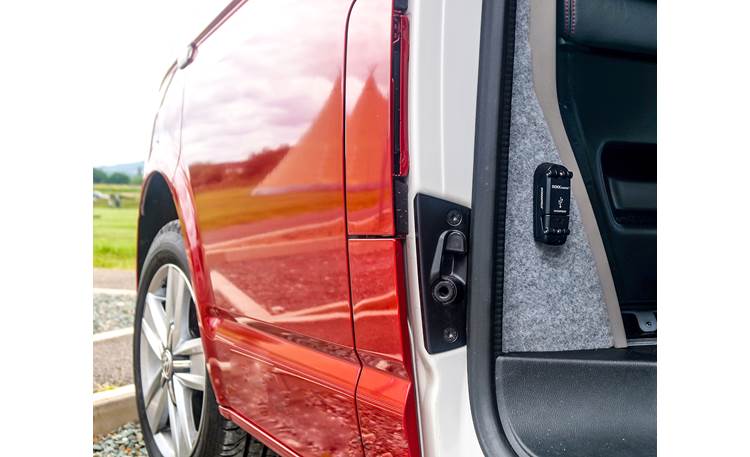

Mounting: Designed to be mounted to a cabin wall or console, the body of the SC-USB-02 forms a threaded right-angle that allows it to be mounted flush to the mounting surface. Mounting requires a 1.14" (approx. 1-1/8") diameter hole to be drilled, and surfaces up to 1" thick can be used. A threaded mounting-collar allows the assembly to be tightened together, and a 3M adhesive gasket is included to seal the mounting area.
Power: The rear of the USB charger features two 0.25" male slip-on terminals for attaching power and ground wire (sold separately), for connection to the craft's electrical system. Both 12V and 24V systems are compatible.
Specifications:
- Input Voltage Range: 12V-24V
- USB Output Voltage: 5V (± 5%)
- Maximum Output Current: 4.2A (Total)
