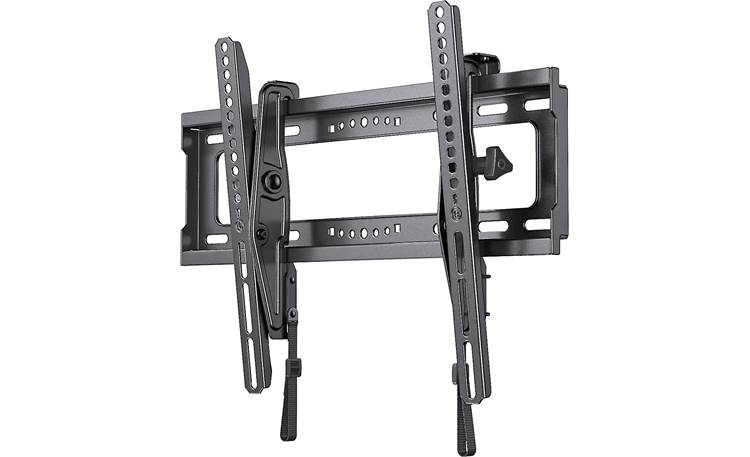

About the ErgoAV ERMTM2-01B

Product highlights:
- fits most flat-panel TVs from 32"-50"
- supports up to 99 lbs.
- fits VESA mounting hole patterns 75 x 75mm to 400 x 300mm
- tilt range: 5° up to 15° down
- quick release latch
- dual-stud installation required
- accommodates 16" on-center installation
- mounting hardware included
- safety tested and UL Certified
- dimensions (measured by Crutchfield): 18-5/16"W x 12-13/16"H x 2-5/8"D
- weight: 3.44 lbs.
- warranty: 5 years
- MFR # ERMTM2-01B
- Item # 389ERMTM2B
What's in the box:
ErgoAV ERMTM2-01B owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Wall-plate bracket
- 2 TV brackets
- Four M4x12mm bolts
- Four M4x30mm bolts
- Four M6x15mm bolts
- Four M6x35mm bolts
- Four M8x15mm bolts
- Four M8x35mm bolts
- Eight 2.5mm spacers
- Four 10mm spacers
- Four 22MM spacers
- Four M4/M5 washers
- Four M6/M8 washers
- Four 5/16" x 2-3/4" Lag-screws
- 4 Concrete-anchors
- Allen-key
- Installation Manual
- Mounting Template
More details on the ErgoAV ERMTM2-01B

Features & specs
Features | ||
---|---|---|
Mount Type | Wall Mount | |
Motion | ||
Tilt | Yes | |
Swivel | No | |
Extend/Retract | No | |
Fixed | No | |
Roll (Level) Adjustment | No | |
Mounting Details | ||
Wood Stud (Single) | No | |
Wood Stud (Dual, 16-inch) | Yes | |
Wood Stud (Dual, 24-inch) | No | |
Concrete Block-compatible | Yes | |
Recessed Housing | No | |
Outdoor-rated | No | |
Motorized | No |
Product Research
Features

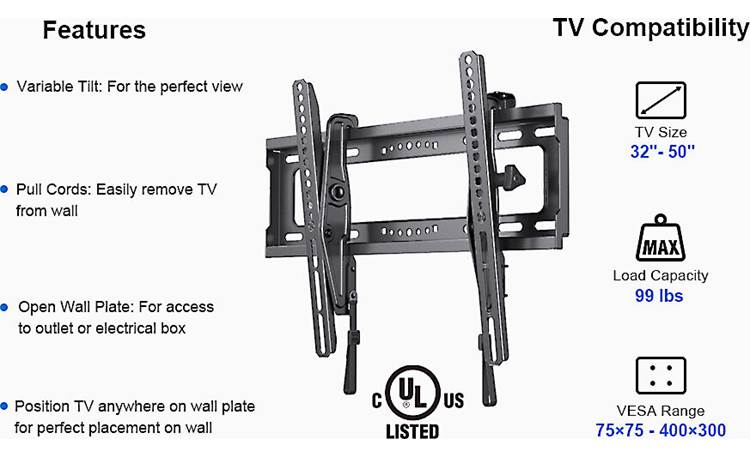

TV Compatibility: The ErgoAV ERMTM2-01B fits most 32" to 50" flat-panel TVs that weigh up to 99 lbs. The TV must also meet the following VESA and screw size requirements.
- VESA Sizes: 75x75 to 400x300
- Screw Size: M4, M6, or M8
Note: Additional hardware may be required for your specific model of TV. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.
Tilt Mechanism: The ERMTM2-01B's tilting functionality helps with reducing reflections and enhances your viewing experience. You can easily tilt your TV down (up to 15°) or up (up to 5°) to reduce glare and improve line-of-sight with the TV screen.
Horizontal Shift: The horizontal shift feature allows your mounted TV to be moved horizontally on the wall-plate bracket to allow optimal placement on your wall.

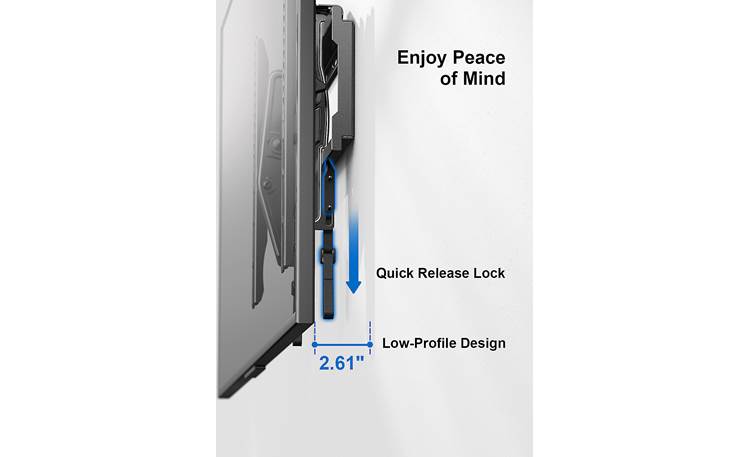

Quick Release: A unique latching mechanism allows your TV to be attached securely and removed from ERMSTM2-01B's wall-plate bracket quickly and easily.

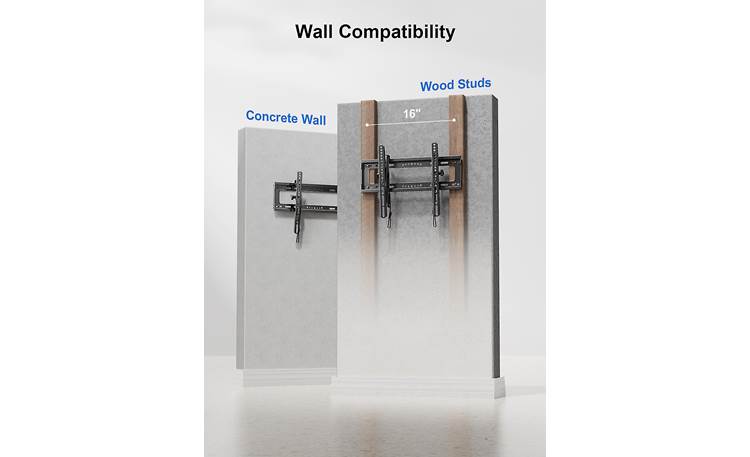

Single Stud Installation: The ErgoAV ERMTM2-01B accommodates dual-stud 16" OC (on-center) installation, as well as concrete block installation using the included hardware. Tools required for installation include -
- Electric drill
- 7/32" bit (wood), 3/8" bit (masonry)
- 1/2" Socket-wrench
- Stud-finder
- Awl
- Tape-measure
- Phillips-screwdriver
- Level
- Pencil
- Hammer
UL Certified: This product has been safety tested and UL Certified.
