About the ErgoAV ERTSX1-01B

Product highlights:
- fits most flat-panel TVs 37"-77"
- supports up to 110 lbs.
- fits VESA mounting hole patterns 100 x 100mm to 800 x 400mm
- adjustable height in four increments
- safety straps included
- safety tested and UL Certified
- dimensions (measured by Crutchfield) each leg: 1"W x 32-5/16"H x 14-1/4"D
- warranty: 3 years
- MFR # ERTSX1-01B
- Item # 389ERTSX1B
What's in the box:
ErgoAV ERTSX1-01B owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Upper TV bracket
- Lower TV bracket
- 2 Support pillars
- 2 Feet
- Four M5x12mm bolts
- Four M6x15mm bolts
- Four M6x35mm bolts
- Four M8x15mm bolts
- Four M8x25mm bolts
- Four M8x35mm bolts
- Four M8x50mm bolts
- Two M5 washers
- Four M6/M8 washers
- Eight 2.5mm spacers
- Four 10mm spacers
- Four 22mm spacers
- Two M5x60mm scrws
- Four M5x25mm screws
- 2 Concrete anchors
- 2 Safety-straps
- Allen-key
- Instruction Manual
More details on the ErgoAV ERTSX1-01B

Product Research
Features

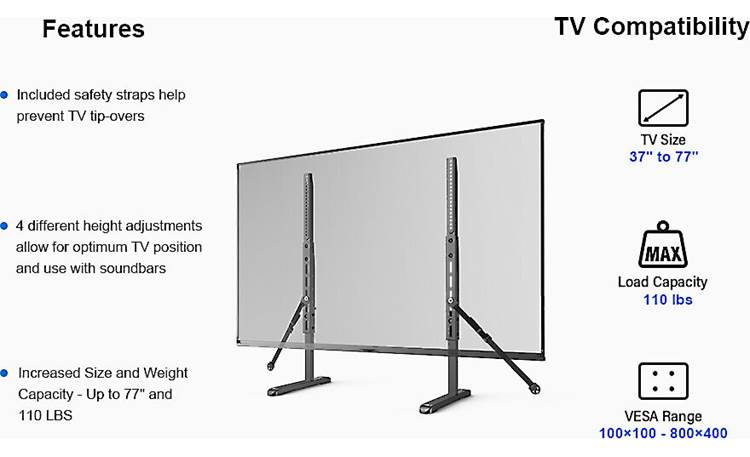

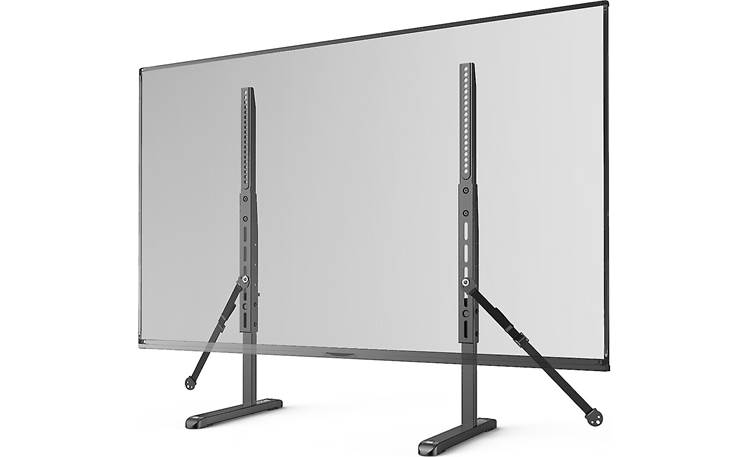

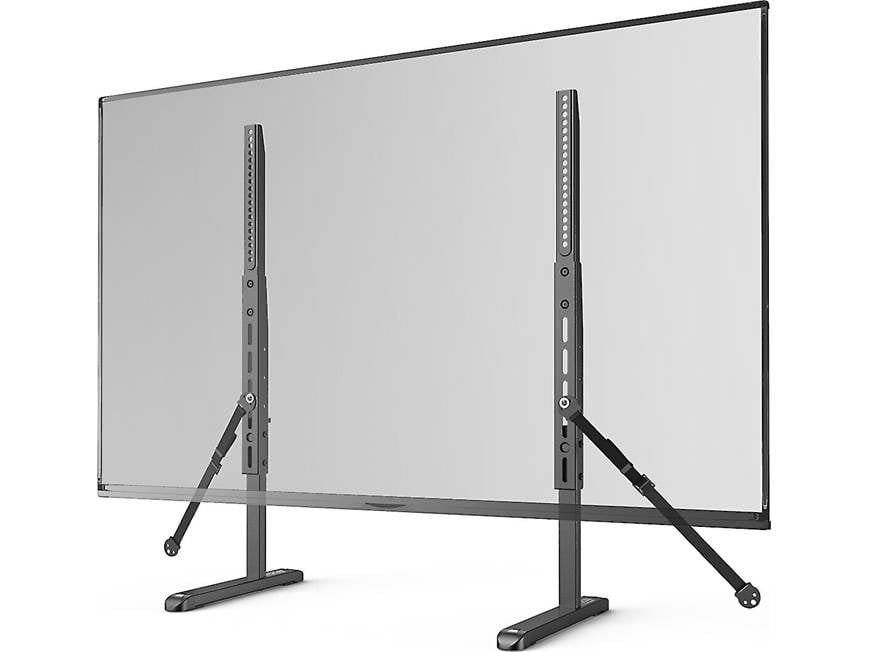

Tabletop TV Legs: Instead of a traditional pedestal-style table stand with base, the ErgoAV ERTSX1-01B uses a universal pedestal leg design with two tabletop feet that can be used to position your TV on a piece of furniture, table, desk, countertop, AV stand, etc.

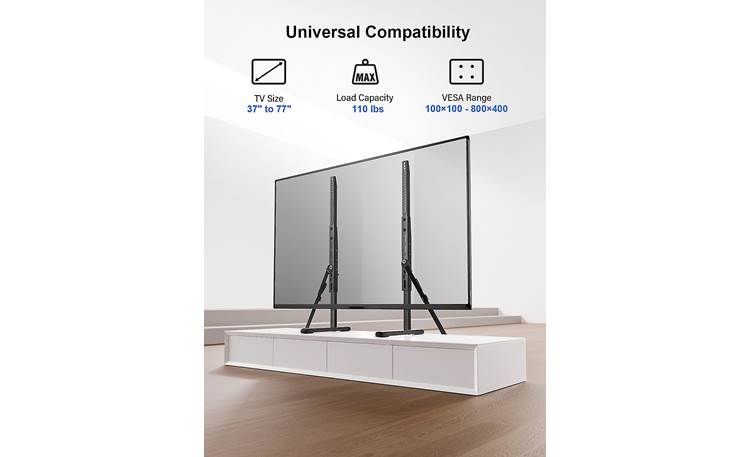

TV Compatibility: The ErgoAV ERTSX1-01B -01B universal TV legs accommodate most 37" to 77" flat-panel TVs that weigh up to 110 lbs. The TV must also meet the following VESA and screw size requirements.
- VESA Sizes: 100x100 to 800x400
- Screw Size: M6 or M8
Note: Additional hardware may be required for your specific model of TV. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.

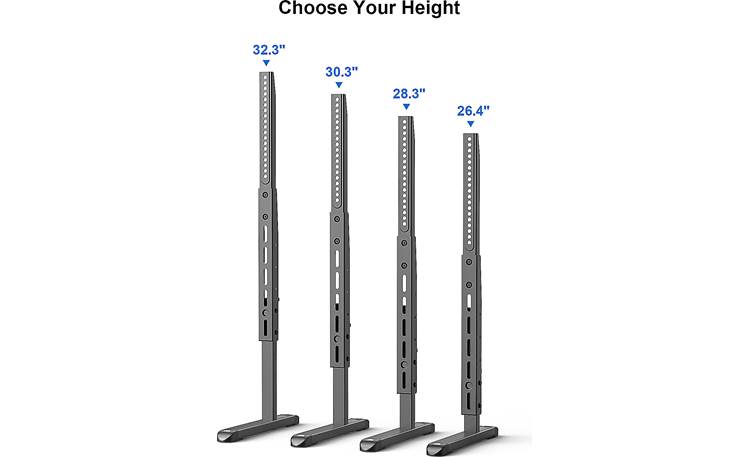

Height Adjustments: The ErgoAV universal TV legs offer a total of 4 height adjustment options to satisfy different applications and TV sizes. The overall height of the tabletop TV stand can be set to 32.3125", 30.3125", 28.3125", or 26.375".

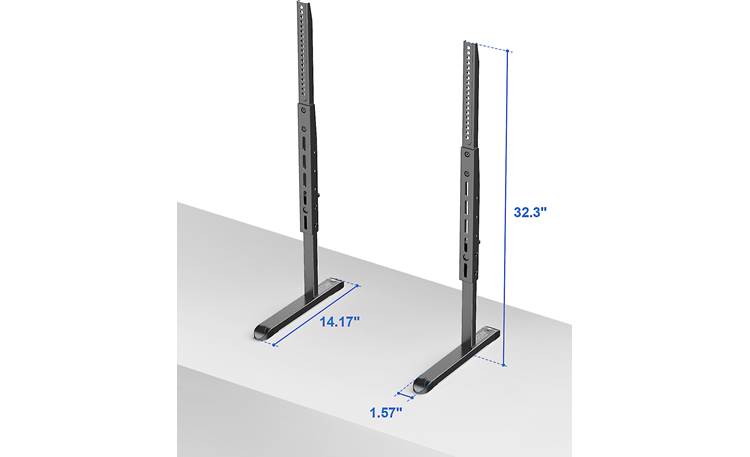

Footprint: The footprint of the ERTSX1-01B universal TV legs will vary based on the VESA mounting pattern on back of your TV. The larger your TV's VESA mount pattern (100mm-800mm), the wider the footprint will be (which could range from 4.0" to 31.5"). However, the footprint depth will always remain 14.25".

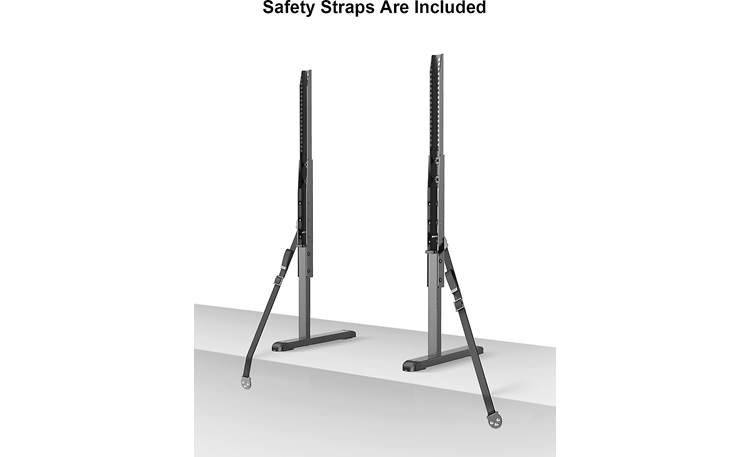

Safety Straps: Safety-straps and hardware are included to secure the universal TV legs to the wall or your piece of furniture.
Loading...
Loading accessories...
Customer Q&A
Loading...
Loading articles...
Easy to assemble, looks inconspicuous, does its job!
Mark from Indian Springs, AL
