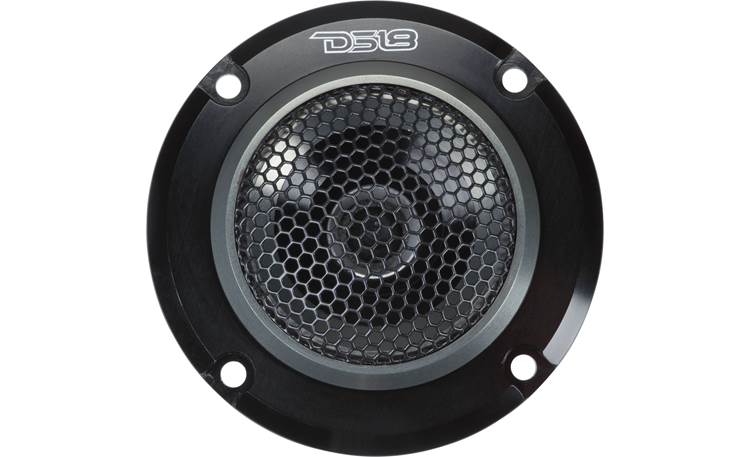

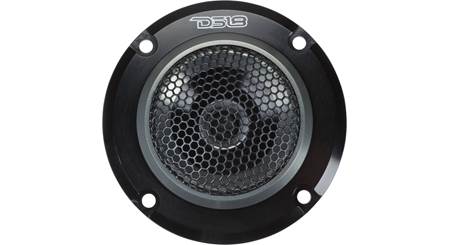

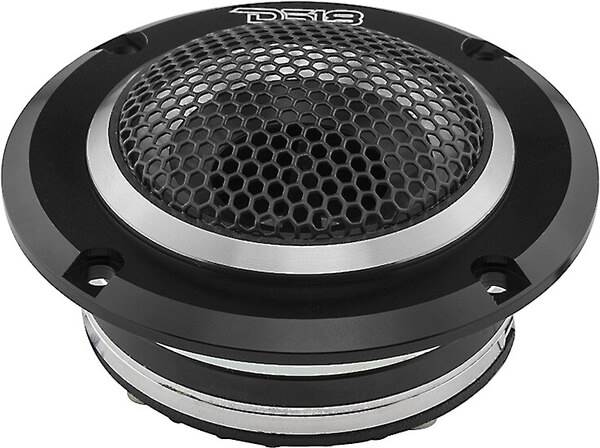

About the DS18 PRO-TWN5

Product highlights:
- single 3.6" compression tweeter
- flush-mount housing
- repairable diaphragm
- aluminum basket
- includes bass blocker that protects the tweeter
- includes high-pass filter (capacitor)
Specs:
- mounting depth: 1-5/16"
- cutout diameter: 2-3/16"
- impedance: 4 ohms
- sensitivity: 107 dB
- power handling: 200 watts RMS (400 watts peak)
- frequency response: 1,500-20,000 Hz
- grilles included
- warranty: 2 years
- MFR # PRO-TWN5
- Item # 408PRTWN5
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
- One PRO-TWN5 Tweeter
- Four 5/8" Flat-head screws
- 5.6 microfarad capacitor (in-line crossover/soldered to the positive terminal)
- Owner's manual
More details on the DS18 PRO-TWN5

Features & specs
General | ||
---|---|---|
Speaker Size | 3.6 | |
Driver Design | 1-way | |
Woofer Design | --- | |
Woofer Material | --- | |
Woofer Surround | --- | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | 3.6" Compression | |
Tweeter Material | Polyethylene naphthalate | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black steel mesh | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | 107 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 1500 - 20k Hz | |
Maximum RMS Wattage | 200 | |
Peak Power Handling (Watts) | 400 | |
Top-mount Depth (Inches) | 1 5/16 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 2 13/16 | |
Mounting Height (Inches) | 0.875 | |
Frame Width | 3.67 | |
Frame Length | 3.67 |
Product Research
Features

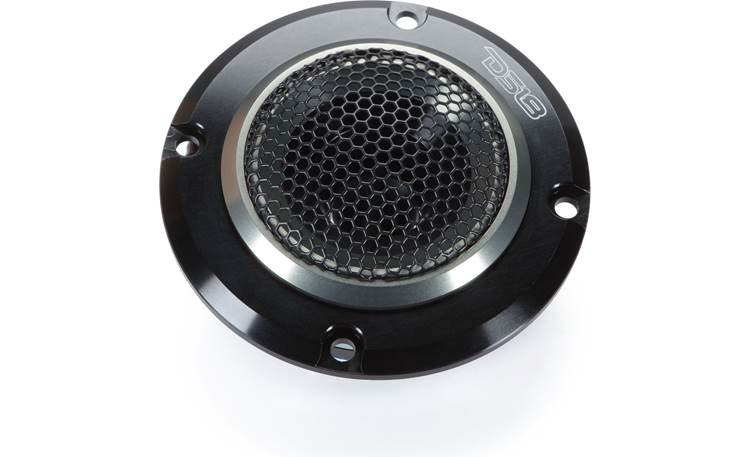

Mounting: The tweeter is designed to be flush mounted with four screws through the flange, like typical car speakers.
Measurements:
- Cutout Diameter: 2.775"
- Mounting Depth: 1.3"
- Mounting Height: 0.875"
- Frame Diameter: 3.67"
Terminals: Both the positive and negative terminal spades are 0.205" wide.

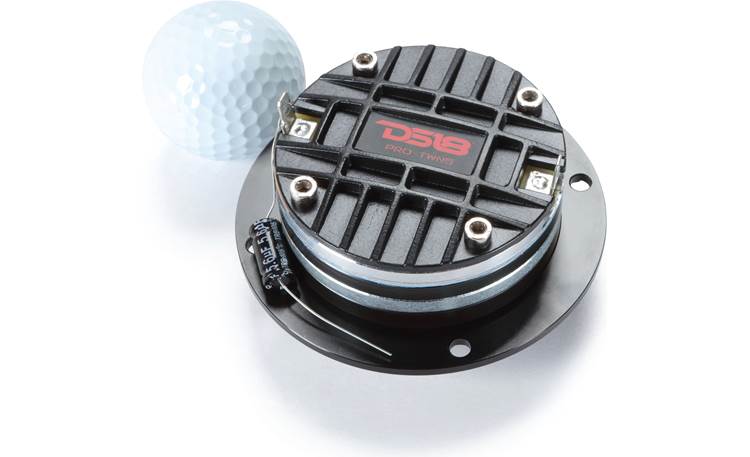

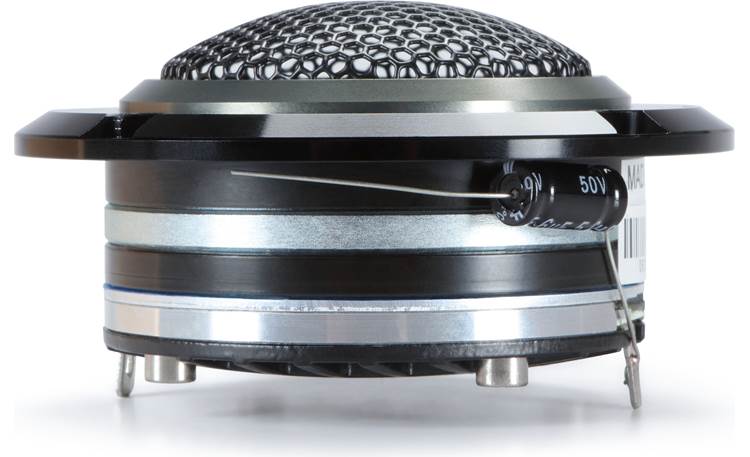

Crossover: The included 5.6 μF capacitor is a 1st order high-pass crossover (6 dB/octave slope) and must be used if no other crossover is added; the crossover point is approximately 7.1 kHz. The capacitor is wired in-line with the positive input of the tweeter (soldered to the positive terminal) and measures approximately ⅜" diameter x ¾" long. When used, the capacitor should be insulated with heat shrink. When using an outboard active crossover DS18 recommends a crossover point of 2 kHz.
